F-LINE-PD1190RFSI840M9P0500 / 0627885SI420
Product Description
Pendant luminaire from the F-LINE product family. Optical control via Lens, beam pattern symmetric, wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 5100 lm in light colour 840, adjustable luminous flux: in steps. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of . Luminous flux in steps adjustable from 2100 - 5100 lm. Housing made of Steel, silver, protection rating IP20. With electronic electrical component xFlex. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0627885SI420 |
| GTIN | 4029299574463 |
General
| Product category | Pendant luminaire |
| Range of application | Office |
Dimensions
| Dimension L | 1190 mm |
| Dimension B | 200 mm |
| Dimension H | 33 mm |
| Dimension AE max | 1120 mm |
| Dimension AE min | 840 mm |
| Net weight | 4.100 kg |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
Housing
| Colour | silver |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–40 °C |
| Housing material | Steel |
| Cover material | PMMA clear |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 31.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Lens |
| Reflector | high gloss |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |

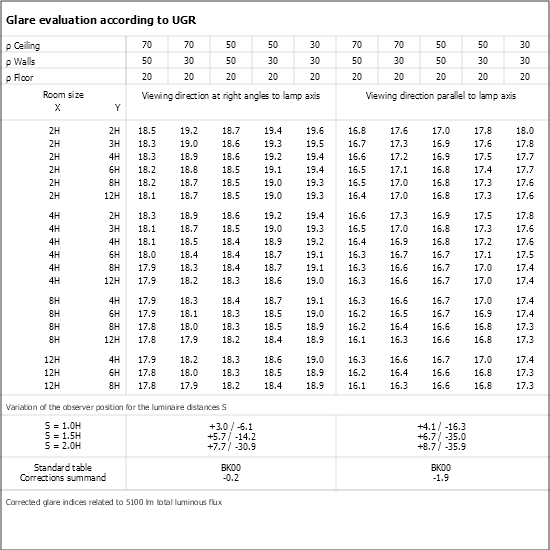

| UGR class | ≤ 19 |
| Rated luminous flux | 5100 lm |
| Maximum rated luminous flux | 2100 - 5100 lm |
| Luminaire efficiency | 165 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 82.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
