F-LINE-PD1550DAWS840M9P0700 / 0637886
Product Description
Pendant luminaire from the F-LINE product family. Optical control via Lens, beam pattern symmetric, wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 6790 lm in light colour 840, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of . Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0637886 |
| GTIN | 4029299575187 |
General
| Product category | Pendant luminaire |
| Range of application | Office |
Dimensions
| Dimension L | 1550 mm |
| Dimension B | 200 mm |
| Dimension H | 33 mm |
| Dimension AE max | 1490 mm |
| Dimension AE min | 1140 mm |
| Net weight | 4.700 kg |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–40 °C |
| Housing material | Steel |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 41.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Lens |
| Reflector | high gloss |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |

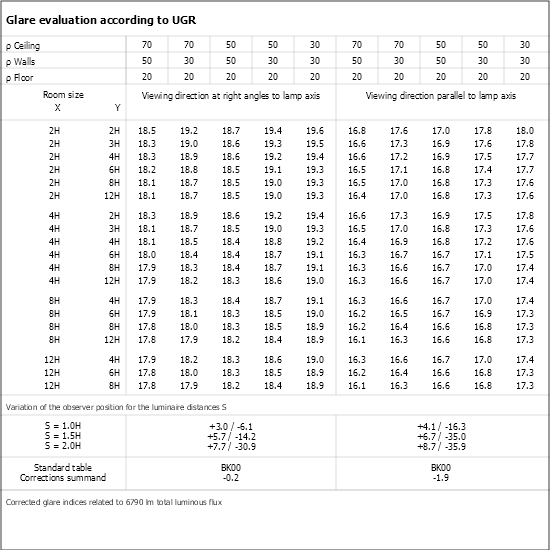

| UGR class | ≤ 19 |
| Rated luminous flux | 6790 lm |
| Luminaire efficiency | 166 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 82.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
| 0209460 - F-LINE-P-VS-140 5-POL ND WS | Luminaire connector F-LINE-P 140 mm white, including through wiring ND, 1 piece |
|
|
| 0209460SI - F-LINE-P-VS-140 5-POL-ND SI | Luminaire connector F-LINE-P 140 mm silver, including through wiring ND, 1 piece |
|
|
| 0209461 - F-LINE-P-VS-140 5-POL DA WS | Luminaire connector F-LINE-P 140 mm white, including through wiring DA, 1 piece |
|
|
| 0209461SI - F-LINE-P-VS-140 5-POL DA SI | Terminal cover for F-LINE-P, 5-core, silver, 1 piece |
|
|
| 0209462 - ZKA-F-LINE-P WS | Terminal cover for F-LINE-P, white, 1 piece |
|
|
| 0209462SI - ZKA-F-LINE-P SI | Terminal cover for F-LINE-P, silver, 1 piece |
|
|
0203579 -
ZAL 3X0.75/1.5M-T
|
Connection cable transparent, 3x 0.75 mm², 1.5 m |
|
|
|
0203580 -
ZAL 5X0.75/1.5M-T
|
Connection cable transparent, 5x 0.75 mm², 1.5 m |
|
|
|
0207977 -
ZAL 3X1.5/1.5M-T
|
Connection cable transparent, 3x 1.5 mm², 1.5 m |
|
|
|
0207977/L300 -
ZAL 3X1.5/3.0M-T
|
Transparent connecting cable, 3x1.5mm², 3.0 m. |
|
|
|
0207978 -
ZAL 5X1.5/1.5M-T
|
Connection cable transparent, 5x 1.5 mm², 1.5 m |
|
|
|
0207979 -
ZKF 3X0.75/1.0M
|
Cable guide C-profile, for dia. 4-5mm, 1 metre, transparent |
|
|
0203583 -
ZSPT2Z 295 SEILPENDEL TRAPEZ
|
Y-wire pendant mounting, ceiling fixture, cylinder, 1.5 m, 1 piece |
|
|
0204332 -
ZDBE
|
Canopy, angular, white, for wire pendant mounting Y-wire pendant, ZUSP and UKNS |
|
|
0204332SI -
ZDBE-SI
|
Rect. canopy silver, for Y wire pendant, ZUSP and UKNS |
|
|
0202897 -
ZSPT2ZE 295 BALDA.+SEILP. 1.5M
|
Y' wire pendant, rectangular canopy white, 1.5m, 1 pc |
|
|
0202897SI -
ZSPT2ZE 295 BALDA.+SP. 1.5M-SI
|
Y wire pendant, rect. canopy, silver, 1.5m, 1pc |
|
|
|
0207976 -
ZSPT2ZE 190 BALDA.+SEILP. 1.5M
|
Y' wire pendant, rectangular canopy, 1.5m, 1 pc |
|
|
|
0207976SI -
ZSPT2ZE 190 BALDA.+SP. 1.5M-SI
|
Y' wire pendant, rectangular canopy silver, 1.5m, 1 pc |
|
|
0207975 -
ZSPT2ZH 190 BALDA.+SEILP. 1.5M
|
Y' wire pendant, domed canopy, white, 1.5m, 1 pc |
|
|
0207975SI -
ZSPT2ZH 190 BALDA.+SP. 1.5M-SI
|
Y' wire pendant, domed canopy, silver, 1.5m, 1 pc |
|
|
|
0202896 -
ZSPT2ZH 295 BALDA.+SEILP. 1.5M
|
Y' wire pendant, domed canopy, white, 1.5m, 1 pc |
|
|
|
0202896SI -
ZSPT2ZH 295 BALDA.+SP. 1.5M-SI
|
Y' wire pendant, domed canopy, silver, 1.5m, 1 pc |
|
|
