F-LINE-RT1X115/20ND-SM-SET / 0650580//673683
Product Description
Pendant luminaire from the F-LINE product family. Optical control via Louvre, beam pattern symmetric, wide beam, light emission direct/indirect. Lamps R-TUBE installed, Exchange by end customer possible. The luminaire generates a rated luminous flux of 2620 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. The luminaire is suitable for pendant mounting with wire pendant. Including wire pendant, length 1.5 metres ZSPT2Z 190 for F-LINE-RT1..., or ZSPT2Z 295 for F-LINE-RT2...Mains cable, length 1.5 metres with transparent sheath pre-assembled. Continuous luminaire mounting possible with F-LINE-VS luminaire connector accessory. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0650580//673683 |
| GTIN | 4029299472035 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office |
Dimensions
| Dimension L | 1253 mm |
| Dimension B | 150 mm |
| Dimension H | 37 mm |
| Dimension AE max | 1190 mm |
| Dimension AE min | 840 mm |
| Net weight | 3.300 kg |
Mounting
| Mounting type | Pendant | Attachment |
| Mounting position | Ceiling |
| Connection type | open end |
| Number of poles | 3 |
| Conductor cross-section | 0.75 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Steel |
| Cover material | Aluminium |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 21.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Louvre |
| Light emission | direct/indirect |
| Light distribution | symmetric |
| Beam characteristics | wide beam |

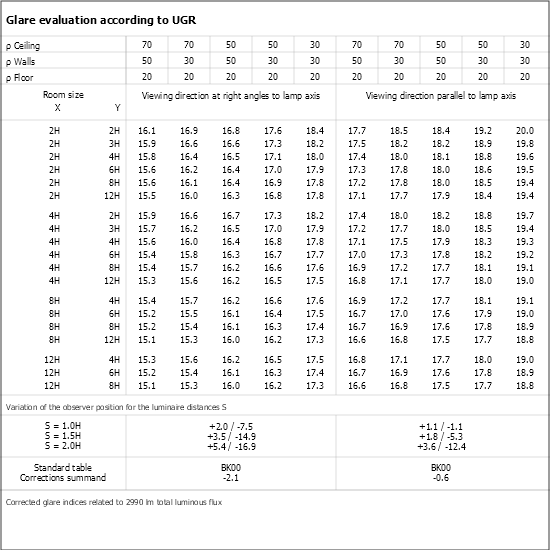

| UGR class | ≤ 19 |
| Rated luminous flux | 2620 lm |
| Luminaire efficiency | 125 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0207979 -
ZKF 3X0.75/1.0M
|
Cable guide C-profile, for dia. 4-5mm, 1 metre, transparent |
|
|
0204332 -
ZDBE
|
Canopy, angular, white, for wire pendant mounting Y-wire pendant, ZUSP and UKNS |
|
|
|
0207977 -
ZAL 3X1.5/1.5M-T
|
Connection cable transparent, 3x 1.5 mm², 1.5 m |
|
|
|
0203580 -
ZAL 5X0.75/1.5M-T
|
Connection cable transparent, 5x 0.75 mm², 1.5 m |
|
|
|
0207978 -
ZAL 5X1.5/1.5M-T
|
Connection cable transparent, 5x 1.5 mm², 1.5 m |
|
|
0207972SI -
F-LINE-VSL 1../2.. SI
|
L-sh. lum. connector f. F-LINE, silver, pendant m. only |
|
|
|
0207972 -
F-LINE-VSL 1../2..
|
L-sh. lum. connector f. F-LINE, white, pendant m. only |
|
|
0208095SI -
F-LINE-VS-D-SI
|
Lum. connector f. F-LINE, 100mm, silver, ceiling surface m., 1 pc |
|
|
0207971SI -
F-LINE-VS-SI
|
Lum. connector f. F-LINE, 100mm, silver, pendant m. only, 1 pc |
|
|
|
0208095 -
F-LINE-VS-D
|
Lum. connector f. F-LINE, 100mm, white, ceiling surface m., 1 pc |
|
|
|
0207971 -
F-LINE-VS
|
Lum. connector f. F-LINE, 100mm, white, pendant m. only, 1 pc |
|
|
0204332SI -
ZDBE-SI
|
Rect. canopy silver, for Y wire pendant, ZUSP and UKNS |
|
|
0207973SI -
F-LINE-VST 1../2.. SI
|
T-sh. lum. connector f. F-LINE, silver, pendant m. only |
|
|
|
0207973 -
F-LINE-VST 1../2..
|
T-sh. lum. connector f. F-LINE, white, pendant m. only |
|
|
| 0201255 - ZIDV-F-LINE 28/3/1.5 | Through wiring F-LINE .28, 3x1.5mm², L=1.7m, max.10A |
|
|
| 0201256 - ZIDV-F-LINE 28/5/1.5 DIM | Through wiring F-LINE .28, 5x1.5mm², L=1.7m, max.10A |
|
|
| 0201253 - ZIDV-F-LINE 35/3/1.5 | Through wiring F-LINE .35, 3x1.5mm², L=2.0m, max.10A |
|
|
| 0201254 - ZIDV-F-LINE 35/5/1.5 DIM | Through wiring F-LINE .35, 5x1.5mm², L=2.0m, max.10A |
|
|
0204003 -
ZRO RAHMENÖFFNER
|
Tool for easy opening of the light frame |
|
|
|
0207977/L300 -
ZAL 3X1.5/3.0M-T
|
Transparent connecting cable, 3x1.5mm², 3.0 m. |
|
|
0207974SI -
F-LINE-VSK 1../2.. SI
|
X-sh. lum. connector f. F-LINE, silver, pendant m. only |
|
|
|
0207974 -
F-LINE-VSK 1../2..
|
X-sh. lum. connector f. F-LINE, white, pendant m. only |
|
|
0203587 -
ZSPT2Z 190 SEILPENDEL TRAPEZ
|
Y-wire pendant mounting, ceiling fixture, cylinder, 1.5 m, 1 piece |
|
|
0207975SI -
ZSPT2ZH 190 BALDA.+SP. 1.5M-SI
|
Y' wire pendant, domed canopy, silver, 1.5m, 1 pc |
|
|
0207975 -
ZSPT2ZH 190 BALDA.+SEILP. 1.5M
|
Y' wire pendant, domed canopy, white, 1.5m, 1 pc |
|
|
0207976SI -
ZSPT2ZE 190 BALDA.+SP. 1.5M-SI
|
Y' wire pendant, rectangular canopy silver, 1.5m, 1 pc |
|
|
0207976 -
ZSPT2ZE 190 BALDA.+SEILP. 1.5M
|
Y' wire pendant, rectangular canopy, 1.5m, 1 pc |
|
|
