F-LINE-RT2X115/20ND-SM-SET / 0650581//673683
Product Description
Pendant luminaire from the F-LINE product family. Optical control via Louvre, beam pattern symmetric, wide beam, light emission direct/indirect. Lamps R-TUBE installed, Exchange by end customer possible. The luminaire generates a rated luminous flux of 5230 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. The luminaire is suitable for pendant mounting with wire pendant. Including wire pendant, length 1.5 metres ZSPT2Z 190 for F-LINE-RT1..., or ZSPT2Z 295 for F-LINE-RT2...Mains cable, length 1.5 metres with transparent sheath pre-assembled. Continuous luminaire mounting possible with F-LINE-VS luminaire connector accessory. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0650581//673683 |
| GTIN | 4029299472042 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office |
Dimensions
| Dimension L | 1253 mm |
| Dimension B | 204 mm |
| Dimension H | 37 mm |
| Dimension AE max | 1190 mm |
| Dimension AE min | 840 mm |
| Net weight | 3.930 kg |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
| Connection type | open end |
| Number of poles | 3 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Steel |
| Cover material | Aluminium |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 42.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Louvre |
| Light emission | direct/indirect |
| Light distribution | symmetric |
| Beam characteristics | wide beam |

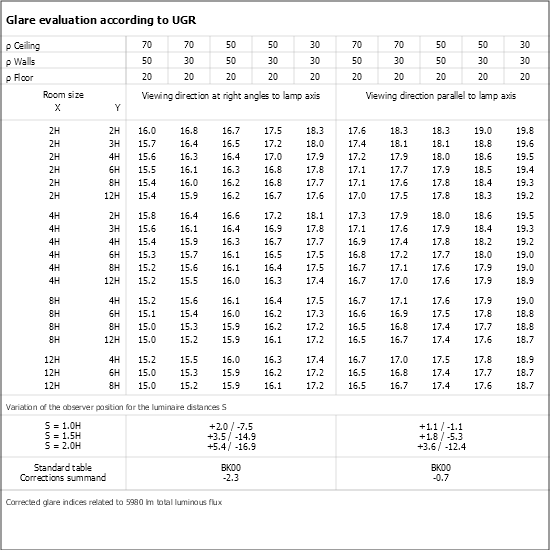

| UGR class | ≤ 19 |
| Rated luminous flux | 5230 lm |
| Luminaire efficiency | 125 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Farbwiedergabeindex R9 | 0 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
Connectivity and System Integration
| Item number - Designation | Product Description | Download | Wishlist |
0207971 -
F-LINE-VS
|
F-LINE luminaire connector, 100 mm, white, for pendant mounting, 1 piece |
|
|
|
0207971SI -
F-LINE-VS-SI
|
F-LINE luminaire connector, 100 mm, silver, for pendant mounting, 1 piece |
|
|
0208095 -
F-LINE-VS-D
|
F-LINE luminaire connector, 100 mm, white, for ceiling mounting, 1 piece |
|
|
|
0208095SI -
F-LINE-VS-D-SI
|
F-LINE luminaire connector, 100 mm, silver, for ceiling mounting, 1 piece |
|
|
0207974 -
F-LINE-VSK 1../2..
|
X-shaped luminaire connector for F-LINE luminaires, white, suitable for pendant mounting only |
|
|
|
0207974SI -
F-LINE-VSK 1../2.. SI
|
X-shaped luminaire connector for F-LINE, silver, for pendant mounting only |
|
|
0207972 -
F-LINE-VSL 1../2..
|
L-shaped luminaire connector for F-LINE, white, for pendant mounting only |
|
|
|
0207972SI -
F-LINE-VSL 1../2.. SI
|
L-shaped luminaire connector for F-LINE, silver, for pendant mounting only |
|
|
0207973 -
F-LINE-VST 1../2..
|
T-shaped luminaire connector for F-LINE, white, for pendant mounting only |
|
|
|
0207973SI -
F-LINE-VST 1../2.. SI
|
T-shaped luminaire connector for F-LINE, silver, for pendant mounting only |
|
|
Electrical connection
| Item number - Designation | Product Description | Download | Wishlist |
0207977 -
ZAL 3X1.5/1.5M-T
|
Transparent connection cable, 3 x 1.5 mm², 1.5 m |
|
|
|
0207977/L300 -
ZAL 3X1.5/3.0M-T
|
Transparent connection cable, 3 x 1.5 mm², 3.0 m |
|
|
|
0207979 -
ZKF 3X0.75/1.0M
|
C-profile cable duct, for 4–5 mm diameter, 1 m, transparent |
|
|
|
0207978 -
ZAL 5X1.5/1.5M-T
|
Transparent connection cable, 5 x 1.5 mm², 1.5 m |
|
|
|
0203580 -
ZAL 5X0.75/1.5M-T
|
Transparent connection cable, 5 x 0.75 mm², 1.5 m |
|
|
| 0201255 - ZIDV-F-LINE 28/3/1.5 | Through wiring for F-LINE .28, length 1700 mm, 3 x 1.5 mm², maximum 10 A for luminaires up to approx. 1500 mm in length |
|
|
| 0201256 - ZIDV-F-LINE 28/5/1.5 DIM | Through wiring for F-LINE .28, length 1700 mm, 5 x 1.5 mm², maximum 10 A for luminaires up to approx. 1500 mm in length |
|
|
| 0201253 - ZIDV-F-LINE 35/3/1.5 | Through wiring for F-LINE .35, length 2000 mm, 3 x 1.5 mm², maximum 10 A for luminaires up to approx. 1800 mm in length |
|
|
| 0201254 - ZIDV-F-LINE 35/5/1.5 DIM | Through wiring for F-LINE .35, length 2000 mm, 5 x 1.5 mm², maximum 10 A for luminaires up to approx. 1800 mm in length |
|
|
Mounting and Fastening
| Item number - Designation | Product Description | Download | Wishlist |
0203583 -
ZSPT2Z 295 SEILPENDEL TRAPEZ
|
Y-wire pendant, ceiling fixture, cylinder, 1.5 m, 1 piece |
|
|
0202897 -
ZSPT2ZE 295 BALDA.+SEILP. 1.5M
|
Y-wire pendant, square canopy, 1.5 m, 1 piece |
|
|
0202897SI -
ZSPT2ZE 295 BALDA.+SP. 1.5M-SI
|
Y-wire pendant, square canopy, silver, 1.5 m, 1 piece |
|
|
0202896 -
ZSPT2ZH 295 BALDA.+SEILP. 1.5M
|
Y-wire pendant, semi-circular canopy, 1.5 m, 1 piece |
|
|
0202896SI -
ZSPT2ZH 295 BALDA.+SP. 1.5M-SI
|
Y-wire pendant, semi-circular canopy, silver, 1.5 m, 1 piece |
|
|
0204332 -
ZDBE
|
Square canopy, white, for wire pendant mounting, ZUSP and UKNS |
|
|
0204332SI -
ZDBE-SI
|
Square canopy, silver, for the Y-wire pendant mounting, ZUSP and UKNS |
|
|
Tool
| Item number - Designation | Product Description | Download | Wishlist |
0204003 -
ZRO RAHMENÖFFNER
|
Tool for easily opening the light frame |
|
|
| Item number - Bezeichnung | Length | Colour temperature | Characteristic | ||
| 0206933LF - RT360 115-840M0300 LF | 1143 | 4000 K | matt |
|
|
