FLAKE-PDI100DAFWS830DPO0400 / 0637724AH
Product Description
Pendant luminaire from the FLAKE product family. Optical control via Cover microprismatic, beam pattern symmetric, extremely wide beam, light emission direct/indirect. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 3800 lm in light colour 830, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. The luminaires are suitable for pendant mounting with wire pendant, length 1.5 m ZSPT2Z 190 (see accessories, article number: 0203587). Mains cable, length 1.5 m, with transparent sheath (to be ordered separately). Straight connectors, optionally with sensor, are available for the production of continuous rows (see accessories). With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0637724AH |
| GTIN | 4029299554311 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office |
Dimensions
| Dimension L | 995 mm |
| Dimension B | 150 mm |
| Dimension H | 42 mm |
| Dimension AE max | 860 mm |
| Dimension AE min | 660 mm |
| Dimension K1 | 344 mm |
| Dimension K2 | 38 mm |
| Net weight | 4.200 kg |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Impact resistance | IK07 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Steel |
| Cover material | PC structured |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 32.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Cover microprismatic |
| Light emission | direct/indirect |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 3800 lm |
| Luminaire efficiency | 119 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
| 0209264 - ZIDV-FLAKE 150/3/1.5 | Internal through-wiring, 3x1.5 mm², for FLAKE-PDI150 + FLAKE-VS |
|
|
| 0209265 - ZIDV-FLAKE 150/5/1.5 | Internal through-wiring, 5x1.5 mm², for FLAKE-PDI150 + FLAKE-VS |
|
|
| 0209266 - ZIDV-FLAKE 100/3/1.5 | Internal through-wiring, 3x1.5 mm², for FLAKE-PDI100 + FLAKE-VS |
|
|
| 0209267 - ZIDV-FLAKE 100/5/1.5 | Internal through-wiring, 5x1.5 mm², for FLAKE-PDI100 + FLAKE-VS |
|
|
0203587 -
ZSPT2Z 190 SEILPENDEL TRAPEZ
|
Y-wire pendant mounting, ceiling fixture, cylinder, 1.5 m, 1 piece |
|
|
0209263AH -
FLAKE-ED-FWS
|
FLAKE end cap, die-cast aluminium, white, 1 unit |
|
|
0209259AH -
FLAKE-VS-DA-SEN-FWS
|
Luminaire connector FLAKE with APCON sensor, 150 mm, white, 1 unit |
|
|
| 0209259AH428 - FLAKE-VS-DA-SEN-TW-FWS | Luminaire connector FLAKE-TW 150 mm, white, 1 unit, APCON sensor |
|
|
| 0209261AH428 - FLAKE-EWM-SEN-TW-FWS | FLAKE-TW extension module, white, 1 unit, APCON sensor |
|
|
0209261AH -
FLAKE-EWM-SEN-FWS
|
FLAKE extension module with integrated APCON sensor, white, 1 unit |
|
|
0207976 -
ZSPT2ZE 190 BALDA.+SEILP. 1.5M
|
Y' wire pendant, rectangular canopy, 1.5m, 1 pc |
|
|
0207976SI -
ZSPT2ZE 190 BALDA.+SP. 1.5M-SI
|
Y' wire pendant, rectangular canopy silver, 1.5m, 1 pc |
|
|
0209260AH -
FLAKE-VS-CDH-FWS
|
Luminaire connector FLAKE with APCON CDH module, 150 mm, white, 1 unit |
|
|
| 0209260AH428 - FLAKE-VS-CDH-TW-FWS | Luminaire connector FLAKE-TW 150 mm, white, 1 unit, APCON CDH module |
|
|
0204332 -
ZDBE
|
Canopy, angular, white, for wire pendant mounting Y-wire pendant, ZUSP and UKNS |
|
|
0209262AH -
FLAKE-EWM-CAS-FWS
|
FLAKE extension module with Casambi module, white, 1 unit |
|
|
| 0209262AH428 - FLAKE-EWM-CAS-TW-FWS | FLAKE-TW extension module, white, 1 unit, APCON active module |
|
|
0203580 -
ZAL 5X0.75/1.5M-T
|
Connection cable transparent, 5x 0.75 mm², 1.5 m |
|
|
|
0203579 -
ZAL 3X0.75/1.5M-T
|
Connection cable transparent, 3x 0.75 mm², 1.5 m |
|
|
0209258AH -
FLAKE-VS FWS
|
Luminaire connector FLAKE, 150 mm, white, 1 unit |
|
|
Pendant luminaire from the FLAKE product family. Optical control via Cover microprismatic, beam pattern symmetric, extremely wide beam, light emission direct/indirect. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 3800 lm in light colour 830, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. The luminaires are suitable for pendant mounting with wire pendant, length 1.5 m ZSPT2Z 190 (see accessories, article number: 0203587). Mains cable, length 1.5 m, with transparent sheath (to be ordered separately). Straight connectors, optionally with sensor, are available for the production of continuous rows (see accessories). With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0637724AH |
| GTIN | 4029299554311 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office |
Dimensions
| Dimension L | 995 mm |
| Dimension B | 150 mm |
| Dimension H | 42 mm |
| Dimension AE max | 860 mm |
| Dimension AE min | 660 mm |
| Dimension K1 | 344 mm |
| Dimension K2 | 38 mm |
| Net weight | 4.200 kg |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Impact resistance | IK07 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Steel |
| Cover material | PC structured |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 32.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Cover microprismatic |
| Light emission | direct/indirect |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 3800 lm |
| Luminaire efficiency | 119 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

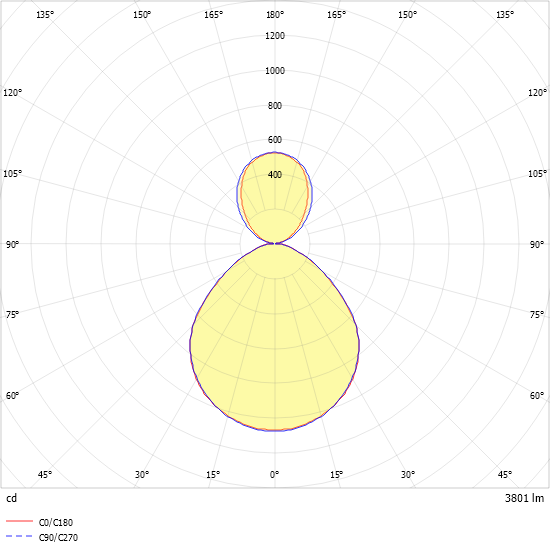

Light distribution curve
