FPL3-EQ0622NDWS840MPS0500 / 0822990
Product Description
Ceiling light from the FPL product family. Optical control via Cover microprismatic, beam pattern symmetric, wide beam, light emission direct. Lamps LED-M installed, possible. The luminaire generates a rated luminous flux of 4600 lm in light colour 840, adjustable luminous flux: in steps. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Luminous flux in steps adjustable from 3600 - 4600 lm. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP20. Lay-in mounting in ceiling systems with visible trunking all round and inserted ceiling tiles. No additional fixing accessories are required for lay-in mounting. Pendant mounting with automatic wire clamps, wire rope d=1.2mm, L=1.5m (accessories to be ordered separately). Recessed and surface mounting with corresponding accessories (accessories to be ordered separately). Attention! Luminaire is not compatible with the OSRAM DALI ACU BT light control. With electronic electrical component xFlex. Replacement by specialist. Rated voltage 220 - 240 V AC 50 - 60 Hz.
Order Information
| Item number | 0822990 |
| GTIN | 4029299566604 |
General
| Product category | Ceiling light |
| Range of application | Office | Education | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension L | 620 mm |
| Dimension B | 620 mm |
| Dimension H | 13 mm |
| Net weight | 4.100 kg |
Mounting
| Mounting type | Insert |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| System dimension | 625 x 625 |
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Aluminium |
| Cover material | PMMA structured |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 50–60 Hz |
| Rated power | 33.0 W |
| Protection class | II |
Lighting technology
| Light distributor | Cover microprismatic |
| Glare control | Microprismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 4600 lm |
| Maximum rated luminous flux | 3600 - 4600 lm |
| Luminaire efficiency | 139 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Farbwiedergabeindex R9 | 0 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG0 |
| Rated life L80B50 (tq = 25 °C) | 70.000 h |
| Rated life L80B10 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0206909 -
ZSP-FPL-EQ 1.5M
|
Y’ wire pendant FPL with ceiling fixture, 4xcarabiner, 1.5 m, (1/lum.) |
|
|
0208991 -
ZBS-AR FPL-EQ 622
|
Surface mounting frame for FPL-EQ 622 |
|
|
0208996 -
ZBS-ER-EQ 622
|
Mounting frame for FPL-EQ 622 |
|
|
| 0209375 - ZEL-FPL3-VE-I-ND | Ersatztreiber FPL3, nicht dimmbar, 1 Stk. |
|
|
| 0209394 - ZBS-EKL FPL3-EQ | Installation bracket exclusively for FPL3-EQ, 1 set |
|
|
| 0209395 - ZEL-FPL-EM-BOX-ND | 3 W power supply box for emergency light |
|
|
Ceiling light from the FPL product family. Optical control via Cover microprismatic, beam pattern symmetric, wide beam, light emission direct. Lamps LED-M installed, possible. The luminaire generates a rated luminous flux of 4600 lm in light colour 840, adjustable luminous flux: in steps. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Luminous flux in steps adjustable from 3600 - 4600 lm. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP20. Lay-in mounting in ceiling systems with visible trunking all round and inserted ceiling tiles. No additional fixing accessories are required for lay-in mounting. Pendant mounting with automatic wire clamps, wire rope d=1.2mm, L=1.5m (accessories to be ordered separately). Recessed and surface mounting with corresponding accessories (accessories to be ordered separately). Attention! Luminaire is not compatible with the OSRAM DALI ACU BT light control. With electronic electrical component xFlex. Replacement by specialist. Rated voltage 220 - 240 V AC 50 - 60 Hz.
Order Information
| Item number | 0822990 |
| GTIN | 4029299566604 |
General
| Product category | Ceiling light |
| Range of application | Office | Education | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension L | 620 mm |
| Dimension B | 620 mm |
| Dimension H | 13 mm |
| Net weight | 4.100 kg |
Mounting
| Mounting type | Insert |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| System dimension | 625 x 625 |
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Aluminium |
| Cover material | PMMA structured |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 50–60 Hz |
| Rated power | 33.0 W |
| Protection class | II |
Lighting technology
| Light distributor | Cover microprismatic |
| Glare control | Microprismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 4600 lm |
| Maximum rated luminous flux | 3600 - 4600 lm |
| Luminaire efficiency | 139 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG0 |
| Rated life L80B50 (tq = 25 °C) | 70.000 h |
| Rated life L80B10 (tq = 25 °C) | 50.000 h |
Download Center

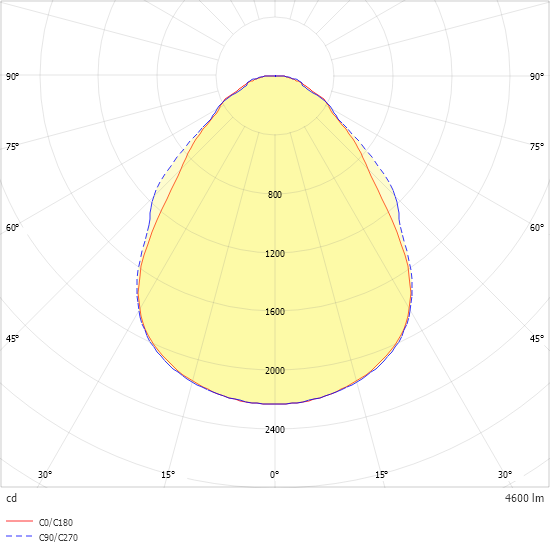

Light distribution curve
