FPL4-EE1545DAWS830840MPS0600 | 0833025
Product Description
Ceiling light from the FPL product family. Optical control via Cover microprismatic, beam pattern symmetric, wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 5000 lm in light colour 830/840. The long LED service life enables long-term use with consistent lighting quality. High light quality thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP20 IP44 room side. Lay-in mounting in ceiling systems with visible trunking all round and inserted ceiling tiles. No additional fixing accessories are required for lay-in mounting. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires.
They are suitable for use in sales, storage and administrative areas for packaged food.
Order Information
| Item number | 0833025 |
| GTIN | 4029299611359 |
| Delivery promise |
2 working days (ex warehouse Jungingen)
i
The specified delivery promise applies to standard commercial quantities. It may vary for larger purchase quantities. |
General
| Product category | Ceiling light |
| Range of application | Office | Education | Retail | Food |
| Range of application HACCP | Packaged food |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1545 mm |
| Dimension B | 310 mm |
| Dimension H | 28 mm |
| Dimension B4 | 56 mm |
| Dimension H4 | 30 mm |
| Dimension L4 | 205 mm |
| Net weight | 2.990 kg |
Mounting
| Mounting type | Insert |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.75–2.5 mm² |
| Adjustability | static |
Housing
| System dimension | 312,5 x 1550 |
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 | IP44 room side |
| Impact resistance | IK05 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA structured |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 35.0 W |
| Protection class | II |
Lighting technology
| Light distributor | Cover microprismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 5000 lm |
| Maximum rated luminous flux | 900 - 6100 lm |
| Luminaire efficiency | 143 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Farbwiedergabeindex R9 | 0 |
| Colour temperature | 3000 K | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 65.000 h |
| Rated life L80B10 (tq = 25 °C) | 60.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
Electrical connection
| Item number - Designation | Product Description | Download | Wishlist |
| 0209470 - ZEL-SP-TD | Surge protection for touch-dimming applications |
|
|
Mounting and Fastening
| Item number - Designation | Product Description | Download | Wishlist |
0209377 -
ZBS-ER-EE 1545
|
Mounting frame for FPL-EE 1545, white |
|
|
0209527 -
ZBS-AR-EE 1545
|
Mounting frame for FPL-EE 1545, white |
|
|
0209535 -
ZBS-EKL FPL4
|
Mounting brackets for FPL4 recessed light, 1 set, 4 pieces |
|
|
Safety and Security
| Item number - Designation | Product Description | Download | Wishlist |
| 0209560 - ZEL-FPL-EM-BOX-CS | 3 W emergency light supply unit with self-test, 3-hour runtime, ColourSwitch |
|
|
| 0209556 - ZBS-AS FPL4 | Retaining plates for FPL4 recessed luminaire for site-supplied fall protection |
|
|
Spare parts
| Item number - Designation | Product Description | Download | Wishlist |
| 0209518 - ZEL-FPL4-VE-I-DA-CS | Replacement driver for FPL4 DALI and ColourSwitch models |
|
|
Light control
| Item number - Designation | Product Description | Download | Wishlist |
0209500
-
APCON BLE SOLUTION PACKAGE ONE
|
Bluetooth Low Energy / BLE room solution package for connecting up to 20 dimmable Device Type 6 (DT6) and Tunable White DALI luminaires Device Type 8 (DT8). Consisting of an APCON hybrid box and a combined light and presence sensor DALI-2 Hybrid box for recessed ceiling installation or surface mounting. Light and presence sensor for recessed ceiling mounting. 14x break-out cable entries M16/20 and 4x double membrane connectors M20 included. Bluetooth Low Energy 2.4-2.483 GHz. The maximum cable length of the push-button input is 5 m. Connection of a daylight sensor and many presence sensors possible up to the power limit of the DALI supply. Room solution package featuring presence detection and daylight-dependent control, as well as the option to connect a push-button switch for switching the connected luminaires on and off and dimming them. Easy-to-maintain broadcast mode; all luminaires behave in the same way. Can be combined and expanded with other control elements such as push-button switches, Push-button couplers and sensors. Configuration and operation via the Casambi app. Daily, weekly and annual schedules for controlling the connected luminaires can be configured. Depending on the luminaire model, connected Tunable White luminaires can be controlled directly to the selected colour temperature within the range of 2700–6500 K. Furthermore, a circadian daylight profile (Human Centric Lighting – HCL) can be individually configured and stored within this range, which the connected luminaires then follow in unison. |
|
|
Ceiling light from the FPL product family. Optical control via Cover microprismatic, beam pattern symmetric, wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 5000 lm in light colour 830/840. The long LED service life enables long-term use with consistent lighting quality. High light quality thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP20 IP44 room side. Lay-in mounting in ceiling systems with visible trunking all round and inserted ceiling tiles. No additional fixing accessories are required for lay-in mounting. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires.
They are suitable for use in sales, storage and administrative areas for packaged food.
Order Information
| Item number | 0833025 |
| GTIN | 4029299611359 |
General
| Product category | Ceiling light |
| Range of application | Office | Education | Retail | Food |
| Range of application HACCP | Packaged food |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1545 mm |
| Dimension B | 310 mm |
| Dimension H | 28 mm |
| Dimension B4 | 56 mm |
| Dimension H4 | 30 mm |
| Dimension L4 | 205 mm |
| Net weight | 2.990 kg |
Mounting
| Mounting type | Insert |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.75–2.5 mm² |
| Adjustability | static |
Housing
| System dimension | 312,5 x 1550 |
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 | IP44 room side |
| Impact resistance | IK05 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA structured |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 35.0 W |
| Protection class | II |
Lighting technology
| Light distributor | Cover microprismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 5000 lm |
| Maximum rated luminous flux | 900 - 6100 lm |
| Luminaire efficiency | 143 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 65.000 h |
| Rated life L80B10 (tq = 25 °C) | 60.000 h |
Download Center

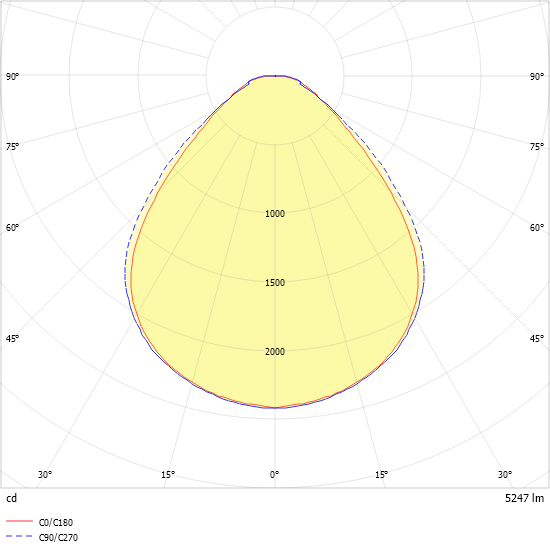

Light distribution curve
