H140 CURVE-DI 100DASI-800OS830 | SPN0000092SI
Product Description
Pendant luminaire from the H140-PROFIL product family. H-profile luminaire, curved, made of extruded aluminium profile direct-indirect beam. Lamp for direct component mounted in the underside of the H-profile. Cover with opal panel for homogeneous light emission. Lamp for indirect component mounted in the top of the H-profile.
Order Information
| Item number | SPN0000092SI |
| GTIN | 4029299501032 |
| Delivery commitment | on demand |
General
| Product category | Pendant luminaire |
| Product sub-category | Curve |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1000 mm |
| Dimension B | 100 mm |
| Dimension H | 140 mm |
| Net weight | 11.000 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
Housing
| Colour | silver |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Housing material | Aluminium |
| Surface treatment of housing | |
| Cover material | PMMA opal |
Electrical version
| Type of control | DALI |
| Nominal voltage | 230–240 V, 50–60 Hz |
| Rated power | 44.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct/indirect |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 4050 lm |
| Luminaire efficiency | 92 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Farbwiedergabeindex R9 | |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
Pendant luminaire from the H140-PROFIL product family. H-profile luminaire, curved, made of extruded aluminium profile direct-indirect beam. Lamp for direct component mounted in the underside of the H-profile. Cover with opal panel for homogeneous light emission. Lamp for indirect component mounted in the top of the H-profile.
Order Information
| Item number | SPN0000092SI |
| GTIN | 4029299501032 |
General
| Product category | Pendant luminaire |
| Product sub-category | Curve |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1000 mm |
| Dimension B | 100 mm |
| Dimension H | 140 mm |
| Net weight | 11.000 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
Housing
| Colour | silver |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Housing material | Aluminium |
| Cover material | PMMA opal |
Electrical version
| Type of control | DALI |
| Nominal voltage | 230–240 V, 50–60 Hz |
| Rated power | 44.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct/indirect |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 4050 lm |
| Luminaire efficiency | 92 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
Download Center

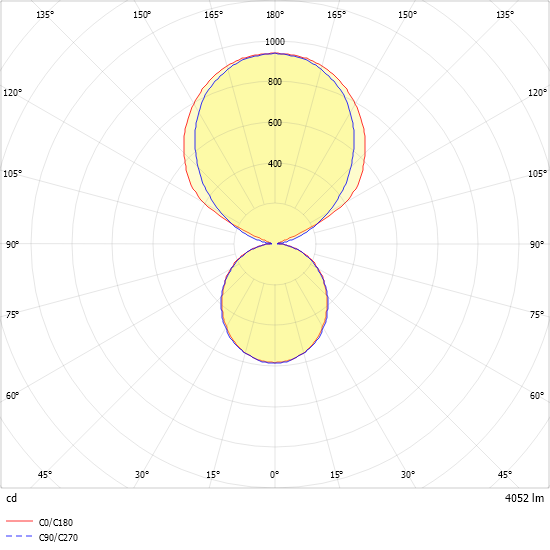

Light distribution curve
