H140-K-5000-4100/840-OS-DA-SI / SPN0000136SI
Product Description
Pendant luminaire from the H140-PROFIL product family. Ring-shaped luminaire housing made of extruded aluminium profile with direct component LED using mid power LED modules. Opal cover on the underside with stepped milling for homogenous illumination without direct view of LED units.
Order Information
| Item number | SPN0000136SI |
| GTIN | 4029299143546 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |

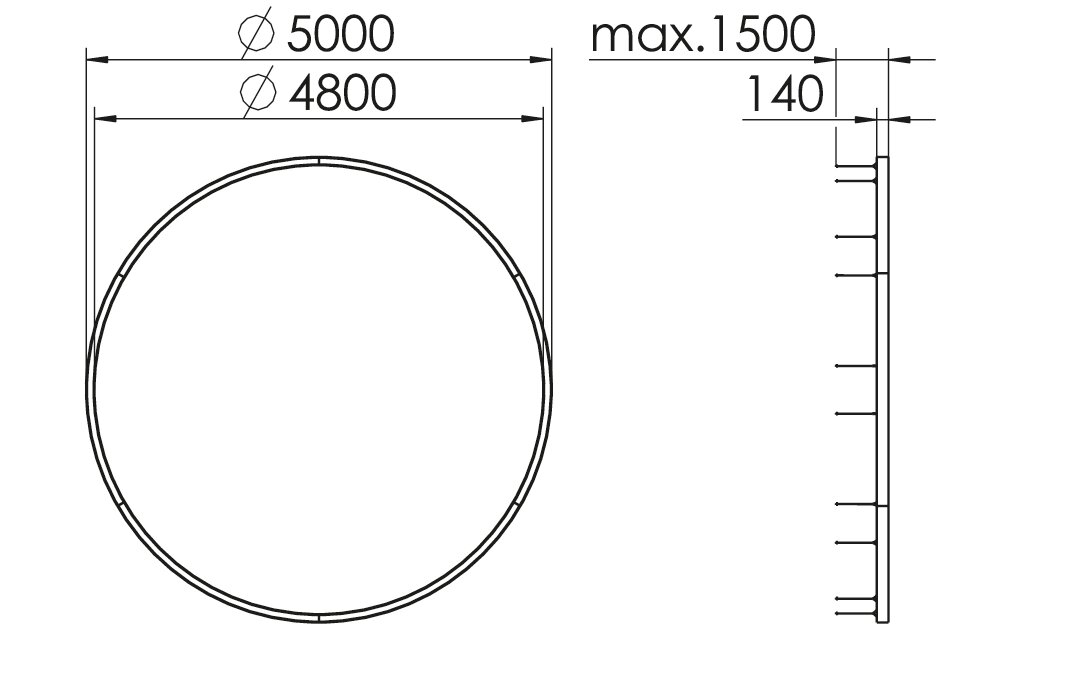

Dimensions
| Dimension H | 140 mm |
| Dimension D | 5000 mm |
| Net weight | 95.000 kg |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
Housing
| Colour | silver |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Housing material | Aluminium |
| Surface treatment of housing | |
| Cover material | PMMA opal |
Electrical version
| Type of control | DALI |
| Nominal voltage | 230–240 V, 50–60 Hz |
| Rated power | 500.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 16 |
| Rated luminous flux | 41000 lm |
| Luminaire efficiency | 82 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
Pendant luminaire from the H140-PROFIL product family. Ring-shaped luminaire housing made of extruded aluminium profile with direct component LED using mid power LED modules. Opal cover on the underside with stepped milling for homogenous illumination without direct view of LED units.
Order Information
| Item number | SPN0000136SI |
| GTIN | 4029299143546 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension H | 140 mm |
| Dimension D | 5000 mm |
| Net weight | 95.000 kg |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
Housing
| Colour | silver |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Housing material | Aluminium |
| Cover material | PMMA opal |
Electrical version
| Type of control | DALI |
| Nominal voltage | 230–240 V, 50–60 Hz |
| Rated power | 500.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 16 |
| Rated luminous flux | 41000 lm |
| Luminaire efficiency | 82 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
Download Center

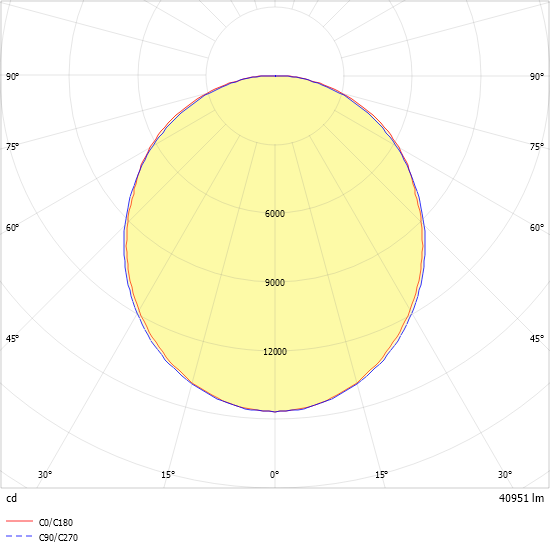

Light distribution curve
