H80 IND FLAT154 DASI-380B830 / SPN0000082SI
Product Description
Pendant luminaire of the H80-PROFIL product family. Light insert for straight H-profile structure. Steel mounted in the top of the H-profile with attached LEDs, indirect distribution. LEDs covered by wide beam optics made of clear, UV-stabilised PMMA.
Order Information
| Item number | SPN0000082SI |
| GTIN | 4029299500837 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1186 mm |
| Dimension B | 70 mm |
| Dimension H | 80 mm |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
Housing
| Colour | silver |
| Protection class | IP20 |
| Housing material | Steel |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI |
| Nominal voltage | 230–240 V, 50–60 Hz |
| Rated power | 34.0 W |
| Protection class | I |
Lighting technology
| Light emission | indirect |
| Light distribution | symmetric |
| Beam characteristics | wide beam |

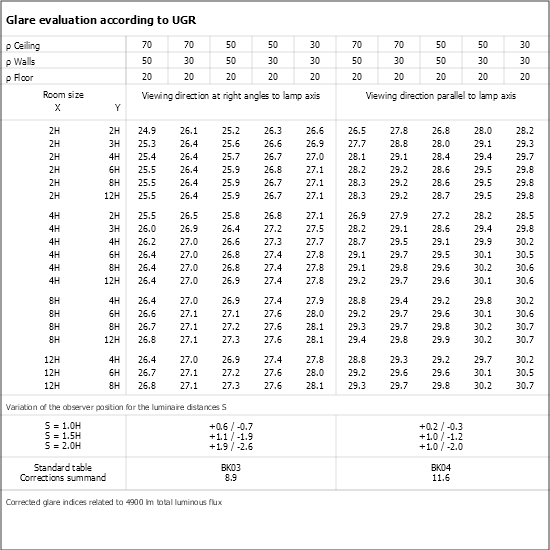

| UGR class | > 25 |
| Rated luminous flux | 4530 lm |
| Luminaire efficiency | 133 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
