H80 ORTO 1260-840 DA-SW / SPN0000069AQ
Product Description
Spotlight of the H80-PROFIL product family. Light insert for straight H-profile structure. Rectangular light unit in a simple design with a cell louvre for optical control. The individual LEDs are covered with a panel. Light insert mounted on a steel bracket for a swivelling range of -45° to +45°.
Order Information
| Item number | SPN0000069AQ |
| GTIN | 4029299500561 |
General
| Product category | Spotlight |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension L | 350 mm |
| Dimension B | 80 mm |
| Dimension H | 100 mm |
| Net weight | 0.000 kg |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
Housing
| Colour | black |
| Protection class | IP20 |
| Housing material | Steel |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 8.0 W |
| Protection class | I |
Lighting technology
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |

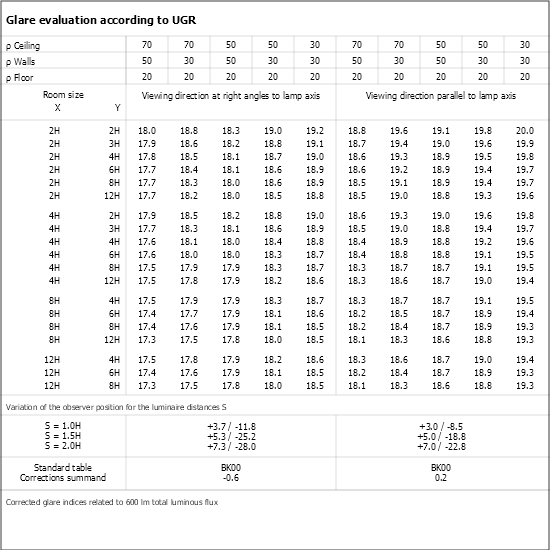

| UGR class | ≤ 19 |
| Rated luminous flux | 600 lm |
| Luminaire efficiency | 75 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
Spotlight of the H80-PROFIL product family. Light insert for straight H-profile structure. Rectangular light unit in a simple design with a cell louvre for optical control. The individual LEDs are covered with a panel. Light insert mounted on a steel bracket for a swivelling range of -45° to +45°.
Order Information
| Item number | SPN0000069AQ |
| GTIN | 4029299500561 |
General
| Product category | Spotlight |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension L | 350 mm |
| Dimension B | 80 mm |
| Dimension H | 100 mm |
| Net weight | 0.000 kg |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
Housing
| Colour | black |
| Protection class | IP20 |
| Housing material | Steel |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 8.0 W |
| Protection class | I |
Lighting technology
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 600 lm |
| Luminaire efficiency | 75 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
Download Center

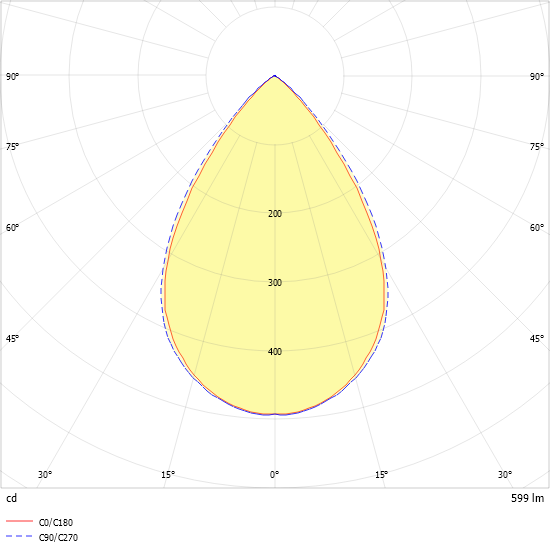

Light distribution curve
