H80-K-I-2500-PERGAZY-840-DA-W / SPN0000128
Product Description
Pendant luminaire of the H80-PROFIL product family. Cylindrical light insert for straight or curved H-profile structure. Luminaire unit with integrated LED COB module made of polished acrylic glass, the underside with concave curvature, matt lacquered for diffuse light emission.
Order Information
| Item number | SPN0000128 |
| GTIN | 4029299143379 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension H | 120 mm |
| Dimension D | 2500 mm |
| Net weight | 35.000 kg |
Dimension drawing
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
Housing
| Colour | white |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Housing material | Aluminium |
| Surface treatment of housing | |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 203.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Diffuser |
| Light emission | direct/indirect |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 15300 lm |
| Luminaire efficiency | 75 lm/W |
UGR table
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
Download Center
Approvals:
Product Description
Pendant luminaire of the H80-PROFIL product family. Cylindrical light insert for straight or curved H-profile structure. Luminaire unit with integrated LED COB module made of polished acrylic glass, the underside with concave curvature, matt lacquered for diffuse light emission.
Product information
Order Information
| Item number | SPN0000128 |
| GTIN | 4029299143379 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension H | 120 mm |
| Dimension D | 2500 mm |
| Net weight | 35.000 kg |
Dimension drawing
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
Housing
| Colour | white |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Housing material | Aluminium |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 203.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Diffuser |
| Light emission | direct/indirect |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 15300 lm |
| Luminaire efficiency | 75 lm/W |
UGR table
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
Download Center

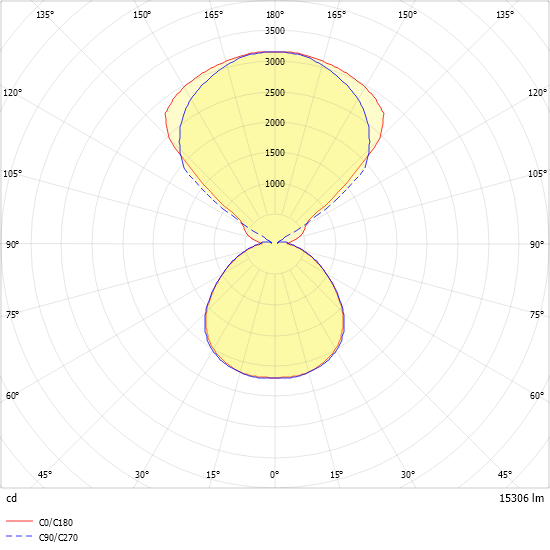

Light distribution curve
Approvals:
