H-PROFIL TRÄGERSY. GEBOGEN / SPN0000044
Product Description

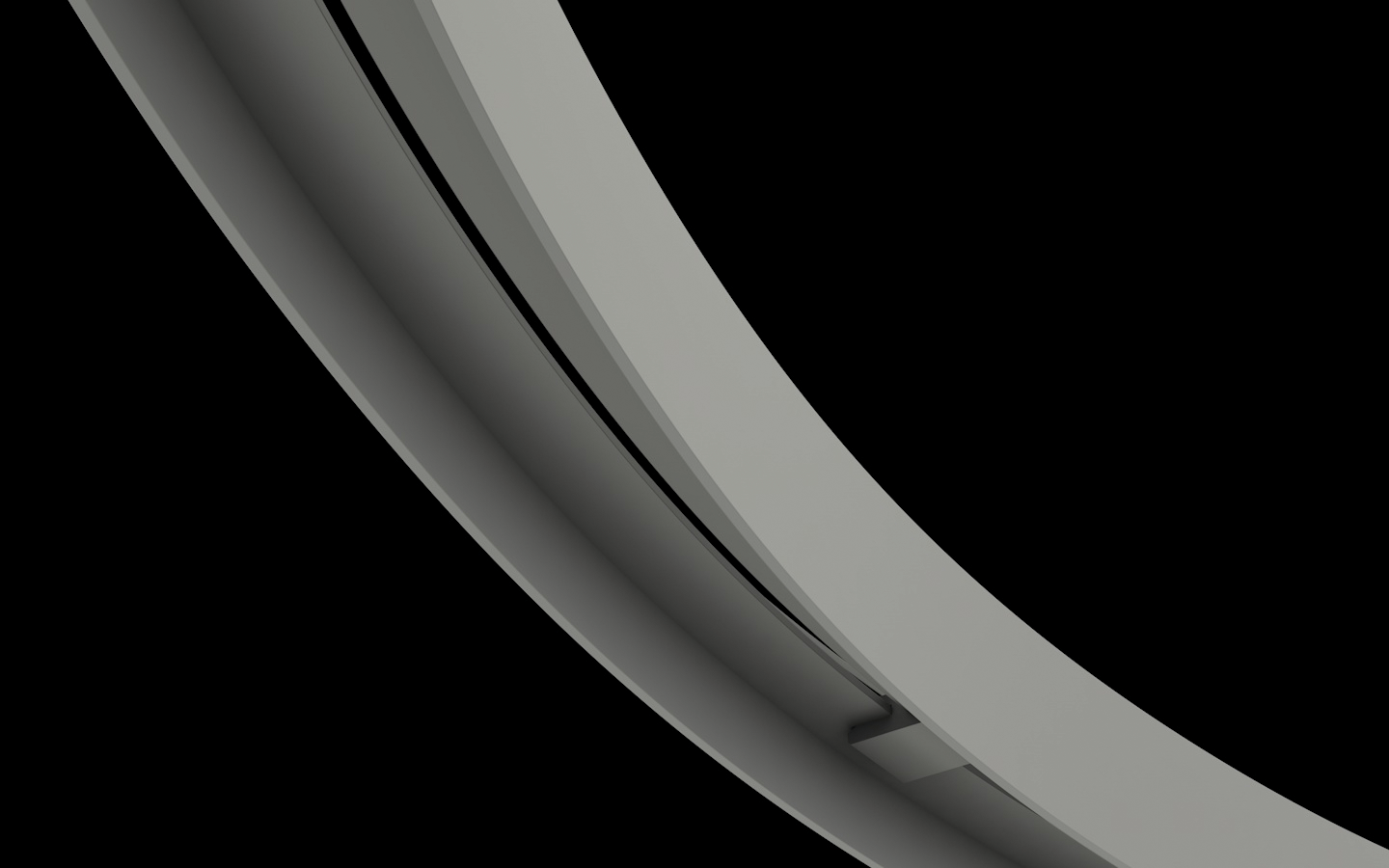

Mounting rail of the H80-PROFIL product family. The H80 profile consists of two mirrored T-profile aluminium extrusions that join together using special connectors to form an extremely stable H construct. It can be adapted straight, angled or curved to any desired room contour.
Order Information
| Item number | SPN0000044 |
| GTIN | 4029299902228 |
General
| Product category | Mounting rail |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension B | 80 mm |
| Dimension H | 80 mm |
| Net weight | 7.000 kg |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
Housing
| Colour | silver |
| Protection class | IP20 |
| Housing material | Aluminium |
Lighting technology
Light source
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
