HERO 6000-865 SF-DA / 0667482
Product Description
High-bay spotlight from the HERO product family. Optical control via Lens, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 56800 lm in light colour 865, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP64. Ceiling surface-mounted installation with corresponding accessories. Pendant mounting (chain, cable) with corresponding fixing kits, swing hook already pre-mounted on luminaire. Trunking rail mounting on TRAS or VLTO with corresponding accessories. Ball resistant mounting only with appropriately labelled accessories. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Note on harmful gas resistance: A special coating on the LEDs makes the product more resistant to harmful gases.
Note “ball resistant“:RIDI luminaires with this sign are produced to the appropriate mechanical and photometric standards demanded for sports hall lighting. They comply with ball-resistant safety requirements according to DIN 18032, part 3.
Note LABS: These luminaries are suitable for use in paint processing operations outside the painting area or outside of solvent processing areas.
Order Information
| Item number | 0667482 |
| GTIN | 4029299497304 |
General
| Product category | High-bay spotlight |
| Range of application | Industry | Sports and multipurpose halls |
Dimensions
| Dimension L | 1197 mm |
| Dimension B | 372 mm |
| Dimension H | 110 mm |
| Dimension AE max | 1120 mm |
| Dimension AE min | 870 mm |
| Dimension AE1 | 285 mm |
| Dimension K | 32 mm |
| Net weight | 24.000 kg |
Mounting
| Mounting type | Attachment | Pendant |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP64 |
| Impact resistance | IK04 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–53 °C |
| Housing material | Aluminium |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 488.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Lens |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | Super Flood |
| UGR class | ≤ 25 |
| Rated luminous flux | 56800 lm |
| Luminaire efficiency | 116 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 80.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0205887 -
VLBP
|
Plate with loop for ceiling fixing. max. 20kg, 1 pc |
|
|
0208347 -
VLSPSO-KH
|
Turnbuckle with eyelets + carabiner, adjustment 50 mm, maximum 20 kg, 1 piece |
|
|
0207880 -
ZSP-SK-3M
|
Wire pendant loop clamp, D = 2 mm, L = 3m, 1 piece, maximum 45 kg |
|
|
0205888 -
VLKH
|
Carabiner hook, dimensions 50x25x5, max. 20kg, 1pc |
|
|
0200223 -
TRA 002 M5X20
|
Luminaire hanger M5 x 20 swing hooks, galvanized steel |
|
|
0200251 -
TRA 008 KETTE GALV. VERZ.
|
Galvanised chain, max. 20kg , weight 0.25 kg/m |
|
|
0218427 -
ZBS-D HERO
|
Ceiling fixing kit for HERO |
|
|
0217887 -
ZBS-VLT HERO
|
Luminaire fixing HERO to VLT |
|
|
0217888 -
ZBS-TRAS HERO
|
Luminaire fixing HERO to TRAS |
|
|
0218426 -
ZBS-W HERO
|
Wall mount HERO |
|
|
High-bay spotlight from the HERO product family. Optical control via Lens, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 56800 lm in light colour 865, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP64. Ceiling surface-mounted installation with corresponding accessories. Pendant mounting (chain, cable) with corresponding fixing kits, swing hook already pre-mounted on luminaire. Trunking rail mounting on TRAS or VLTO with corresponding accessories. Ball resistant mounting only with appropriately labelled accessories. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Note on harmful gas resistance: A special coating on the LEDs makes the product more resistant to harmful gases.
Note “ball resistant“:RIDI luminaires with this sign are produced to the appropriate mechanical and photometric standards demanded for sports hall lighting. They comply with ball-resistant safety requirements according to DIN 18032, part 3.
Note LABS: These luminaries are suitable for use in paint processing operations outside the painting area or outside of solvent processing areas.
Order Information
| Item number | 0667482 |
| GTIN | 4029299497304 |
General
| Product category | High-bay spotlight |
| Range of application | Industry | Sports and multipurpose halls |
Dimensions
| Dimension L | 1197 mm |
| Dimension B | 372 mm |
| Dimension H | 110 mm |
| Dimension AE max | 1120 mm |
| Dimension AE min | 870 mm |
| Dimension AE1 | 285 mm |
| Dimension K | 32 mm |
| Net weight | 24.000 kg |
Mounting
| Mounting type | Attachment | Pendant |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP64 |
| Impact resistance | IK04 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–53 °C |
| Housing material | Aluminium |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 488.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Lens |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | Super Flood |
| UGR class | ≤ 25 |
| Rated luminous flux | 56800 lm |
| Luminaire efficiency | 116 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 80.000 h |
Download Center

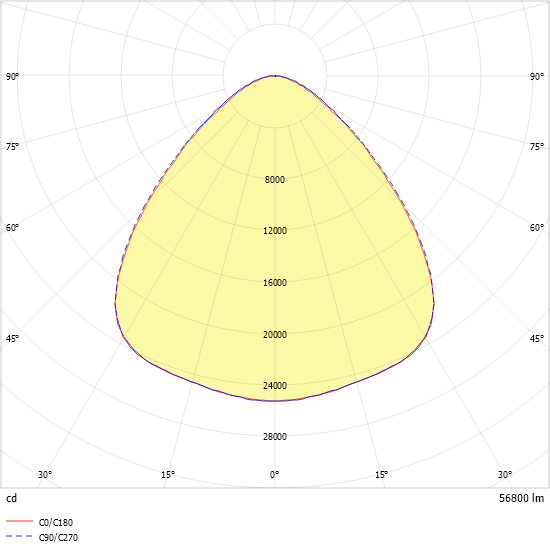

Light distribution curve
