HERO2DAWS840B3000 / 0637967
Product Description
High-bay spotlight of the HERO2 product family. Optical control by Lens, beam pattern symmetric, wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 28730 lm in light colour 840, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP66. Cover made of PC clear. Pendant mounting (chain, rope) with appropriate fixing kits. Wall mounting with appropriate accessories. Ball resistant mounting only with appropriately marked accessories. With electronic electrical component DALI-2. Replacement by specialist possible. Nominal voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0637967 |
| GTIN | 4029299961515 |
General
| Product category | High-bay spotlight |
| Range of application | Sports and multipurpose halls |
| Guarantee | 5 years |
Dimensions
| Dimension L | 868 mm |
| Dimension B | 160 mm |
| Dimension H | 114 mm |
| Dimension A | 868 mm |
| Dimension A1 | 380 mm |
| Net weight | 0.000 kg |
Mounting
| Mounting type | Attachment | Pendant |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 1 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP66 |
| Impact resistance | IK09 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–70 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PC clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 159.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Lens |
| Reflector | white |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |

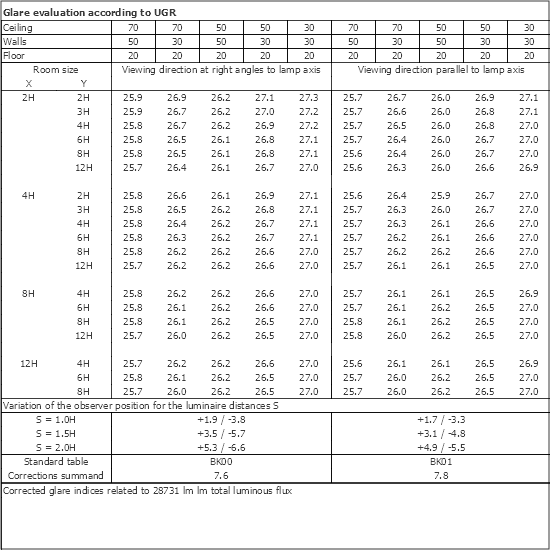

| UGR class | > 25 |
| Rated luminous flux | 28730 lm |
| Luminaire efficiency | 181 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
| 0206071 - ZBS-WH HERO2-3000 | HERO2-3000 wall mount |
|
|
0205887 -
VLBP
|
Plate with loop for ceiling fixing. max. 20kg, 1 pc |
|
|
0205888 -
VLKH
|
Carabiner hook, dimensions 50x25x5, max. 20kg, 1pc |
|
|
0200251 -
TRA 008 KETTE GALV. VERZ.
|
Galvanised chain, max. 20kg , weight 0.25 kg/m |
|
|
| 0206073 - ZBS-KA HERO2 | Chain suspension HERO2 |
|
|
| 0206074 - ZSP-SK HERO2 | Wire clamp HERO2 |
|
|
