IHLS-L 154/410-840 OS / 0650087

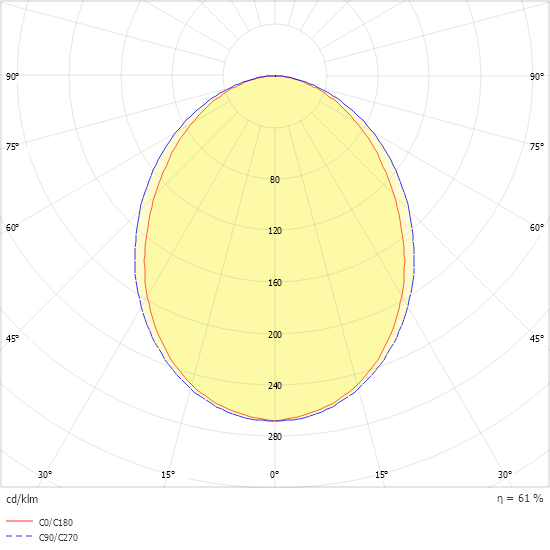

Ceiling light from the IHLS product family. Optical control via Opal cover, beam pattern symmetric, wide beam, light emission direct. Lamps L-TUBE installed, Exchange by end customer possible. The luminaire generates a rated luminous flux of 2930 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP64. Ceiling mounting without additional accessories via attached cap profiles or spacerless with accessory IHLS-DB ... (to be ordered separately). Pendant mounting on chain or cable via attached cap profiles. Mounting rail installation with fixing clips or standard fasteners. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.

IHLS-L 154, 180, 254, 280, 424: all lamps are wired to L1. . IHLS-L 354, 380: central lamp wired to L1, outer lamps to L2. . IHLS-L 454, 480: both central lamps wired to L1, outer lamps to L2. . Other wiring arrangements are available on request.

Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. A possible restriction of the area of application in the food industry can be found in the food certificate.

Note “ball resistant“:RIDI luminaires with this sign are produced to the appropriate mechanical and photometric standards demanded for sports hall lighting. They comply with ball-resistant safety requirements according to DIN 18032, part 3.

The ball resistant rating certifies the high level of robustness of these models, which is also a significant benefit in industrial luminaires.
