IHLS-L 480/3360-840 OS / 0650597
Product Description
Ceiling light from the IHLS product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamps L-TUBE installed, Exchange by end customer possible. The luminaire generates a rated luminous flux of 26060 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP64. Ceiling mounting without additional accessories via attached cap profiles or spacerless with accessory IHLS-DB ... (to be ordered separately). Pendant mounting on chain or cable via attached cap profiles. Mounting rail installation with fixing clips or standard fasteners. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
IHLS-L 154, 180, 254, 280, 424: all lamps are wired to L1. . IHLS-L 354, 380: central lamp wired to L1, outer lamps to L2. . IHLS-L 454, 480: both central lamps wired to L1, outer lamps to L2. . Other wiring arrangements are available on request.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. A possible restriction of the area of application in the food industry can be found in the food certificate.
Note “ball resistant“:RIDI luminaires with this sign are produced to the appropriate mechanical and photometric standards demanded for sports hall lighting. They comply with ball-resistant safety requirements according to DIN 18032, part 3.
The ball resistant rating certifies the high level of robustness of these models, which is also a significant benefit in industrial luminaires.
Order Information
| Item number | 0650597 |
| GTIN | 4029299489569 |
General
| Product category | Ceiling light |
| Range of application | Industry | Food | Sports and multipurpose halls |
| HACCP certified | Yes |
Dimensions
| Dimension L | 1500 mm |
| Dimension B | 466 mm |
| Dimension H | 80 mm |
| Dimension A1 | 1350 mm |
| Dimension A2 | 216 mm |
| Dimension A3 | 150 mm |
| Dimension H2 | 95 mm |
| Net weight | 17.100 kg |
Mounting
| Mounting type | Attachment | Pendant |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP64 |
| Impact resistance | IK08 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–30 °C |
| Housing material | Steel |
| Cover material | PMMA opal |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 244.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 26060 lm |
| Luminaire efficiency | 107 lm/W |
Light source
| Lamp | L-TUBE |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 55.000 h |
| Rated life L80B10 (tq = 25 °C) | 45.000 h |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0208391 -
IHLS-DB 480
|
Ceiling fixing kit for IHLS 435/49/80, white |
|
|
0205888 -
VLKH
|
Carabiner hook, dimensions 50x25x5, max. 20kg, 1pc |
|
|
0205887 -
VLBP
|
Plate with loop for ceiling fixing. max. 20kg, 1 pc |
|
|
0207880 -
ZSP-SK-3M
|
Wire pendant loop clamp, D = 2 mm, L = 3m, 1 piece, maximum 45 kg |
|
|
0208347 -
VLSPSO-KH
|
Turnbuckle with eyelets + carabiner, adjustment 50 mm, maximum 20 kg, 1 piece |
|
|
0200228 -
TRA 002 SHL M5X20
|
Luminaire hanger SHL, swing hook M5x20, galv. steel, 1 pc |
|
|
0200251 -
TRA 008 KETTE GALV. VERZ.
|
Galvanised chain, max. 20kg , weight 0.25 kg/m |
|
|
0215942 -
UKNS 3.0M
|
Wire pendant w. ceiling fixing and wire clamp 3.0m, 1 pc |
|
|
|
0210958 -
UKNS 1.5M
|
Wire pendant w. ceiling fixing and wire clamp, 1.5m, 1 pc |
|
|
|
0215943 -
UKNS 5.0M
|
Wire pendant w. ceiling fixing and wire clamp 5.0m, 1 pc |
|
|
0204003 -
ZRO RAHMENÖFFNER
|
Tool for easy opening of the light frame |
|
|
0203626 -
ZGH GLASHEBER
|
Rubber suction device for removal of the protective glass |
|
|
Ceiling light from the IHLS product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamps L-TUBE installed, Exchange by end customer possible. The luminaire generates a rated luminous flux of 26060 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP64. Ceiling mounting without additional accessories via attached cap profiles or spacerless with accessory IHLS-DB ... (to be ordered separately). Pendant mounting on chain or cable via attached cap profiles. Mounting rail installation with fixing clips or standard fasteners. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
IHLS-L 154, 180, 254, 280, 424: all lamps are wired to L1. . IHLS-L 354, 380: central lamp wired to L1, outer lamps to L2. . IHLS-L 454, 480: both central lamps wired to L1, outer lamps to L2. . Other wiring arrangements are available on request.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. A possible restriction of the area of application in the food industry can be found in the food certificate.
Note “ball resistant“:RIDI luminaires with this sign are produced to the appropriate mechanical and photometric standards demanded for sports hall lighting. They comply with ball-resistant safety requirements according to DIN 18032, part 3.
The ball resistant rating certifies the high level of robustness of these models, which is also a significant benefit in industrial luminaires.
Order Information
| Item number | 0650597 |
| GTIN | 4029299489569 |
General
| Product category | Ceiling light |
| Range of application | Industry | Food | Sports and multipurpose halls |
| HACCP certified | Yes |
Dimensions
| Dimension L | 1500 mm |
| Dimension B | 466 mm |
| Dimension H | 80 mm |
| Dimension A1 | 1350 mm |
| Dimension A2 | 216 mm |
| Dimension A3 | 150 mm |
| Dimension H2 | 95 mm |
| Net weight | 17.100 kg |
Mounting
| Mounting type | Attachment | Pendant |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP64 |
| Impact resistance | IK08 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–30 °C |
| Housing material | Steel |
| Cover material | PMMA opal |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 244.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 26060 lm |
| Luminaire efficiency | 107 lm/W |
Light source
| Lamp | L-TUBE |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 55.000 h |
| Rated life L80B10 (tq = 25 °C) | 45.000 h |
Download Center

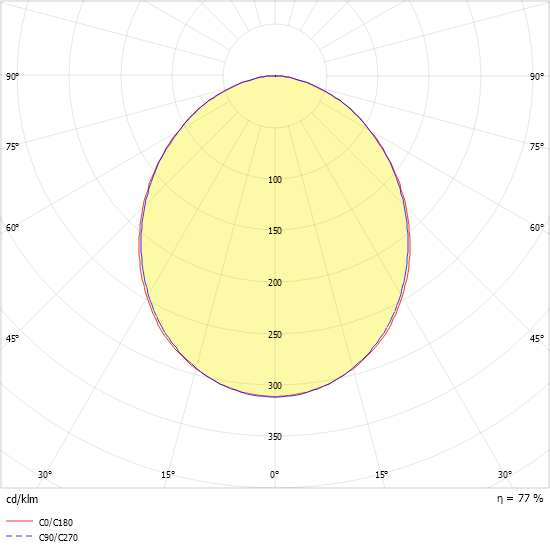

Light distribution curve
