IPPY1500DAKG865O0850-EDS3 / 0931282
Product Description
Ceiling light of the IPPY product family. Optical control by Diffuser, beam pattern symmetric, diffuse beam, light emission direct/indirect. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 8540 lm in light colour 865, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Plastic, grey, protection rating IP66. Cover made of PC opal. Ceiling mounting via stainless steel fixing clips, which can be snapped onto the luminaire. Pendant mounting via stainless steel wire fixing brackets (which can be snapped onto the fixing clips) and horizontal or vertical wall mounting possible (accessories). With electronic electrical component DALI-2. Replacement by specialist possible. Nominal voltage 220 - 240 V AC/DC 50 - 60 Hz.
These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires.
They are suitable for use in sales and storage areas for unpackaged food.
They are suitable for use in food production areas without the use of high-pressure cleaners.
Order Information
| Item number | 0931282 |
| GTIN | 4029299997255 |
General
| Product category | Ceiling light |
| Range of application | Industry | Food |
| Range of application HACCP | Unpackaged food | Production |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1477 mm |
| Dimension B | 86 mm |
| Dimension H | 89 mm |
| Dimension A1 | 1000 mm |
| Net weight | 2.337 kg |
Mounting
| Mounting type | Attachment | Pendant |
| Mounting position | Ceiling | Wall |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
| Adjustability | static |
Housing
| Colour | grey |
| Protection class | IP66 |
| Impact resistance | IK08 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–35 °C |
| Housing material | Plastic |
| Cover material | PC opal |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 53.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Diffuser |
| Reflector | white |
| Light emission | direct/indirect |
| Light distribution | symmetric |
| Beam characteristics | diffuse beam |
| UGR class | > 25 |
| Rated luminous flux | 8540 lm |
| Luminaire efficiency | 161 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Farbwiedergabeindex R9 | 15 |
| Colour temperature | 6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Emergency lighting
| Power supply system | Single battery |
| Wiring system | Permanent circuit |
| Light duration | 3 h |
| Rated luminous flux in emergency mode | 500 lm |
| Battery type | LiFePO4 |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
| 0211764 - ZWV-V2A-IPPY1500-10 | Stainless steel V2A tub closure (10 pieces), including plugs and ceiling mounting brackets for IPPY1500 |
|
|
| 0209634 - ZIDV-IPPY1500/5/2.5 | Internal through wiring, 5x 2.5 mm², for IPPY1500 |
|
|
| 0211760 - ZPS-B IPPY | Bracket for pendant fixing IPPY, 2 pieces |
|
|
| 0211761 - ZKS-F IPPY | Bracket for vertical mounting IPPY, 2 pieces |
|
|
| 0211765 - ZNAPGV-P IPPY | Mains connection with PG screw connection |
|
|
| 0211766 - ZDAE-IPPY | Pressure equalisation element < 0°C, 1 piece |
|
|
Ceiling light of the IPPY product family. Optical control by Diffuser, beam pattern symmetric, diffuse beam, light emission direct/indirect. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 8540 lm in light colour 865, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Plastic, grey, protection rating IP66. Cover made of PC opal. Ceiling mounting via stainless steel fixing clips, which can be snapped onto the luminaire. Pendant mounting via stainless steel wire fixing brackets (which can be snapped onto the fixing clips) and horizontal or vertical wall mounting possible (accessories). With electronic electrical component DALI-2. Replacement by specialist possible. Nominal voltage 220 - 240 V AC/DC 50 - 60 Hz.
These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires.
They are suitable for use in sales and storage areas for unpackaged food.
They are suitable for use in food production areas without the use of high-pressure cleaners.
Order Information
| Item number | 0931282 |
| GTIN | 4029299997255 |
General
| Product category | Ceiling light |
| Range of application | Industry | Food |
| Range of application HACCP | Unpackaged food | Production |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1477 mm |
| Dimension B | 86 mm |
| Dimension H | 89 mm |
| Dimension A1 | 1000 mm |
| Net weight | 2.337 kg |
Mounting
| Mounting type | Attachment | Pendant |
| Mounting position | Ceiling | Wall |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
| Adjustability | static |
Housing
| Colour | grey |
| Protection class | IP66 |
| Impact resistance | IK08 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–35 °C |
| Housing material | Plastic |
| Cover material | PC opal |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 53.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Diffuser |
| Reflector | white |
| Light emission | direct/indirect |
| Light distribution | symmetric |
| Beam characteristics | diffuse beam |
| UGR class | > 25 |
| Rated luminous flux | 8540 lm |
| Luminaire efficiency | 161 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Farbwiedergabeindex R9 | 15 |
| Colour temperature | 6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Emergency lighting
| Power supply system | Single battery |
| Wiring system | Permanent circuit |
| Light duration | 3 h |
| Rated luminous flux in emergency mode | 500 lm |
| Battery type | LiFePO4 |
Download Center

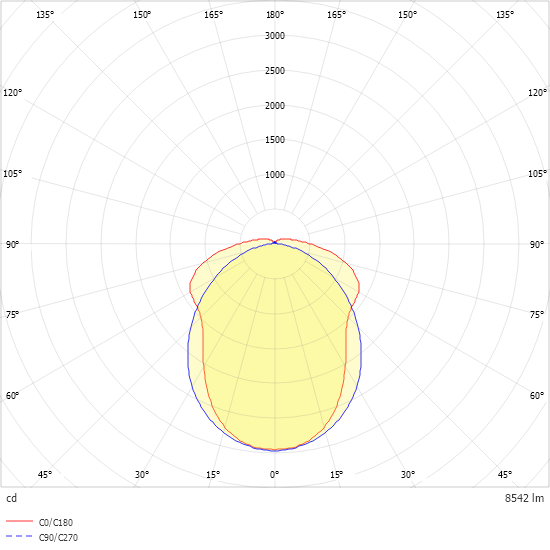

Light distribution curve
