IRL-O110-3NDWS8400350 / 0951226
Product Description
Tubular luminaire from the IRL product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 3870 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Plastic, white, protection rating IP66 IP68 IP69K. Luminaire suitable for surface mounting on ceiling/wall or pendant mounting with corresponding accessories (to be ordered separately). With electronic electrical component On/Off. Replacement by specialist. Rated voltage 230 - 240 V AC/DC 50 - 60 Hz.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. A possible restriction of the area of application in the food industry can be found in the food certificate.
Order Information
| Item number | 0951226 |
| GTIN | 4029299534801 |
General
| Product category | Tubular luminaire |
| Range of application | Industry | Food |
| HACCP certified | Yes |
Dimensions
| Dimension L | 1190 mm |
| Dimension B | 91 mm |
| Dimension H | 91 mm |
| Net weight | 1.700 kg |
Mounting
| Mounting type | Attachment | Pendant |
Housing
| Colour | white |
| Protection class | IP66 | IP68 | IP69K |
| Impact resistance | IK08 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Plastic |
| Cover material | PMMA opal |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 31.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 3870 lm |
| Luminaire efficiency | 125 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0208520AQ -
IRL-DB P14-AQ
|
Spring steel clip, wall/ceiling fixture. IRL, black 2 pc. |
|
|
|
0208520 -
IRL-DB P14
|
Spring steel clip, wall/ceiling fixture. IRL, white 2 pc. |
|
|
|
0208520SI -
IRL-DB P14-SI
|
Spring steel clip, wall/ceiling fixture. IRL, silver, 2 pc. |
|
|
0207880 -
ZSP-SK-3M
|
Wire pendant loop clamp, D = 2 mm, L = 3m, 1 piece, maximum 45 kg |
|
|
0208394 -
IRL-DB
|
Wall / ceiling fixing IRL, pipe clip 1 set = 2 pc. |
|
|
Tubular luminaire from the IRL product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 3870 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Plastic, white, protection rating IP66 IP68 IP69K. Luminaire suitable for surface mounting on ceiling/wall or pendant mounting with corresponding accessories (to be ordered separately). With electronic electrical component On/Off. Replacement by specialist. Rated voltage 230 - 240 V AC/DC 50 - 60 Hz.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. A possible restriction of the area of application in the food industry can be found in the food certificate.
Order Information
| Item number | 0951226 |
| GTIN | 4029299534801 |
General
| Product category | Tubular luminaire |
| Range of application | Industry | Food |
| HACCP certified | Yes |
Dimensions
| Dimension L | 1190 mm |
| Dimension B | 91 mm |
| Dimension H | 91 mm |
| Net weight | 1.700 kg |
Mounting
| Mounting type | Attachment | Pendant |
Housing
| Colour | white |
| Protection class | IP66 | IP68 | IP69K |
| Impact resistance | IK08 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Plastic |
| Cover material | PMMA opal |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 31.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 3870 lm |
| Luminaire efficiency | 125 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

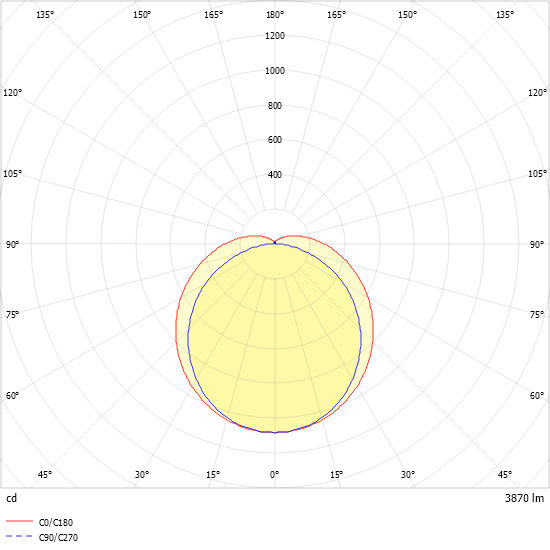

Light distribution curve
