IRL-T16-R1X085/25ND-W / 0950064
Product Description
Tubular luminaire from the IRL product family. Optical control via Clear cover, beam pattern symmetric, diffuse beam, light emission direct. Lamps R-TUBE not included, Exchange by end customer possible. The luminaire generates a rated luminous flux of 2430 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Plastic, white, protection rating IP66 IP68 IP69K. Luminaire suitable for surface mounting on ceiling/wall or pendant mounting with corresponding accessories (to be ordered separately). With electronic electrical component On/Off. Replacement by specialist. Rated voltage 230 - 240 V AC/DC 50 - 60 Hz.
The light source is not included in the scope of delivery and must be ordered separately. Suitable light sources can be found in the light source overview.
These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires.
They are suitable for use in food production areas and cleaning processes with a high-pressure cleaner at 15 °C.
Order Information
| Item number | 0950064 |
| GTIN | 4029299535945 |
General
| Product category | Tubular luminaire |
| Range of application | Industry | Food |
| Range of application HACCP | Production with cleaning process |
Dimensions
| Dimension L | 1190 mm |
| Dimension B | 91 mm |
| Dimension H | 91 mm |
| Net weight | 1.900 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | white |
| Protection class | IP66 | IP68 | IP69K |
| Impact resistance | IK08 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Plastic |
| Cover material | PC clear (UV-stabilized) |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 21.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Clear cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | diffuse beam |
| UGR class | ≤ 22 |
| Rated luminous flux | 2430 lm |
| Luminaire efficiency | 116 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | No |
| Colour rendering index Ra | ≥ 80 |
| Farbwiedergabeindex R9 | 0 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
Mounting and Fastening
| Item number - Designation | Product Description | Download | Wishlist |
0208520 -
IRL-DB P14
|
Spring steel bracket, wall/ceiling mounting, IRL, white, 2 pcs |
|
|
0207880 -
ZSP-SK-3M
|
Wire pendant loop clamp, diameter 2 mm, length 3 m, 1 piece, maximum load 45 kg |
|
|
0208394 -
IRL-DB
|
Wall/ceiling fixture IRL, pipe clamp, 1 set = 2 pieces |
|
|
|
0208520SI -
IRL-DB P14-SI
|
Spring steel bracket, wall/ceiling mounting, IRL, silver, 2 pcs. |
|
|
|
0208520AQ -
IRL-DB P14-AQ
|
Spring steel bracket, wall/ceiling mounting, IRL, black, 2 pcs. |
|
|
| Item number - Bezeichnung | Length | Colour temperature | Characteristic | ||
| 1206604LF - R-TUBE-G2 085-840M0300 LF | 849 | 4000 K | matt |
|
|
| 1206625LF - R-TUBE-G2 085-830M0300 LF | 849 | 3000 K | matt |
|
|
| 1206704LF - R-TUBE-G2 085-865M0300 LF | 849 | 6500 K | matt |
|
|
Tubular luminaire from the IRL product family. Optical control via Clear cover, beam pattern symmetric, diffuse beam, light emission direct. Lamps R-TUBE not included, Exchange by end customer possible. The luminaire generates a rated luminous flux of 2430 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Plastic, white, protection rating IP66 IP68 IP69K. Luminaire suitable for surface mounting on ceiling/wall or pendant mounting with corresponding accessories (to be ordered separately). With electronic electrical component On/Off. Replacement by specialist. Rated voltage 230 - 240 V AC/DC 50 - 60 Hz.
The light source is not included in the scope of delivery and must be ordered separately. Suitable light sources can be found in the light source overview.
These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires.
They are suitable for use in food production areas and cleaning processes with a high-pressure cleaner at 15 °C.
Order Information
| Item number | 0950064 |
| GTIN | 4029299535945 |
General
| Product category | Tubular luminaire |
| Range of application | Industry | Food |
| Range of application HACCP | Production with cleaning process |
Dimensions
| Dimension L | 1190 mm |
| Dimension B | 91 mm |
| Dimension H | 91 mm |
| Net weight | 1.900 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | white |
| Protection class | IP66 | IP68 | IP69K |
| Impact resistance | IK08 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Plastic |
| Cover material | PC clear (UV-stabilized) |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 21.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Clear cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | diffuse beam |
| UGR class | ≤ 22 |
| Rated luminous flux | 2430 lm |
| Luminaire efficiency | 116 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | No |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

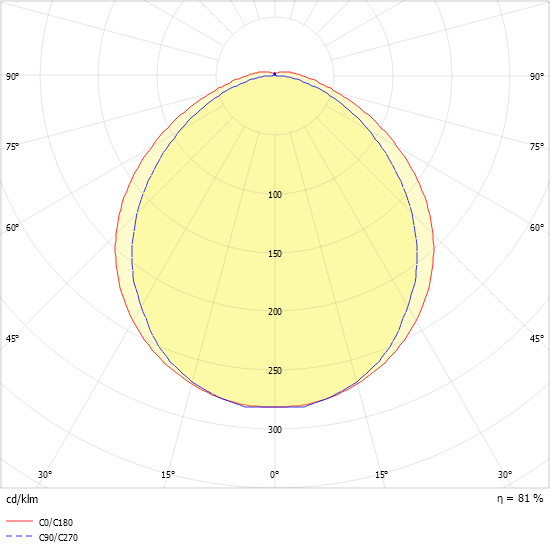

Light distribution curve
