IRL-T16-R1X115/30ND-W / 0950065
Product Description
Tubular luminaire from the IRL product family. Optical control via Clear cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamps R-TUBE not included, Exchange by end customer possible. The luminaire generates a rated luminous flux of 3880 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Plastic, white, protection rating IP66 IP68 IP69K. Luminaire suitable for surface mounting on ceiling/wall or pendant mounting with corresponding accessories (to be ordered separately). With electronic electrical component On/Off. Replacement by specialist. Rated voltage 230 - 240 V AC/DC 50 - 60 Hz.
The light source is not included in the scope of delivery and must be ordered separately. Suitable light sources can be found in the light source overview.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. A possible restriction of the area of application in the food industry can be found in the food certificate.
Order Information
| Item number | 0950065 |
| GTIN | 4029299503661 |
General
| Product category | Tubular luminaire |
| Range of application | Industry | Food |
| HACCP certified | Yes |
Dimensions
| Dimension L | 1490 mm |
| Dimension B | 91 mm |
| Dimension H | 91 mm |
| Net weight | 2.200 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | white |
| Protection class | IP66 | IP68 | IP69K |
| Impact resistance | IK08 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Plastic |
| Cover material | PC clear |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 34.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Clear cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 3880 lm |
| Luminaire efficiency | 114 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | No |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0208520AQ -
IRL-DB P14-AQ
|
Spring steel clip, wall/ceiling fixture. IRL, black 2 pc. |
|
|
|
0208520SI -
IRL-DB P14-SI
|
Spring steel clip, wall/ceiling fixture. IRL, silver, 2 pc. |
|
|
|
0208520 -
IRL-DB P14
|
Spring steel clip, wall/ceiling fixture. IRL, white 2 pc. |
|
|
0208394 -
IRL-DB
|
Wall / ceiling fixing IRL, pipe clip 1 set = 2 pc. |
|
|
0207880 -
ZSP-SK-3M
|
Wire pendant loop clamp, D = 2 mm, L = 3m, 1 piece, maximum 45 kg |
|
|
Tubular luminaire from the IRL product family. Optical control via Clear cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamps R-TUBE not included, Exchange by end customer possible. The luminaire generates a rated luminous flux of 3880 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Plastic, white, protection rating IP66 IP68 IP69K. Luminaire suitable for surface mounting on ceiling/wall or pendant mounting with corresponding accessories (to be ordered separately). With electronic electrical component On/Off. Replacement by specialist. Rated voltage 230 - 240 V AC/DC 50 - 60 Hz.
The light source is not included in the scope of delivery and must be ordered separately. Suitable light sources can be found in the light source overview.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. A possible restriction of the area of application in the food industry can be found in the food certificate.
Order Information
| Item number | 0950065 |
| GTIN | 4029299503661 |
General
| Product category | Tubular luminaire |
| Range of application | Industry | Food |
| HACCP certified | Yes |
Dimensions
| Dimension L | 1490 mm |
| Dimension B | 91 mm |
| Dimension H | 91 mm |
| Net weight | 2.200 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | white |
| Protection class | IP66 | IP68 | IP69K |
| Impact resistance | IK08 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Plastic |
| Cover material | PC clear |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 34.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Clear cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 3880 lm |
| Luminaire efficiency | 114 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | No |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

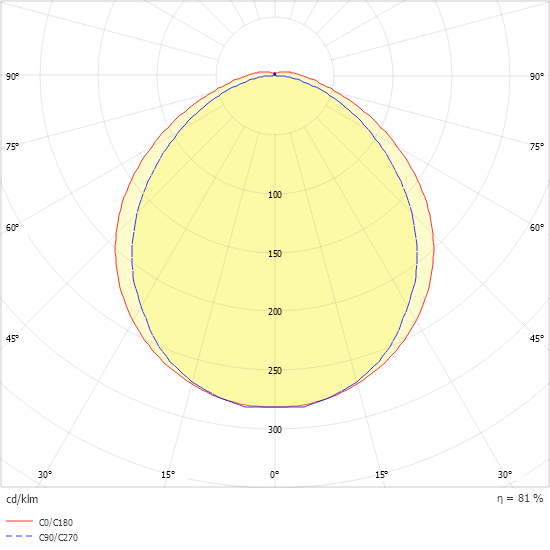

Light distribution curve
