KARO-S 2500-830 M-FSW / 0321892AQ
Product Description
Spotlight from the KARO product family. Optical control via Lens, beam pattern symmetric, narrow beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 2440 lm in light colour 830, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, black, protection rating IP20. Mounting on 3-phase conductor rail. Not intended for wall mounting. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 230 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0321892AQ |
| GTIN | 4029299535020 |
General
| Product category | Spotlight |
| Range of application | Education | Retail |
Dimensions
| Dimension L | 177 mm |
| Dimension B | 100 mm |
| Dimension H | 212 mm |
| Net weight | 1.300 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Power rail |
Housing
| Colour | black |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Aluminium |
| Cover material | PMMA clear |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 27.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Lens |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | Medium |
| UGR class | ≤ 16 |
| Rated luminous flux | 2440 lm |
| Luminaire efficiency | 90 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
Spotlight from the KARO product family. Optical control via Lens, beam pattern symmetric, narrow beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 2440 lm in light colour 830, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, black, protection rating IP20. Mounting on 3-phase conductor rail. Not intended for wall mounting. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 230 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0321892AQ |
| GTIN | 4029299535020 |
General
| Product category | Spotlight |
| Range of application | Education | Retail |
Dimensions
| Dimension L | 177 mm |
| Dimension B | 100 mm |
| Dimension H | 212 mm |
| Net weight | 1.300 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Power rail |
Housing
| Colour | black |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Aluminium |
| Cover material | PMMA clear |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 27.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Lens |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | Medium |
| UGR class | ≤ 16 |
| Rated luminous flux | 2440 lm |
| Luminaire efficiency | 90 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

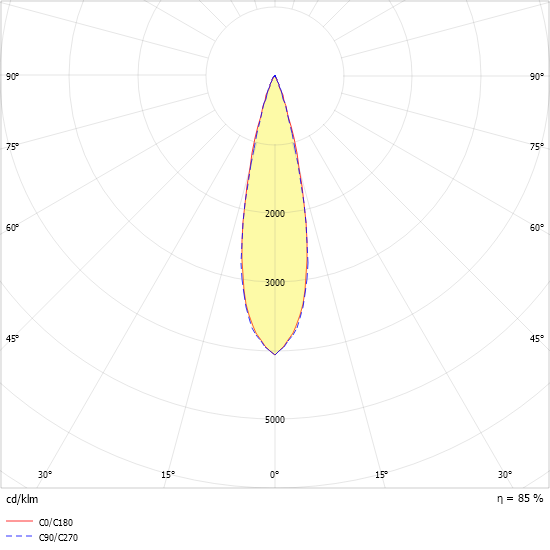

Light distribution curve
