LENSES-EPS1548NDWS840B0500 / 0827781
Product Description
Ceiling light from the LENSES product family. Optical control via Lens, beam pattern symmetric, wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 5160 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. Installation in metal panelled ceilings parallel to the panels with corresponding fixing accessories. Not suitable for ceilings with filler strips. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0827781 |
| GTIN | 4029299533804 |
General
| Product category | Ceiling light |
| Range of application | Education | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1548 mm |
| Dimension B | 185 mm |
| Dimension H | 60 mm |
| Dimension K | 268 mm |
| Net weight | 6.400 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| System dimension | M100 | M200 |
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Impact resistance | IK04 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA clear |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 31.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Lens |
| Glare control | Lens |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |

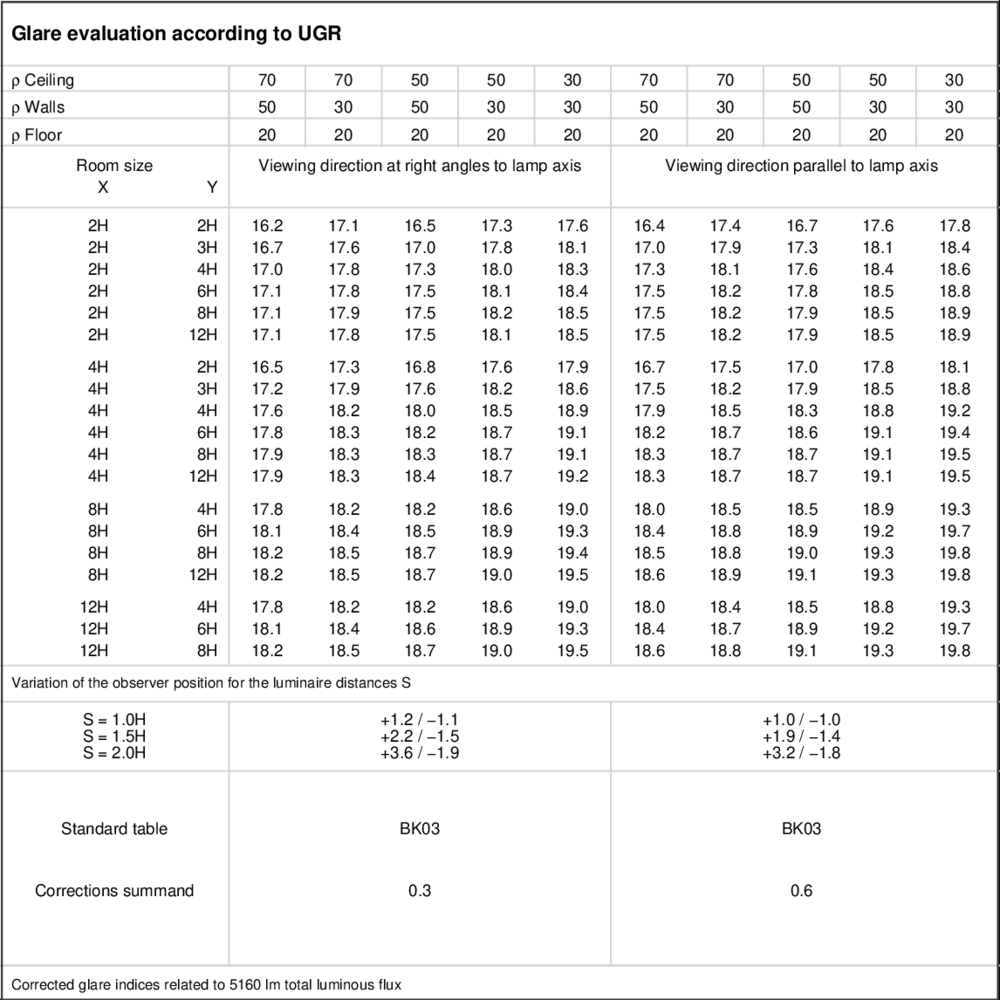

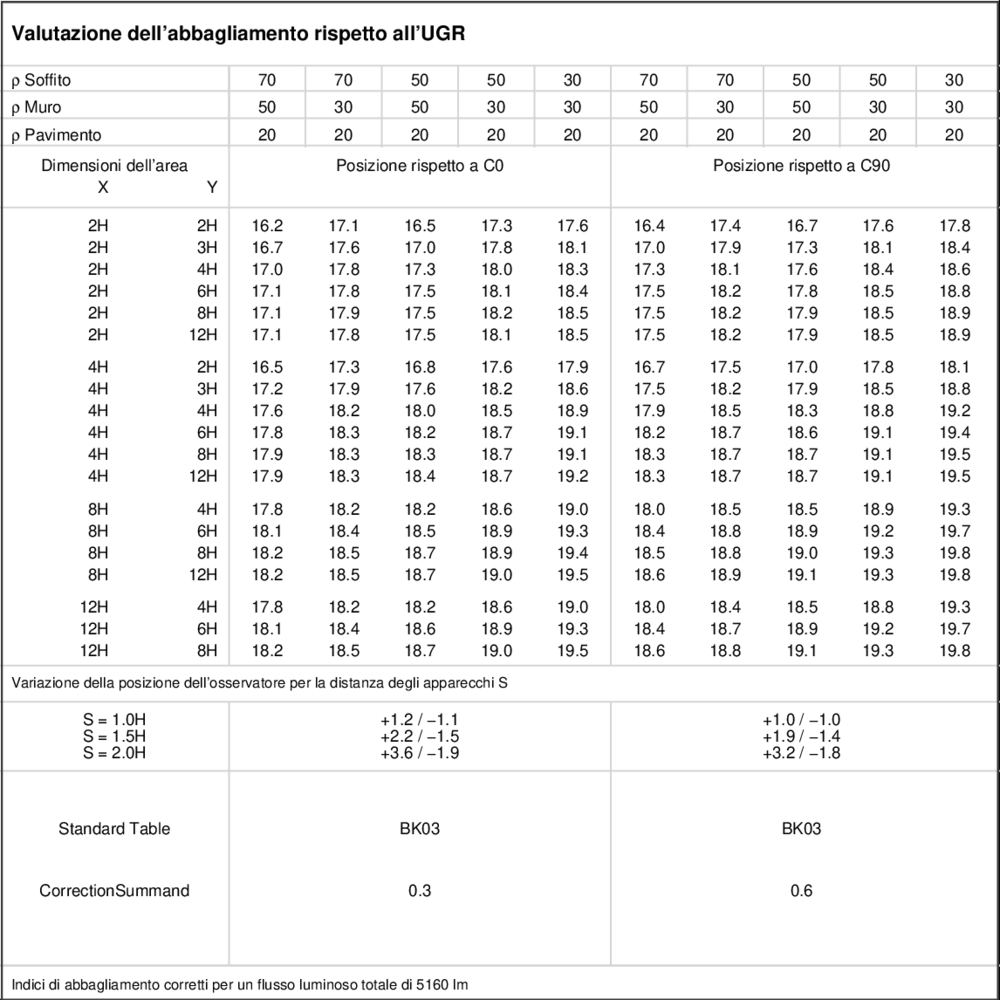

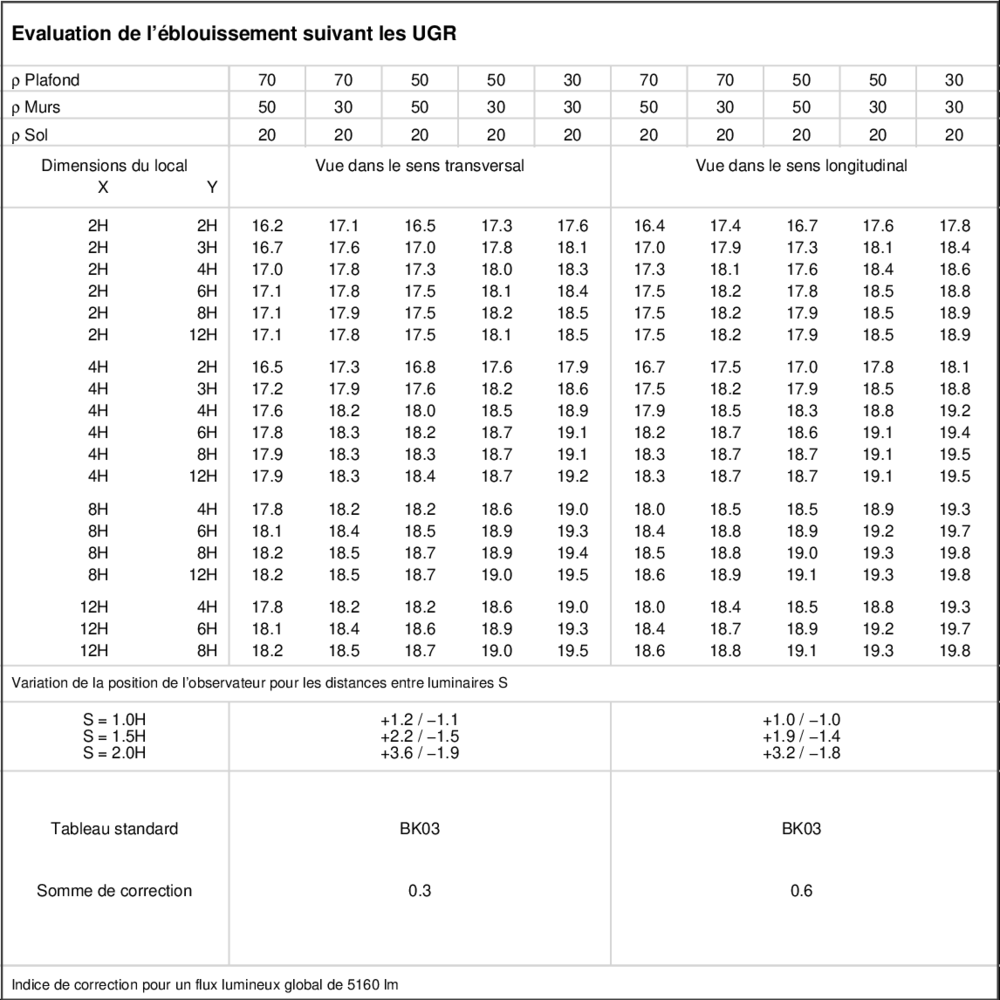

| UGR class | ≤ 19 |
| Rated luminous flux | 5160 lm |
| Luminaire efficiency | 166 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0210010 -
BEF.-SATZ EBRP 36W
|
Fixing kit for EBRP .36, parallel to the panels |
|
|
|
0210012 -
BEF.-SATZ EBRP 58W
|
Fixing kit for EBRP .58, parallel to the panels |
|
|
|
0210009 -
BEF.-SATZ EBRP 18W
|
Fixing kit for EBRP .18, parallel to the panels |
|
|
0204003 -
ZRO RAHMENÖFFNER
|
Tool for easy opening of the light frame |
|
|
0210013 -
BEF.-SATZ UNIV. 23-55MM/10-013
|
Universal fixing kit, clamping range 23-55 mm |
|
|
0210017 -
BEF.-SATZ UNIV. 45-80MM/10-017
|
Universal fixing kit, clamping range 45-80mm |
|
|
