LBK 0573DAFSW-0225K840 / SPZ0000061AQ
Product Description
Ceiling light from the LICHTBAUKASTEN product family. Optical control via Clear cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 2010 lm in light colour 840, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, black, protection rating IP20. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | SPZ0000061AQ |
| GTIN | 4029299532029 |
General
| Product category | Ceiling light |
| Range of application | Education | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 573 mm |
| Dimension B | 24 mm |
| Dimension H | 49 mm |
| Dimension A1 | 453 mm |
| Dimension AE | 453 mm |
| Net weight | 0.68 kg |
Mounting
| Mounting type | Attachment | Pendant |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–1.5 mm² |
Housing
| Colour | black |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 17.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Clear cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | > 25 |
| Rated luminous flux | 2010 lm |
| Luminaire efficiency | 118 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0204003 -
ZRO RAHMENÖFFNER
|
Tool for easy opening of the light frame |
|
|
| SPZ0000084 - LBK STAHLSEILABHÄNGUNG | Ceiling fixture with steel cable 3 m for pendant suspension |
|
|
| SPZ0000085AH - LBK-LED EINSPEISEDOSE-FWS | Round feed socket, fine-textured white, with 3 m steel cable and 3 m transparent cable for pendant suspension |
|
|
| SPZ0000085SI - LBK-LED EINSPEISEDOSE SI | Round feed socket, silver, with 3 m steel cable and 3 m transparent cable for pendant suspension |
|
|
Ceiling light from the LICHTBAUKASTEN product family. Optical control via Clear cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 2010 lm in light colour 840, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, black, protection rating IP20. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | SPZ0000061AQ |
| GTIN | 4029299532029 |
General
| Product category | Ceiling light |
| Range of application | Education | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 573 mm |
| Dimension B | 24 mm |
| Dimension H | 49 mm |
| Dimension A1 | 453 mm |
| Dimension AE | 453 mm |
| Net weight | 0.68 kg |
Mounting
| Mounting type | Attachment | Pendant |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–1.5 mm² |
Housing
| Colour | black |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 17.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Clear cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | > 25 |
| Rated luminous flux | 2010 lm |
| Luminaire efficiency | 118 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Download Center

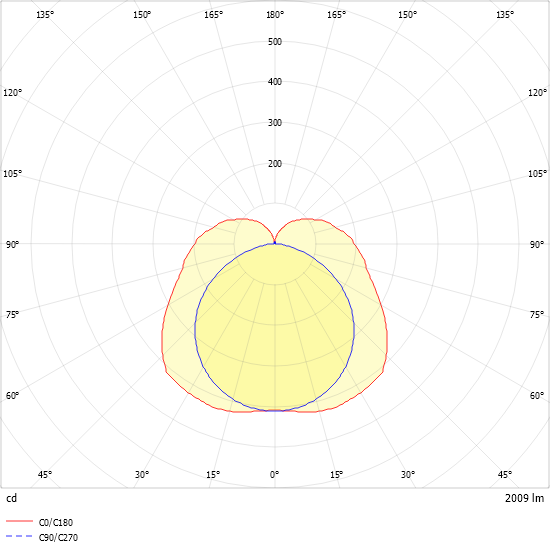

Light distribution curve
