M200-A130 NDWS840AS0450-RF / 0627765
Product Description
Ceiling light from the M200 product family. Optical control via Cover longitudinal prismatic, beam pattern asymmetric, angled beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 4400 lm in light colour 840, adjustable luminous flux: in steps. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Luminous flux in steps adjustable from 2800 - 4400 lm. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP65. Vandal-proof up to 75 joules. Surface mounting by the customer. Enclosed seal for protection type. With electronic electrical component xFlex. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0627765 |
| GTIN | 4029299556346 |
General
| Product category | Ceiling light |
| Range of application | Industry | Traffic routes |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1300 mm |
| Dimension B | 200 mm |
| Dimension H | 70 mm |
| Dimension A1 | 1200 mm |
| Dimension A2 | |
| Dimension K | 30 mm |
| Dimension K1 | 615 mm |
| Net weight | 9.600 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 2 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP65 |
| Impact resistance | IK11+ 75 J |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PC structured |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 35.0 W |
| Protection class | II |
Lighting technology
| Light distributor | Cover longitudinal prismatic |
| Light emission | direct |
| Light distribution | asymmetric |
| Beam characteristics | asymmetric beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 4400 lm |
| Maximum rated luminous flux | 2800 - 4400 lm |
| Luminaire efficiency | 126 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
| 0209352 - M200-PMH-TP-WS | Pendant multihanger, channel, white, 1 unit |
|
|
| 0209349 - M200-ZRP-PRH | Hanger for tube pendant M200,suit. f. tube 1xM16 or 2xM6, 1unit |
|
|
| 0209345 - M200-TP 100-WS | Channel, 1.00 m, white |
|
|
| 0209346 - M200-TP 138-WS | Channel, 1.38 m, white |
|
|
| 0209347 - M200-TP 490-WS | Channel, 4.90 m, white |
|
|
| 0209341 - M200-BLIND 069-WS | Dummy cover for channel, 0.69 m, white |
|
|
| 0209342 - M200-BLIND 100-WS | Dummy cover for channel, 1.00 m, white |
|
|
| 0209343 - M200-BLIND 130-WS | Dummy cover for channel, 1.30 m, white |
|
|
| 0209344 - M200-BLIND 160-WS | Dummy cover for channel, 1.60 m, white |
|
|
| 0209348 - M200-TPED-WS | End cap for channel, white, 1 unit |
|
|
| 0209231 - SURVIVOR TP25/60-LV | Straight connector for media support profiles, V2A, 1 piece |
|
|
0209329 -
ZRP-PR16X3-100WS
|
Pendant tube 16x3, M16 male thread connection, 1.0 m, white, 1 piece |
|
|
|
0209330 -
ZRP-PR16X3-060WS
|
Pendant tube 16x3, M16 male thread connection, 0.6 m, white, 1 piece |
|
|
Ceiling light from the M200 product family. Optical control via Cover longitudinal prismatic, beam pattern asymmetric, angled beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 4400 lm in light colour 840, adjustable luminous flux: in steps. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Luminous flux in steps adjustable from 2800 - 4400 lm. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP65. Vandal-proof up to 75 joules. Surface mounting by the customer. Enclosed seal for protection type. With electronic electrical component xFlex. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0627765 |
| GTIN | 4029299556346 |
General
| Product category | Ceiling light |
| Range of application | Industry | Traffic routes |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1300 mm |
| Dimension B | 200 mm |
| Dimension H | 70 mm |
| Dimension A1 | 1200 mm |
| Dimension K | 30 mm |
| Dimension K1 | 615 mm |
| Net weight | 9.600 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 2 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP65 |
| Impact resistance | IK11+ 75 J |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PC structured |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 35.0 W |
| Protection class | II |
Lighting technology
| Light distributor | Cover longitudinal prismatic |
| Light emission | direct |
| Light distribution | asymmetric |
| Beam characteristics | asymmetric beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 4400 lm |
| Maximum rated luminous flux | 2800 - 4400 lm |
| Luminaire efficiency | 126 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

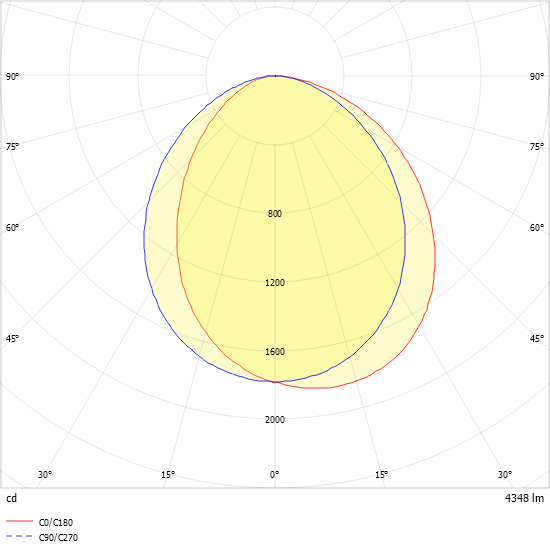

Light distribution curve
