M200-A069 NDWS840ESGS0225-RF / 0627611
Product Description
Ceiling light from the M200 product family. Optical control via Cover satin, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 2290 lm in light colour 840, adjustable luminous flux: in steps. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Luminous flux in steps adjustable from 1490 - 2290 lm. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP65. Surface mounting by the customer. Enclosed seal for protection type. With electronic electrical component xFlex. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0627611 |
| GTIN | 4029299556155 |
General
| Product category | Ceiling light |
| Range of application | Industry | Traffic routes |
| Guarantee | 5 years |
Dimensions
| Dimension L | 690 mm |
| Dimension B | 200 mm |
| Dimension H | 70 mm |
| Dimension A1 | 590 mm |
| Dimension A2 | |
| Dimension K | 28 mm |
| Dimension K1 | 35 mm |
| Net weight | 5.900 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 2 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP65 |
| Impact resistance | IK08 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–65 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | Glass (ESG) |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 18.0 W |
| Protection class | II |
Lighting technology
| Light distributor | Cover satin |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 2290 lm |
| Maximum rated luminous flux | 1490 - 2290 lm |
| Luminaire efficiency | 127 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
| 0209352 - M200-PMH-TP-WS | Pendant multihanger, channel, white, 1 unit |
|
|
| 0209349 - M200-ZRP-PRH | Hanger for tube pendant M200,suit. f. tube 1xM16 or 2xM6, 1unit |
|
|
| 0209345 - M200-TP 100-WS | Channel, 1.00 m, white |
|
|
| 0209346 - M200-TP 138-WS | Channel, 1.38 m, white |
|
|
| 0209347 - M200-TP 490-WS | Channel, 4.90 m, white |
|
|
| 0209341 - M200-BLIND 069-WS | Dummy cover for channel, 0.69 m, white |
|
|
| 0209342 - M200-BLIND 100-WS | Dummy cover for channel, 1.00 m, white |
|
|
| 0209343 - M200-BLIND 130-WS | Dummy cover for channel, 1.30 m, white |
|
|
| 0209344 - M200-BLIND 160-WS | Dummy cover for channel, 1.60 m, white |
|
|
| 0209348 - M200-TPED-WS | End cap for channel, white, 1 unit |
|
|
| 0209231 - SURVIVOR TP25/60-LV | Straight connector for media support profiles, V2A, 1 piece |
|
|
0209329 -
ZRP-PR16X3-100WS
|
Pendant tube 16x3, M16 male thread connection, 1.0 m, white, 1 piece |
|
|
|
0209330 -
ZRP-PR16X3-060WS
|
Pendant tube 16x3, M16 male thread connection, 0.6 m, white, 1 piece |
|
|
Ceiling light from the M200 product family. Optical control via Cover satin, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 2290 lm in light colour 840, adjustable luminous flux: in steps. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Luminous flux in steps adjustable from 1490 - 2290 lm. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP65. Surface mounting by the customer. Enclosed seal for protection type. With electronic electrical component xFlex. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0627611 |
| GTIN | 4029299556155 |
General
| Product category | Ceiling light |
| Range of application | Industry | Traffic routes |
| Guarantee | 5 years |
Dimensions
| Dimension L | 690 mm |
| Dimension B | 200 mm |
| Dimension H | 70 mm |
| Dimension A1 | 590 mm |
| Dimension K | 28 mm |
| Dimension K1 | 35 mm |
| Net weight | 5.900 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 2 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP65 |
| Impact resistance | IK08 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–65 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | Glass (ESG) |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 18.0 W |
| Protection class | II |
Lighting technology
| Light distributor | Cover satin |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 2290 lm |
| Maximum rated luminous flux | 1490 - 2290 lm |
| Luminaire efficiency | 127 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

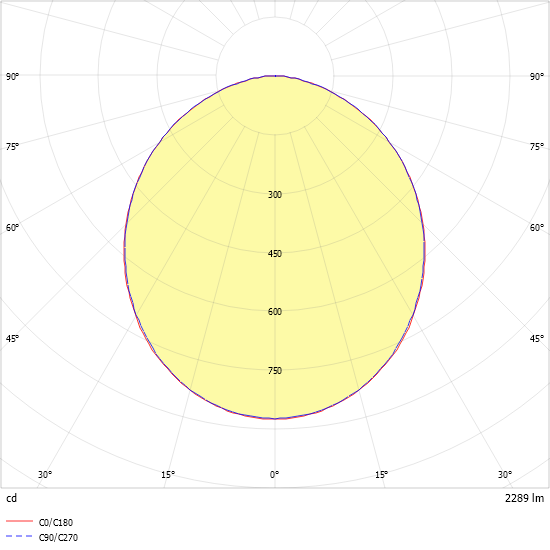

Light distribution curve
