M200-A130 NDWS840S0500-DB / 6068009
Product Description
Ceiling light from the M200 product family. Optical control via Cover longitudinal prismatic, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 4910 lm in light colour 840, adjustable luminous flux: in steps. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Luminous flux in steps adjustable from 3180 - 4910 lm. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP65. With electronic electrical component xFlex. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 6068009 |
| GTIN | 4029299168181 |
General
| Product category | Ceiling light |
| Range of application | Industry | Traffic routes |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1300 mm |
| Dimension B | 200 mm |
| Dimension H | 70 mm |
| Dimension A1 | 1200 mm |
| Dimension A2 | 163.5 mm |
| Dimension K | 30 mm |
| Dimension K1 | 615 mm |
| Net weight | 9.600 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 2 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP65 |
| Impact resistance | IK11+ 75 J |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PC structured |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 36.0 W |
| Protection class | II |
| Overvoltage protection | 10 kV |
Lighting technology
| Light distributor | Cover longitudinal prismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 4910 lm |
| Maximum rated luminous flux | 3180 - 4910 lm |
| Luminaire efficiency | 136 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
Ceiling light from the M200 product family. Optical control via Cover longitudinal prismatic, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 4910 lm in light colour 840, adjustable luminous flux: in steps. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Luminous flux in steps adjustable from 3180 - 4910 lm. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP65. With electronic electrical component xFlex. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 6068009 |
| GTIN | 4029299168181 |
General
| Product category | Ceiling light |
| Range of application | Industry | Traffic routes |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1300 mm |
| Dimension B | 200 mm |
| Dimension H | 70 mm |
| Dimension A1 | 1200 mm |
| Dimension A2 | 163.5 mm |
| Dimension K | 30 mm |
| Dimension K1 | 615 mm |
| Net weight | 9.600 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 2 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP65 |
| Impact resistance | IK11+ 75 J |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PC structured |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 36.0 W |
| Protection class | II |
| Overvoltage protection | 10 kV |
Lighting technology
| Light distributor | Cover longitudinal prismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 4910 lm |
| Maximum rated luminous flux | 3180 - 4910 lm |
| Luminaire efficiency | 136 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

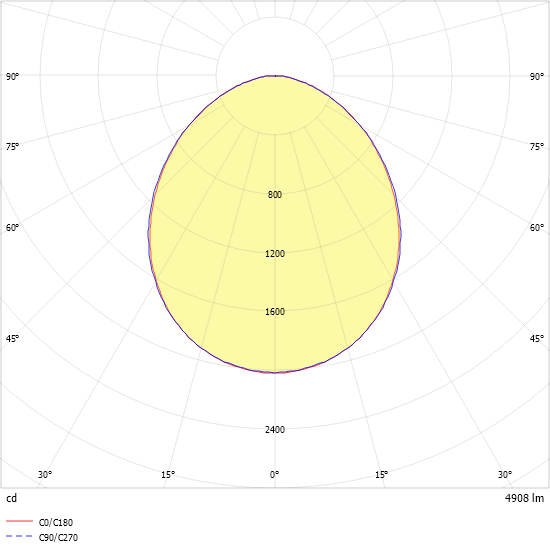

Light distribution curve
