M200-E160 NDWS830ESGS0550-RF / 0827971
Product Description
Ceiling light from the M200 product family. Optical control via Cover satin, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 5430 lm in light colour 830, adjustable luminous flux: in steps. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Luminous flux in steps adjustable from 3530 - 5430 lm. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP65. Built-in installation by the customer. Enclosed seal for protection type. With electronic electrical component xFlex. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0827971 |
| GTIN | 4029299557350 |
General
| Product category | Ceiling light |
| Range of application | Industry | Traffic routes |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1630 mm |
| Dimension B | 224 mm |
| Dimension H | 79 mm |
| Dimension A1 | 1200 mm |
| Dimension A2 | |
| Dimension BE | 210 mm |
| Dimension K | 30 mm |
| Dimension K1 | 770 mm |
| Dimension LE | 1620 mm |
| Net weight | 13.300 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 2 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP65 |
| Impact resistance | IK08 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | Glass (ESG) |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 44.0 W |
| Protection class | II |
Lighting technology
| Light distributor | Cover satin |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 5430 lm |
| Maximum rated luminous flux | 3530 - 5430 lm |
| Luminaire efficiency | 123 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
| 0209183 - M125/M200-ZBS E069/130/160 | Mounting 4x spring clips for M125/M200 recessed luminaires |
|
|
Ceiling light from the M200 product family. Optical control via Cover satin, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 5430 lm in light colour 830, adjustable luminous flux: in steps. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Luminous flux in steps adjustable from 3530 - 5430 lm. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP65. Built-in installation by the customer. Enclosed seal for protection type. With electronic electrical component xFlex. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0827971 |
| GTIN | 4029299557350 |
General
| Product category | Ceiling light |
| Range of application | Industry | Traffic routes |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1630 mm |
| Dimension B | 224 mm |
| Dimension H | 79 mm |
| Dimension A1 | 1200 mm |
| Dimension BE | 210 mm |
| Dimension K | 30 mm |
| Dimension K1 | 770 mm |
| Dimension LE | 1620 mm |
| Net weight | 13.300 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 2 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP65 |
| Impact resistance | IK08 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | Glass (ESG) |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 44.0 W |
| Protection class | II |
Lighting technology
| Light distributor | Cover satin |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 5430 lm |
| Maximum rated luminous flux | 3530 - 5430 lm |
| Luminaire efficiency | 123 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

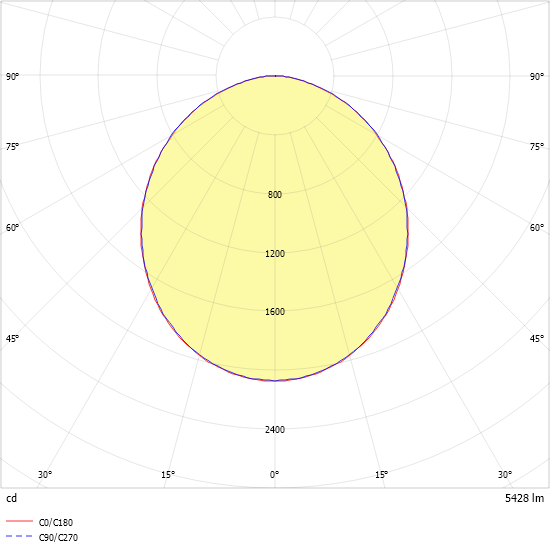

Light distribution curve
