ORTO-S DAFSW840MR0950 / SPG0630021AQ
Product Description
Free-standing luminaires from the ORTO product family. Optical control via Louvre, beam pattern symmetric, wide beam, light emission omnidirectional. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 9290 lm in light colour 840, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, black, protection rating IP20. With electronic electrical component DALI. Replacement by specialist. Rated voltage 220 - 240 V AC 50 - 60 Hz.
Order Information
| Item number | SPG0630021AQ |
| GTIN | 4029299505009 |
General
| Product category | Free-standing luminaires |
| Range of application | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1314 mm |
| Dimension B | 350 mm |
| Dimension H | 2142 mm |
| Net weight | 20.000 kg |
Mounting
| Mounting type | Standing |
| Mounting position | Floor |
| Connection type | Plug |
| Number of poles | 5 |
Housing
| Colour | black |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | |
| Cover material | PC clear (UV-stabilized) |
Electrical version
| Type of control | DALI |
| Nominal voltage | 220–240 V, 50–60 Hz |
| Rated power | 80.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Louvre |
| Light emission | omnidirectional |
| Light distribution | symmetric |
| Beam characteristics | wide beam |

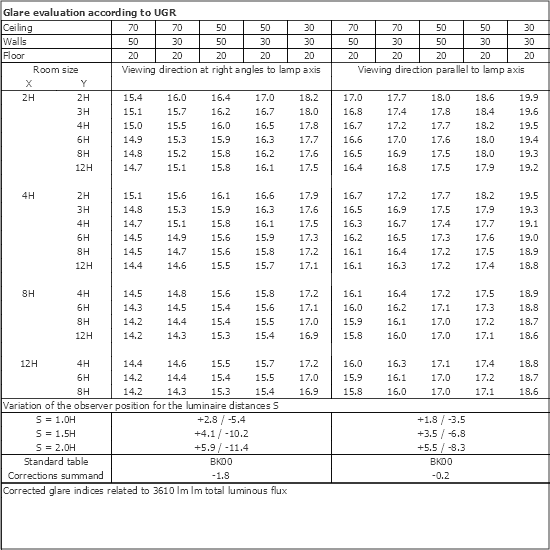

| UGR class | ≤ 16 |
| Rated luminous flux | 9290 lm |
| Luminaire efficiency | 116 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Farbwiedergabeindex R9 | 0 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
Free-standing luminaires from the ORTO product family. Optical control via Louvre, beam pattern symmetric, wide beam, light emission omnidirectional. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 9290 lm in light colour 840, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, black, protection rating IP20. With electronic electrical component DALI. Replacement by specialist. Rated voltage 220 - 240 V AC 50 - 60 Hz.
Order Information
| Item number | SPG0630021AQ |
| GTIN | 4029299505009 |
General
| Product category | Free-standing luminaires |
| Range of application | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1314 mm |
| Dimension B | 350 mm |
| Dimension H | 2142 mm |
| Net weight | 20.000 kg |
Mounting
| Mounting type | Standing |
| Mounting position | Floor |
| Connection type | Plug |
| Number of poles | 5 |
Housing
| Colour | black |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Cover material | PC clear (UV-stabilized) |
Electrical version
| Type of control | DALI |
| Nominal voltage | 220–240 V, 50–60 Hz |
| Rated power | 80.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Louvre |
| Light emission | omnidirectional |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 16 |
| Rated luminous flux | 9290 lm |
| Luminaire efficiency | 116 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
