PAT235FLWS830840W0250 / 0322723
Product Description
Downlight of the PAT product family. Optical control by Reflector, beam pattern symmetric, wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 2540 lm in light colour 830/840, adjustable luminous flux: in steps. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, white, protection rating IP20 IP44 room side. Cover made of PC structured. Fixing clips pre-fitted to the luminaire housing as standard. With electronic electrical component xFlex. Replacement by specialist possible. Nominal voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0322723 |
| GTIN | 4029299959802 |
General
| Product category | Downlight |
| Range of application | Office | Education |
| Guarantee | 5 years |
Dimensions
| Dimension H | 128 mm |
| Dimension D | 230 mm |
| Net weight | 0.680 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–1.5 mm² |
Housing
| System dimension | D 200 |
| Colour | white |
| Protection class | IP20 | IP44 room side |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–40 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PC structured |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 19.5 W |
| Protection class | II |
Lighting technology
| Light distributor | Reflector |
| Reflector | white |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |

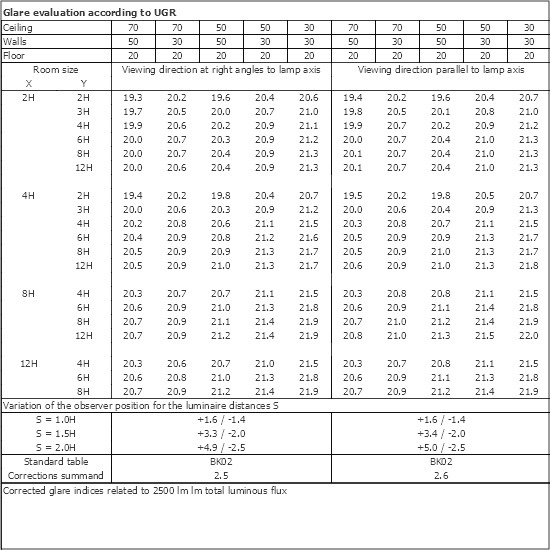

| UGR class | ≤ 22 |
| Rated luminous flux | 2540 lm |
| Luminaire efficiency | 130 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
| 0209617 - ZADR-PAT235-DM250 | Cover ring for PAT235 for ceiling openings with a diameter of 240 mm |
|
|
| 0209618 - ZADR-PAT235-DM300 | Cover ring for PAT235 for ceiling openings with a diameter of 290 mm |
|
|
| 0209619 - ZADR-PAT235-DM350 | Cover ring for PAT235 for ceiling openings with a diameter of 340 mm |
|
|
| 0209620 - ZADR-PAT235-DM410 | Cover ring for PAT235 for ceiling openings with a diameter of 400 mm |
|
