PFLO-NP1570DAKG840O0600 / 0931237
Product Description
Ceiling light from the PFLO product family. Optical control via Cover longitudinal prismatic, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 6020 lm in light colour 840, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Plastic, grey, protection rating IP66. Ceiling mounting via stainless steel fixing clips, can be snapped onto the luminaire. Pendant mounting via stainless steel wire fixing brackets, can be snapped onto the fixing clips (supplied with the luminaire). Horizontal and vertical wall mounting possible. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. A possible restriction of the area of application in the food industry can be found in the food certificate.
Note on harmful gas resistance: A special coating on the LEDs makes the product more resistant to harmful gases.
Order Information
| Item number | 0931237 |
| GTIN | 4029299573343 |
General
| Product category | Ceiling light |
| Range of application | Industry | Food |
| HACCP certified | Yes |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1570 mm |
| Dimension B | 110 mm |
| Dimension H | 100 mm |
| Dimension A1 | 1160 mm |
| Net weight | 2.950 kg |
Mounting
| Mounting type | Attachment | Pendant |
| Mounting position | Ceiling |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | grey |
| Protection class | IP66 |
| Impact resistance | IK08 |
| Glow-wire test | 850 °C |
| Permissible ambient temperature | -25–44 °C |
| Housing material | Plastic |
| Cover material | PC structured |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 44.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Cover longitudinal prismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | diffuse beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 6020 lm |
| Luminaire efficiency | 137 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 72.000 h |
| Rated life L80B10 (tq = 25 °C) | 72.000 h |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
| 0211749 - WPFLO-1570/R1X1450-PC | Replacement diffuser for PFLO-1570/R1X1450 made of PC Opal |
|
|
| 0211756 - ZIDVF-PFL.1570/R1X1450/5/2.5 | Through wiring for PFLO-.1570/R1X1450 5X2.5 mm² maximum 16 A |
|
|
| 0211759 - ZWF-V2A-PFL.-1570/R1x145 | Stainless steel V2A tray lock, PU 10 pcs. |
|
|
0210110 -
SK 158 SCHUTZKORB M.HALTER
|
Wire guard LxWxH=1600x120x140 f. hostile env./s.m. lum. |
|
|
0200251 -
TRA 008 KETTE GALV. VERZ.
|
Galvanised chain, max. 20kg , weight 0.25 kg/m |
|
|
0205887 -
VLBP
|
Plate with loop for ceiling fixing. max. 20kg, 1 pc |
|
|
0205888 -
VLKH
|
Carabiner hook, dimensions 50x25x5, max. 20kg, 1pc |
|
|
0209291 -
ZSP-RH 1.5M
|
Wire pendant with eyelet (D=4.2 mm) hook, D=1.2 mm, L=1.5 m, 1 set |
|
|
Ceiling light from the PFLO product family. Optical control via Cover longitudinal prismatic, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 6020 lm in light colour 840, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Plastic, grey, protection rating IP66. Ceiling mounting via stainless steel fixing clips, can be snapped onto the luminaire. Pendant mounting via stainless steel wire fixing brackets, can be snapped onto the fixing clips (supplied with the luminaire). Horizontal and vertical wall mounting possible. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. A possible restriction of the area of application in the food industry can be found in the food certificate.
Note on harmful gas resistance: A special coating on the LEDs makes the product more resistant to harmful gases.
Order Information
| Item number | 0931237 |
| GTIN | 4029299573343 |
General
| Product category | Ceiling light |
| Range of application | Industry | Food |
| HACCP certified | Yes |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1570 mm |
| Dimension B | 110 mm |
| Dimension H | 100 mm |
| Dimension A1 | 1160 mm |
| Net weight | 2.950 kg |
Mounting
| Mounting type | Attachment | Pendant |
| Mounting position | Ceiling |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | grey |
| Protection class | IP66 |
| Impact resistance | IK08 |
| Glow-wire test | 850 °C |
| Permissible ambient temperature | -25–44 °C |
| Housing material | Plastic |
| Cover material | PC structured |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 44.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Cover longitudinal prismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | diffuse beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 6020 lm |
| Luminaire efficiency | 137 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 72.000 h |
| Rated life L80B10 (tq = 25 °C) | 72.000 h |
Download Center

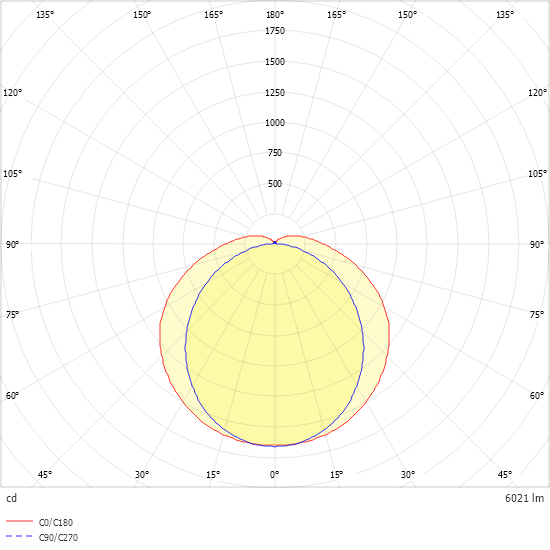

Light distribution curve
