PFLOA-NP1270NDKG840O0500-EDS3 / 0921251
Product Description

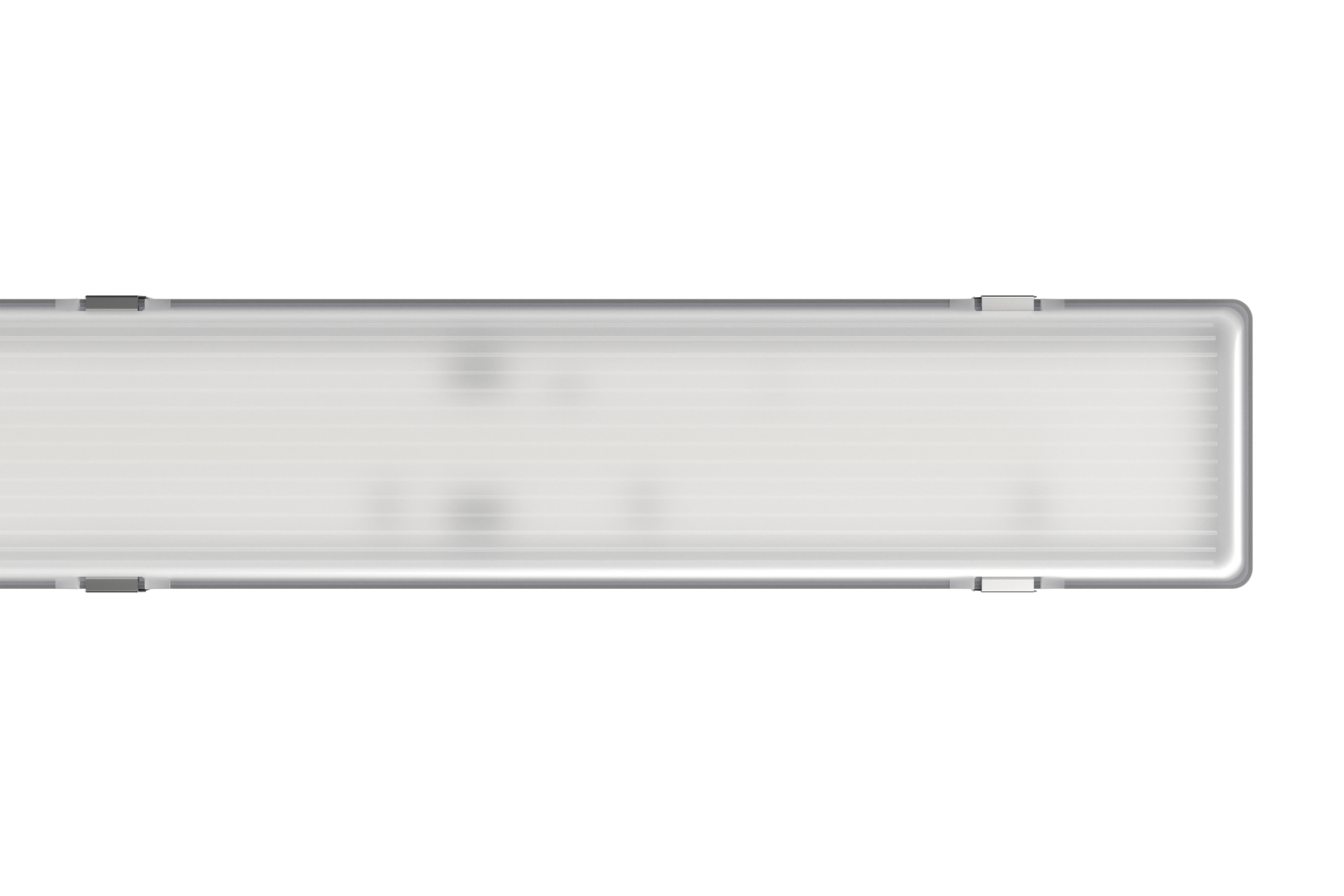

Ceiling light from the PFLO product family. Optical control via Cover longitudinal prismatic, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 4650 lm in light colour 840, luminous flux adjustable: in steps. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Plastic, grey, protection rating IP66. Ceiling mounting via stainless steel fixing clips, can be snapped onto the luminaire. Pendant mounting via stainless steel wire fixing brackets, can be snapped onto the fixing clips (supplied with the luminaire). Horizontal and vertical wall mounting possible. With electronic electrical component xFlex. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. A possible restriction of the area of application in the food industry can be found in the food certificate.
Note on harmful gas resistance: A special coating on the LEDs makes the product more resistant to harmful gases.
Order Information
| Item number | 0921251 |
| GTIN | 4029299573510 |
General
| Product category | Ceiling light |
| Range of application | Industry | Food |
| HACCP certified | Yes |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1270 mm |
| Dimension B | 110 mm |
| Dimension H | 100 mm |
| Dimension A1 | 860 mm |
| Net weight | 2.800 kg |
Mounting
| Mounting type | Attachment | Pendant |
| Mounting position | Ceiling |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | grey |
| Protection class | IP66 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Plastic |
| Cover material | PMMA structured |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 37.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Cover longitudinal prismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | diffuse beam |

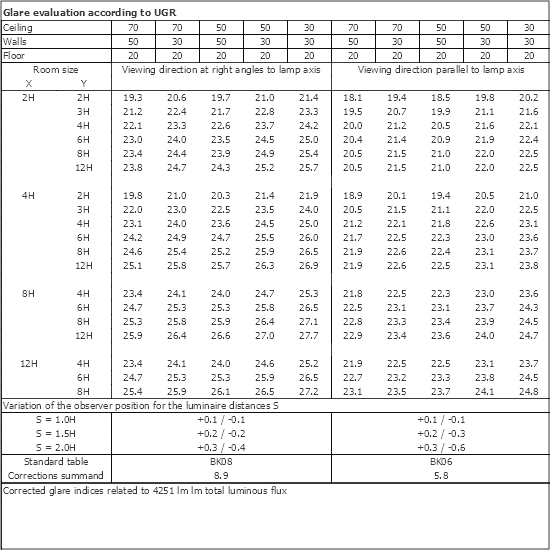

| UGR class | ≤ 25 |
| Rated luminous flux | 4650 lm |
| Luminaire efficiency | 126 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Emergency lighting
| Power supply system | Single battery |
| Wiring system | Permanent circuit |
| Light duration | 3 h |
| Rated luminous flux in emergency mode | 340 lm |
| Automatic self-test | Yes |
| Battery type | LiFePO4 |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
| 0211748 - WPFLO-1270/R1X1150-PMMA | Replacement diffuser for PFLO-1270/R1X1150 made of PMMA Opal |
|
|
| 0211754 - ZIDVF-PFL.1270/R1X1150/5/2.5 | Through wiring for PFLO-.1270/R1X1150 5X2.5 mm² maximum 16 A |
|
|
| 0211758 - ZWF-V2A-PFL.-1270/R1x115 | Stainless steel V2A tray lock, PU 8 pcs. |
|
|
0210109 -
SK 136 SCHUTZKORB M.HALTER
|
Wire guard LxWxH=1300x120x140 f. hostile env./s.m. lum. |
|
|
0200251 -
TRA 008 KETTE GALV. VERZ.
|
Galvanised chain, max. 20kg , weight 0.25 kg/m |
|
|
0205887 -
VLBP
|
Plate with loop for ceiling fixing. max. 20kg, 1 pc |
|
|
0205888 -
VLKH
|
Carabiner hook, dimensions 50x25x5, max. 20kg, 1pc |
|
|
0209291 -
ZSP-RH 1.5M
|
Wire pendant with eyelet (D=4.2 mm) hook, D=1.2 mm, L=1.5 m, 1 set |
|
|
Ceiling light from the PFLO product family. Optical control via Cover longitudinal prismatic, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 4650 lm in light colour 840, luminous flux adjustable: in steps. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Plastic, grey, protection rating IP66. Ceiling mounting via stainless steel fixing clips, can be snapped onto the luminaire. Pendant mounting via stainless steel wire fixing brackets, can be snapped onto the fixing clips (supplied with the luminaire). Horizontal and vertical wall mounting possible. With electronic electrical component xFlex. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. A possible restriction of the area of application in the food industry can be found in the food certificate.
Note on harmful gas resistance: A special coating on the LEDs makes the product more resistant to harmful gases.
Order Information
| Item number | 0921251 |
| GTIN | 4029299573510 |
General
| Product category | Ceiling light |
| Range of application | Industry | Food |
| HACCP certified | Yes |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1270 mm |
| Dimension B | 110 mm |
| Dimension H | 100 mm |
| Dimension A1 | 860 mm |
| Net weight | 2.800 kg |
Mounting
| Mounting type | Attachment | Pendant |
| Mounting position | Ceiling |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | grey |
| Protection class | IP66 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Plastic |
| Cover material | PMMA structured |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 37.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Cover longitudinal prismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | diffuse beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 4650 lm |
| Luminaire efficiency | 126 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Emergency lighting
| Power supply system | Single battery |
| Wiring system | Permanent circuit |
| Light duration | 3 h |
| Rated luminous flux in emergency mode | 340 lm |
| Automatic self-test | Yes |
| Battery type | LiFePO4 |
Download Center

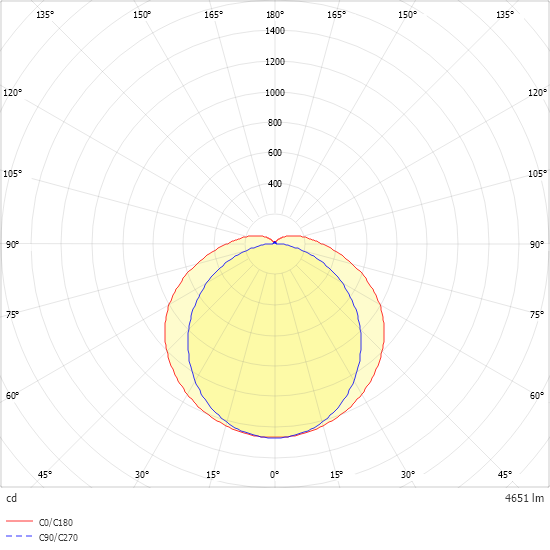

Light distribution curve
