PFLOA-R1X115/30ND-SET / 0921254//676
Product Description

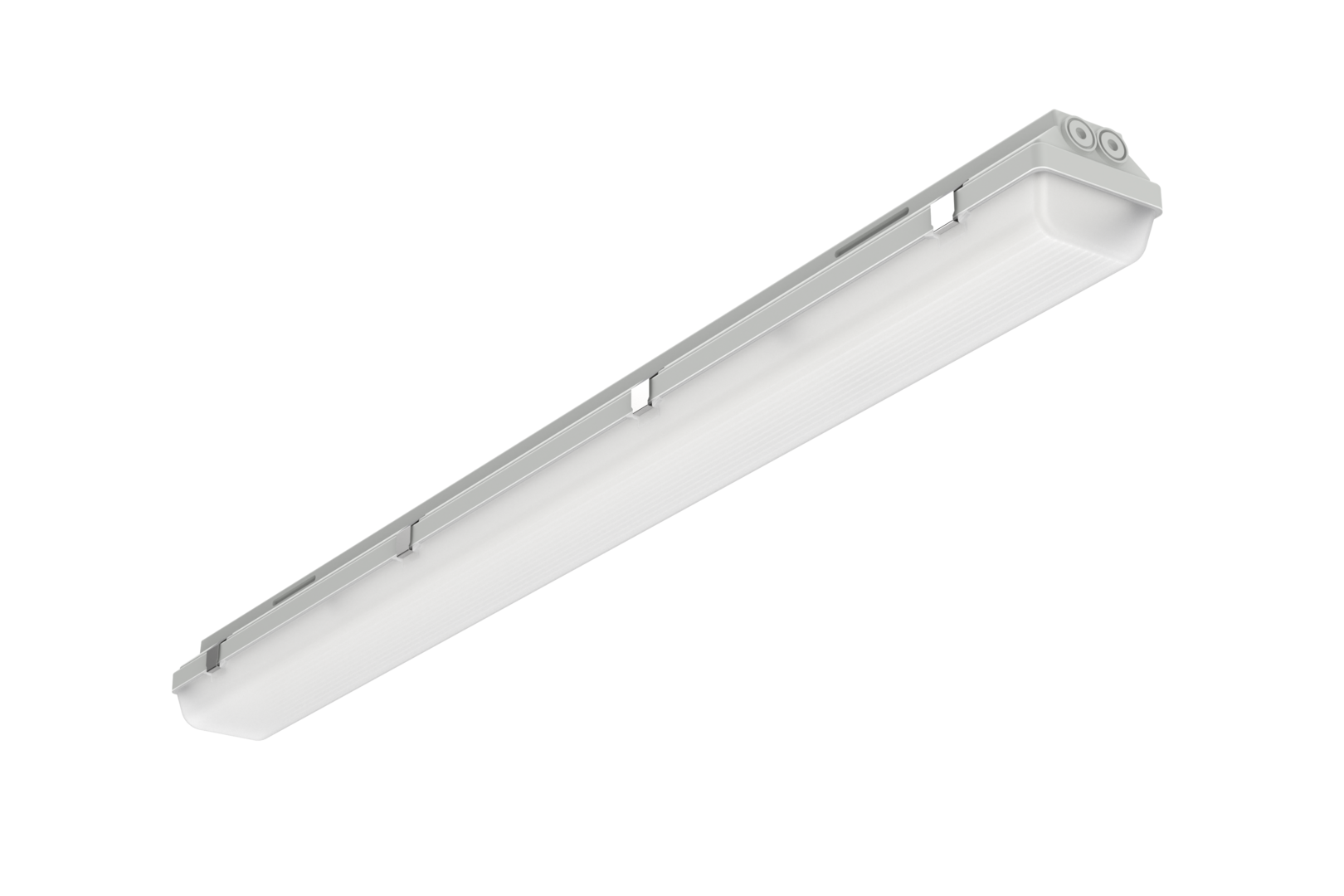

Ceiling light from the PFLO product family. Optical control via Cover longitudinal prismatic, beam pattern symmetric, diffuse beam, light emission direct. Lamps R-TUBE installed, Exchange by end customer possible. The luminaire generates a rated luminous flux of 4190 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Plastic, grey, protection rating IP66. Ceiling mounting via stainless steel fixing clips, can be snapped onto the luminaire. Pendant mounting via stainless steel wire fixing brackets, can be snapped onto the fixing clips (supplied with the luminaire). Horizontal and vertical wall mounting possible. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. A possible restriction of the area of application in the food industry can be found in the food certificate.
Order Information
| Item number | 0921254//676 |
| GTIN | 4029299573732 |
General
| Product category | Ceiling light |
| Range of application | Industry | Food |
| HACCP certified | Yes |
Dimensions
| Dimension L | 1270 mm |
| Dimension B | 110 mm |
| Dimension H | 100 mm |
| Dimension A1 | 860 mm |
| Net weight | 2.900 kg |
Mounting
| Mounting type | Attachment | Pendant |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | grey |
| Protection class | IP66 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–42 °C |
| Housing material | Plastic |
| Cover material | PMMA structured |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 32.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Cover longitudinal prismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | diffuse beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 4190 lm |
| Luminaire efficiency | 131 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 70.000 h |
| Rated life L80B10 (tq = 25 °C) | 60.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
| 0211748 - WPFLO-1270/R1X1150-PMMA | Replacement diffuser for PFLO-1270/R1X1150 made of PMMA Opal |
|
|
| 0211754 - ZIDVF-PFL.1270/R1X1150/5/2.5 | Through wiring for PFLO-.1270/R1X1150 5X2.5 mm² maximum 16 A |
|
|
| 0211758 - ZWF-V2A-PFL.-1270/R1x115 | Stainless steel V2A tray lock, PU 8 pcs. |
|
|
0210109 -
SK 136 SCHUTZKORB M.HALTER
|
Wire guard LxWxH=1300x120x140 f. hostile env./s.m. lum. |
|
|
0200251 -
TRA 008 KETTE GALV. VERZ.
|
Galvanised chain, max. 20kg , weight 0.25 kg/m |
|
|
0205887 -
VLBP
|
Plate with loop for ceiling fixing. max. 20kg, 1 pc |
|
|
0205888 -
VLKH
|
Carabiner hook, dimensions 50x25x5, max. 20kg, 1pc |
|
|
0209291 -
ZSP-RH 1.5M
|
Wire pendant with eyelet (D=4.2 mm) hook, D=1.2 mm, L=1.5 m, 1 set |
|
|
Ceiling light from the PFLO product family. Optical control via Cover longitudinal prismatic, beam pattern symmetric, diffuse beam, light emission direct. Lamps R-TUBE installed, Exchange by end customer possible. The luminaire generates a rated luminous flux of 4190 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Plastic, grey, protection rating IP66. Ceiling mounting via stainless steel fixing clips, can be snapped onto the luminaire. Pendant mounting via stainless steel wire fixing brackets, can be snapped onto the fixing clips (supplied with the luminaire). Horizontal and vertical wall mounting possible. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. A possible restriction of the area of application in the food industry can be found in the food certificate.
Order Information
| Item number | 0921254//676 |
| GTIN | 4029299573732 |
General
| Product category | Ceiling light |
| Range of application | Industry | Food |
| HACCP certified | Yes |
Dimensions
| Dimension L | 1270 mm |
| Dimension B | 110 mm |
| Dimension H | 100 mm |
| Dimension A1 | 860 mm |
| Net weight | 2.900 kg |
Mounting
| Mounting type | Attachment | Pendant |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | grey |
| Protection class | IP66 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–42 °C |
| Housing material | Plastic |
| Cover material | PMMA structured |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 32.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Cover longitudinal prismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | diffuse beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 4190 lm |
| Luminaire efficiency | 131 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 70.000 h |
| Rated life L80B10 (tq = 25 °C) | 60.000 h |
Download Center

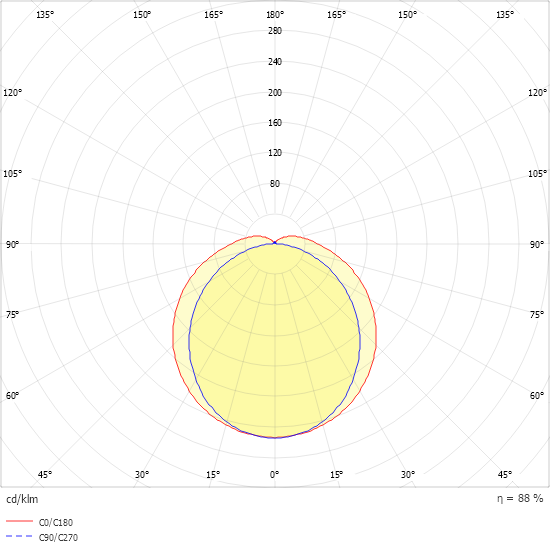

Light distribution curve
