PFSB1200NDLG840O0500-RS / 0921232BH
Product Description
Ceiling light from the PFSB product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, Exchange not possible. The luminaire generates a rated luminous flux of 4800 lm in light colour 840, luminous flux adjustable: in steps. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Luminous flux in steps adjustable from 4800 - 2400 lm. Housing made of Plastic, grey, protection rating IP65. Ceiling mounting via fixing clips (enclosed with the luminaire) made of stainless steel, can be snapped onto the luminaire (variable fixing spacing possible). Pendant mounting (chain, cable (accessory, to be ordered separately)) via stainless steel wire fixing clip, can be snapped onto the fixing clips (enclosed with the luminaire). Horizontal wall mounting possible without additional accessories. With electronic electrical component xFlex. Exchange not possible. Rated voltage 220 - 240 V AC 50 - 60 Hz. With light and motion detector. Detection range crosswise Ø 10 m, detection field 79 m².
These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires.
Order Information
| Item number | 0921232BH |
| GTIN | 4029299566529 |
General
| Product category | Ceiling light |
| Range of application | Industry | Food |
| Range of application HACCP | |
| Sensor | Movement | Light |
Dimensions
| Dimension L | 1320 mm |
| Dimension B | 66 mm |
| Dimension H | 77 mm |
| Net weight | 1.350 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 1.5–2.5 mm² |
Housing
| Colour | grey |
| Protection class | IP65 |
| Impact resistance | IK09 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–40 °C |
| Housing material | Plastic |
| Cover material | PC opal |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 50–60 Hz |
| Rated power | 40.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | > 25 |
| Rated luminous flux | 4800 lm |
| Maximum rated luminous flux | 4800 - 2400 lm |
| Luminaire efficiency | 120 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Farbwiedergabeindex R9 | |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG0 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
| Rated life L80B10 (tq = 25 °C) | 50.000 h |
Sensor technology
| Transverse detection range | Ø 10 m |
| Angle of coverage | 360° |
| Capture field | 79 m² |
| Optimum mounting height | 2.5 m |
| Maximum mounting height | 4 m |
| Brightness setpoint | 2 - 50 lx |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0210109 -
SK 136 SCHUTZKORB M.HALTER
|
Wire guard LxWxH=1300x120x140 f. hostile env./s.m. lum. |
|
|
| 0209373 - ZFB-PFSB | Remote control for configuring the PFSB...RS |
|
|
0209291 -
ZSP-RH 1.5M
|
Wire pendant with eyelet (D=4.2 mm) hook, D=1.2 mm, L=1.5 m, 1 set |
|
|
|
0209291/L500 -
ZSP-RH 5.0M
|
ACCESSORY WIRE PENDANT SET 5.0 M/EYELET AND HOOKS WITH 5.0-M CABLE |
|
|
0207880 -
ZSP-SK-3M
|
Wire pendant loop clamp, D = 2 mm, L = 3m, 1 piece, maximum 45 kg |
|
|
0200251 -
TRA 008 KETTE GALV. VERZ.
|
Galvanised chain, max. 20kg , weight 0.25 kg/m |
|
|
0205887 -
VLBP
|
Plate with loop for ceiling fixing. max. 20kg, 1 pc |
|
|
0205888 -
VLKH
|
Carabiner hook, dimensions 50x25x5, max. 20kg, 1pc |
|
|
| 0209372 - ZDB-PFSB | Ceiling fittings and bracket for PFSB, 1 set (spare part) |
|
|
| 0209470 - ZEL-SP-TD | Overvoltage protection for touch dim applications |
|
|
Ceiling light from the PFSB product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, Exchange not possible. The luminaire generates a rated luminous flux of 4800 lm in light colour 840, luminous flux adjustable: in steps. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Luminous flux in steps adjustable from 4800 - 2400 lm. Housing made of Plastic, grey, protection rating IP65. Ceiling mounting via fixing clips (enclosed with the luminaire) made of stainless steel, can be snapped onto the luminaire (variable fixing spacing possible). Pendant mounting (chain, cable (accessory, to be ordered separately)) via stainless steel wire fixing clip, can be snapped onto the fixing clips (enclosed with the luminaire). Horizontal wall mounting possible without additional accessories. With electronic electrical component xFlex. Exchange not possible. Rated voltage 220 - 240 V AC 50 - 60 Hz. With light and motion detector. Detection range crosswise Ø 10 m, detection field 79 m².
These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires.
Order Information
| Item number | 0921232BH |
| GTIN | 4029299566529 |
General
| Product category | Ceiling light |
| Range of application | Industry | Food |
| Sensor | Movement | Light |
Dimensions
| Dimension L | 1320 mm |
| Dimension B | 66 mm |
| Dimension H | 77 mm |
| Net weight | 1.350 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 1.5–2.5 mm² |
Housing
| Colour | grey |
| Protection class | IP65 |
| Impact resistance | IK09 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–40 °C |
| Housing material | Plastic |
| Cover material | PC opal |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 50–60 Hz |
| Rated power | 40.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | > 25 |
| Rated luminous flux | 4800 lm |
| Maximum rated luminous flux | 4800 - 2400 lm |
| Luminaire efficiency | 120 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG0 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
| Rated life L80B10 (tq = 25 °C) | 50.000 h |
Sensor technology
| Transverse detection range | Ø 10 m |
| Angle of coverage | 360° |
| Capture field | 79 m² |
| Optimum mounting height | 2.5 m |
| Maximum mounting height | 4 m |
| Brightness setpoint | 2 - 50 lx |
Download Center

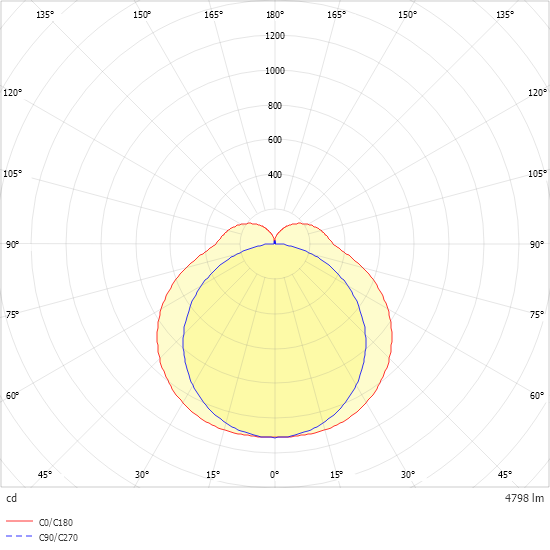

Light distribution curve
