PFSB1500NDLG840O0600-RS / 0921234BH
Product Description
Ceiling light from the PFSB product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, Exchange not possible. The luminaire generates a rated luminous flux of 6000 lm in light colour 840, luminous flux adjustable: in steps. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Luminous flux in steps adjustable from 6000 - 3600 lm. Housing made of Plastic, grey, protection rating IP65. Ceiling mounting via fixing clips (enclosed with the luminaire) made of stainless steel, can be snapped onto the luminaire (variable fixing spacing possible). Pendant mounting (chain, cable (accessory, to be ordered separately)) via stainless steel wire fixing clip, can be snapped onto the fixing clips (enclosed with the luminaire). Horizontal wall mounting possible without additional accessories. With electronic electrical component xFlex. Exchange not possible. Rated voltage 220 - 240 V AC 50 - 60 Hz. With light and motion detector. Detection range crosswise Ø 10 m, detection field 79 m².
These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires.
Order Information
| Item number | 0921234BH |
| GTIN | 4029299566536 |
General
| Product category | Ceiling light |
| Range of application | Industry | Food |
| Range of application HACCP | |
| Sensor | Movement | Light |
Dimensions
| Dimension L | 1620 mm |
| Dimension B | 66 mm |
| Dimension H | 77 mm |
| Net weight | 1.650 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 1.5–2.5 mm² |
Housing
| Colour | grey |
| Protection class | IP65 |
| Impact resistance | IK09 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–40 °C |
| Housing material | Plastic |
| Cover material | PC opal |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 50–60 Hz |
| Rated power | 50.0 W |
| Faktor Verlustleistung Betriebsgerät | keine R-TUBE |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | > 25 |
| Rated luminous flux | 6000 lm |
| Maximum rated luminous flux | 6000 - 3600 lm |
| Luminaire efficiency | 120 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Farbwiedergabeindex R9 | |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG0 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
| Rated life L80B10 (tq = 25 °C) | 50.000 h |
Sensor technology
| Transverse detection range | Ø 10 m |
| Angle of coverage | 360° |
| Capture field | 79 m² |
| Optimum mounting height | 2.5 m |
| Maximum mounting height | 4 m |
| Brightness setpoint | 2 - 50 lx |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
Controls and Sensors
| Item number - Designation | Product Description | Download | Wishlist |
| 0209373 - ZFB-PFSB | Remote control for configuring the PFSB...RS |
|
|
Electrical connection
| Item number - Designation | Product Description | Download | Wishlist |
| 0209470 - ZEL-SP-TD | Surge protection for touch-dimming applications |
|
|
Mounting and Fastening
| Item number - Designation | Product Description | Download | Wishlist |
0209291 -
ZSP-RH 1.5M
|
Wire pendant, L = 1.5 m, eyelet, D = 4.20 mm, hook, D = 1.20 mm, 1 set |
|
|
|
0209291/L500 -
ZSP-RH 5.0M
|
Rope pendulum set with eyelet and hook, length 5.0 m |
|
|
0207880 -
ZSP-SK-3M
|
Wire pendant loop clamp, diameter 2 mm, length 3 m, 1 piece, maximum load 45 kg |
|
|
0200251 -
TRA 008 KETTE GALV. VERZ.
|
Link chain to DIN 5686, diameter 3.1 mm, galvanised, maximum load 20 kg, length 1 m |
|
|
0205887 -
VLBP
|
Plate with eyelet for ceiling fixture, maximum load 20 kg, 1 piece |
|
|
0205888 -
VLKH
|
Snap hook, maximum load 20 kg, 1 piece |
|
|
| 0209372 - ZDB-PFSB | Ceiling fixture and bracket for PFSB, 1 set (spare part) |
|
|
Safety and Security
| Item number - Designation | Product Description | Download | Wishlist |
0210110 -
SK 158 SCHUTZKORB M.HALTER
|
Wire mesh guard for damp-proof/surface-mounted luminaires: LxWxH = 1600 x 113 x 136 mm |
|
|
Ceiling light from the PFSB product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, Exchange not possible. The luminaire generates a rated luminous flux of 6000 lm in light colour 840, luminous flux adjustable: in steps. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Luminous flux in steps adjustable from 6000 - 3600 lm. Housing made of Plastic, grey, protection rating IP65. Ceiling mounting via fixing clips (enclosed with the luminaire) made of stainless steel, can be snapped onto the luminaire (variable fixing spacing possible). Pendant mounting (chain, cable (accessory, to be ordered separately)) via stainless steel wire fixing clip, can be snapped onto the fixing clips (enclosed with the luminaire). Horizontal wall mounting possible without additional accessories. With electronic electrical component xFlex. Exchange not possible. Rated voltage 220 - 240 V AC 50 - 60 Hz. With light and motion detector. Detection range crosswise Ø 10 m, detection field 79 m².
These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires.
Order Information
| Item number | 0921234BH |
| GTIN | 4029299566536 |
General
| Product category | Ceiling light |
| Range of application | Industry | Food |
| Sensor | Movement | Light |
Dimensions
| Dimension L | 1620 mm |
| Dimension B | 66 mm |
| Dimension H | 77 mm |
| Net weight | 1.650 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 1.5–2.5 mm² |
Housing
| Colour | grey |
| Protection class | IP65 |
| Impact resistance | IK09 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–40 °C |
| Housing material | Plastic |
| Cover material | PC opal |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 50–60 Hz |
| Rated power | 50.0 W |
| Faktor Verlustleistung Betriebsgerät | keine R-TUBE |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | > 25 |
| Rated luminous flux | 6000 lm |
| Maximum rated luminous flux | 6000 - 3600 lm |
| Luminaire efficiency | 120 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG0 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
| Rated life L80B10 (tq = 25 °C) | 50.000 h |
Sensor technology
| Transverse detection range | Ø 10 m |
| Angle of coverage | 360° |
| Capture field | 79 m² |
| Optimum mounting height | 2.5 m |
| Maximum mounting height | 4 m |
| Brightness setpoint | 2 - 50 lx |
Download Center

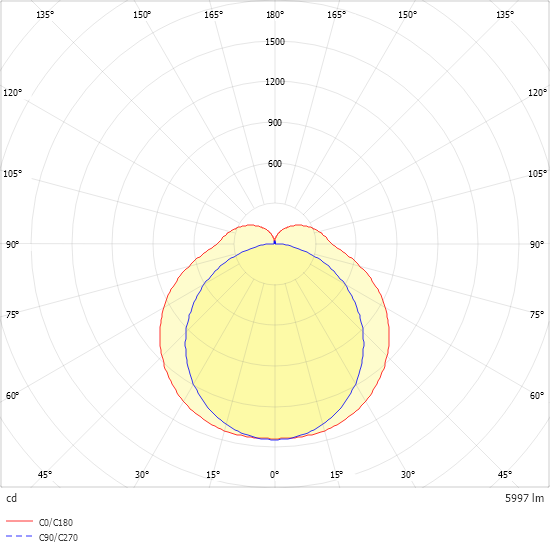

Light distribution curve
