PURELIGHT-RPDI119NDWS930O0450 / SPG0620522
Product Description
Pendant luminaire of the PURELIGHT Office product family. Optical control by Opal cover, beam pattern symmetric, diffuse beam, light emission direct/indirect. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 4300 lm in light colour 930, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, opal white, protection rating IP20. Cover made of PMMA opal. Luminaire ready for connection with pre-mounted, transparent connection cable and wire suspension as well as canopy. Wire pendant continuously height-adjustable with a length of 1.5 metres. With electronic electrical component On/Off. Replacement by specialist possible. Nominal voltage 220 - 240 V AC/DC 50 - 60 Hz. With DALI programming, the direct and indirect light components can be dimmed independently of each other. However, if the luminaire is controlled via DALI broadcast operation or Touch DIM, both light components are dimmed synchronously.
Order Information
| Item number | SPG0620522 |
| GTIN | 4029299917949 |
General
| Product category | Pendant luminaire |
| Range of application | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1182 mm |
| Dimension B | 95 mm |
| Dimension H | 95 mm |
| Dimension A1 | 1097 mm |
| Dimension A4 | 85 mm |
| Dimension AE | 1500 mm |
| Net weight | 2.400 kg |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 4 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | opal white |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA opal |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 37.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct/indirect |
| Light distribution | symmetric |
| Beam characteristics | diffuse beam |

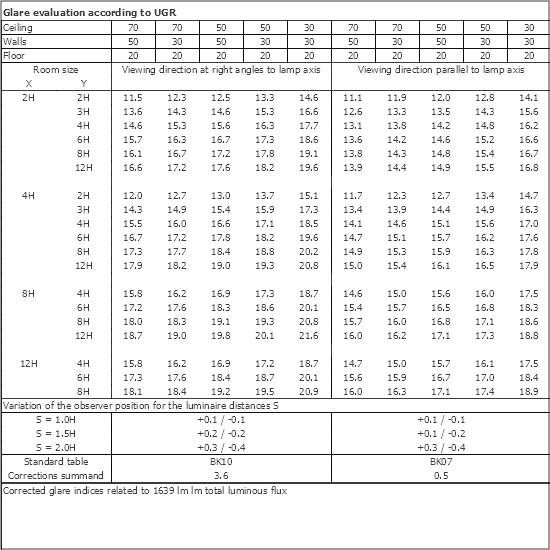

| UGR class | ≤ 19 |
| Rated luminous flux | 4300 lm |
| Luminaire efficiency | 116 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 90 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
