PURELIGHT-RPDI149NDWS930O0600 / SPG0620519
Product Description
Pendant luminaire of the PURELIGHT Office product family. Leuchte anschlussfertig mit vormontierter, transparenter Anschlussleitung und Seilabhängung sowie Baldachin. Seilpendel, Länge 1,5 m, stufenlos höhenverstellbar. Optical control by Opal cover, beam pattern symmetric, , light emission direct/indirect. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 6020 lm in light colour 930, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, opal white, protection rating IP20. Cover made of PMMA opal. With electronic electrical component On/Off. Replacement by specialist possible. Nominal voltage 220 - 240 V AC/DC 50 - 60 Hz. Bei einer DALI-Programmierung lassen sich der direkte und der indirekte Lichtanteil unabhängig voneinander dimmen. Wird die Leuchte jedoch über DALI-Broadcast-Betrieb oder Touch DIM gesteuert, erfolgt das Dimmen beider Lichtanteile ausschließlich synchron.
Order Information
| Item number | SPG0620519 |
| GTIN | 4029299917895 |
General
| Product category | Pendant luminaire |
| Range of application | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1482 mm |
| Dimension B | 95 mm |
| Dimension H | 95 mm |
| Dimension A1 | 1397 mm |
| Dimension A4 | 85 mm |
| Dimension AE | 1500 mm |
| Net weight | 2.800 kg |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 4 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | opal white |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA opal |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 51.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct/indirect |
| Light distribution | symmetric |

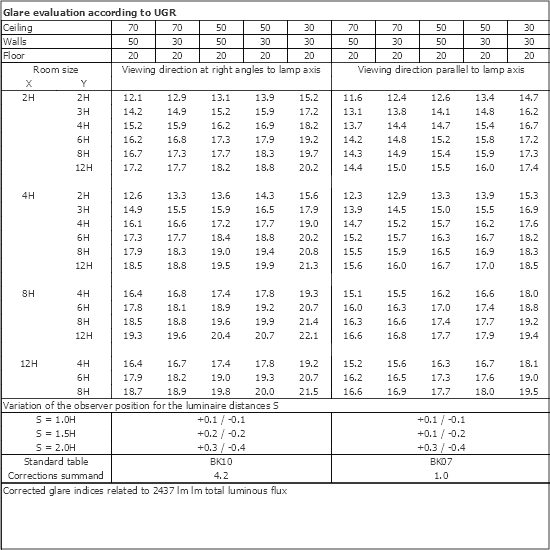

| UGR class | ≤ 19 |
| Rated luminous flux | 6020 lm |
| Luminaire efficiency | 118 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 90 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Download Center
Approvals:
Pendant luminaire of the PURELIGHT Office product family. Leuchte anschlussfertig mit vormontierter, transparenter Anschlussleitung und Seilabhängung sowie Baldachin. Seilpendel, Länge 1,5 m, stufenlos höhenverstellbar. Optical control by Opal cover, beam pattern symmetric, , light emission direct/indirect. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 6020 lm in light colour 930, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, opal white, protection rating IP20. Cover made of PMMA opal. With electronic electrical component On/Off. Replacement by specialist possible. Nominal voltage 220 - 240 V AC/DC 50 - 60 Hz. Bei einer DALI-Programmierung lassen sich der direkte und der indirekte Lichtanteil unabhängig voneinander dimmen. Wird die Leuchte jedoch über DALI-Broadcast-Betrieb oder Touch DIM gesteuert, erfolgt das Dimmen beider Lichtanteile ausschließlich synchron.
Order Information
| Item number | SPG0620519 |
| GTIN | 4029299917895 |
General
| Product category | Pendant luminaire |
| Range of application | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1482 mm |
| Dimension B | 95 mm |
| Dimension H | 95 mm |
| Dimension A1 | 1397 mm |
| Dimension A4 | 85 mm |
| Dimension AE | 1500 mm |
| Net weight | 2.800 kg |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 4 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | opal white |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA opal |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 51.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct/indirect |
| Light distribution | symmetric |
| UGR class | ≤ 19 |
| Rated luminous flux | 6020 lm |
| Luminaire efficiency | 118 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 90 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Download Center
Light distribution curve
Approvals:
Attributes:
