PURELIGHT-RP179 DASI8TWO0650 / SPG0630386SI
Product Description
Pendant luminaire from the PURELIGHT product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct/indirect. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 6700 lm in light colour 8TW, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Plastic, silver, protection rating IP20. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | SPG0630386SI |
| GTIN | 4029299552720 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1789 mm |
| Dimension B | 95 mm |
| Dimension H | 95 mm |
| Dimension A1 | 1606 mm |
| Dimension A4 | 85 mm |
| Dimension AE | 1500 mm |
| Net weight | 3.600 kg |
Mounting
| Mounting type | Pendant |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | silver |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Plastic |
| Cover material | PMMA opal |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 57.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct/indirect |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 6700 lm |
| Luminaire efficiency | 118 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 2700–6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
Pendant luminaire from the PURELIGHT product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct/indirect. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 6700 lm in light colour 8TW, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Plastic, silver, protection rating IP20. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | SPG0630386SI |
| GTIN | 4029299552720 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1789 mm |
| Dimension B | 95 mm |
| Dimension H | 95 mm |
| Dimension A1 | 1606 mm |
| Dimension A4 | 85 mm |
| Dimension AE | 1500 mm |
| Net weight | 3.600 kg |
Mounting
| Mounting type | Pendant |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | silver |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Plastic |
| Cover material | PMMA opal |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 57.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct/indirect |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 6700 lm |
| Luminaire efficiency | 118 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 2700–6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

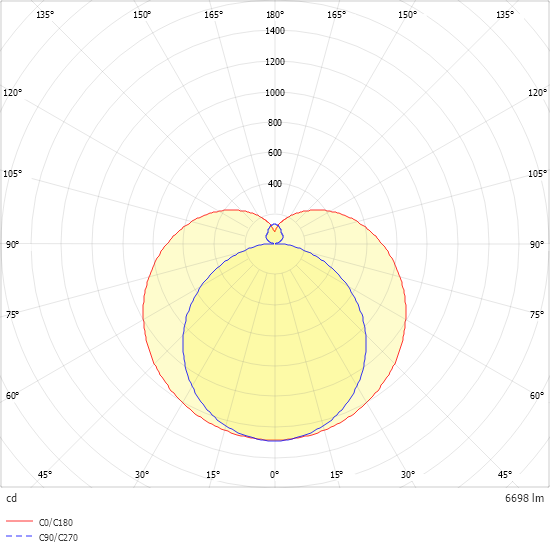

Light distribution curve
Approvals:
Attributes:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 m
