REVIO-AE1560FLWS830840MPS0600 | 0627989
Product Description
Luminous flux in steps adjustable from 3000 - 6000 lm.
Order Information
| Item number | 0627989 |
| GTIN | 4029299995381 |
| Delivery promise |
2 working days (ex warehouse Jungingen)
i
The specified delivery promise applies to standard commercial quantities. It may vary for larger purchase quantities. |
General
| Product category | Ceiling light |
| Range of application | Education | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1560 mm |
| Dimension B | 325 mm |
| Dimension H | 79 mm |
| Dimension A1 | 850 mm |
| Dimension A2 | 236 mm |
| Dimension A4 | 363 mm |
| Dimension AB | 1560 mm |
| Net weight | 4.225 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.75–2.5 mm² |
| Adjustability | static |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP40 |
| Impact resistance | IK05 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–30 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PC structured (UV-stabilized) |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 32.0 W |
| Protection class | II |
Lighting technology
| Light distributor | Microprismatic cover with an opal diffuser |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |

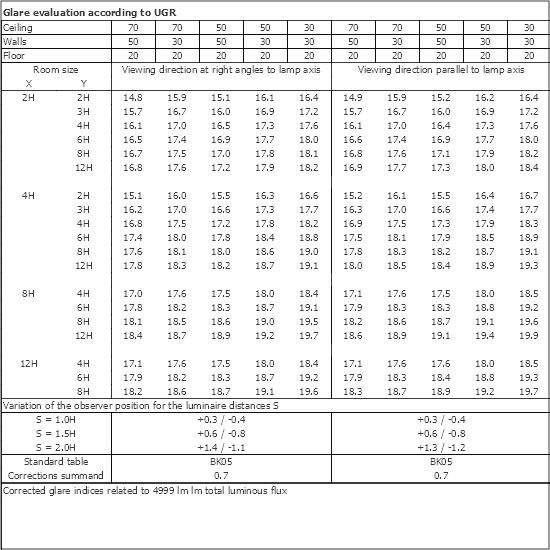

| UGR class | ≤ 19 |
| Rated luminous flux | 5000 lm |
| Maximum rated luminous flux | 3000 - 6000 lm |
| Luminaire efficiency | 156 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 60.000 h |
| Rated life L80B10 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
Electrical connection
| Item number - Designation | Product Description | Download | Wishlist |
| 0209671 - ZADV-REVIO-AE1560/3/1.5 | External through wiring for the REVIO luminaire series, 3 × 1.5 mm², length 1860 mm |
|
|
