REY NX 2DAFWS840TB1000 / 0332708AH
Product Description
Spotlight of the REY NX product family. Optical control by Reflector, beam pattern symmetric, deep-wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 10130 lm in light colour 840, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP20. Cover made of . Mounting via 3-circuit lighting track adapter. With electronic electrical component DALI-2. Replacement by specialist possible. Nominal voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0332708AH |
| GTIN | 4029299939415 |
General
| Product category | Spotlight |
| Range of application | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension L | 510 mm |
| Dimension B | 87 mm |
| Dimension H | 185 mm |
| Net weight | 2.590 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Power rail |
| Connection type | Power rail adapter |
| Number of poles | 3 |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 70.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Reflector |
| Reflector | matt |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | deep-wide beam |

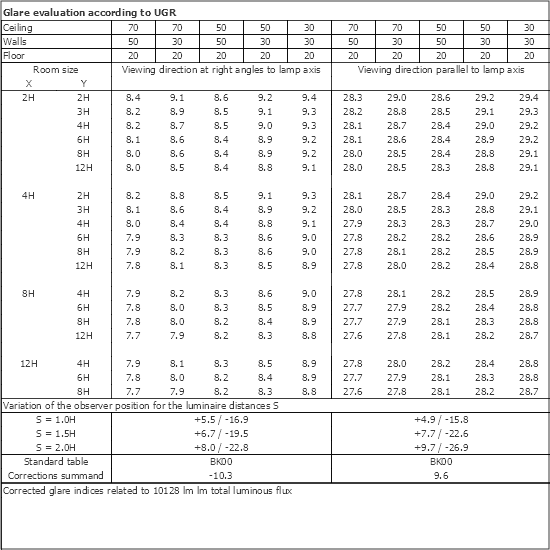

| UGR class | > 25 |
| Rated luminous flux | 10130 lm |
| Luminaire efficiency | 145 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 95.000 h |
| Rated life L80B10 (tq = 25 °C) | 95.000 h |
Download Center
