V-LENSES-D152-7DASI830B0500 / 1532565SI
Product Description
Gear tray V-LENSES from the RIDI LINIA product family. Optical control via Lens, beam pattern symmetric, wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 5280 lm in light colour 830, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of . Housing made of Aluminium, silver, similar to RAL 9006, protection rating IP20. Mounting: Simple clipping in for electrical contacting and mechanical fastening in the system-bound LINIA trunking system. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 1532565SI |
| GTIN | 4029299571394 |
General
| Product category | Gear tray |
| Range of application | Education | Office | Retail | Industry |
Dimensions
| Dimension L | 1505 mm |
| Dimension B | 115 mm |
| Dimension H | 80 mm |
| Net weight | 3.771 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Trunking |
| Connection type | Power rail adapter |
| Number of poles | 7 |
Housing
| Colour | silver, similar to RAL 9006 |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 34.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Lens |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |

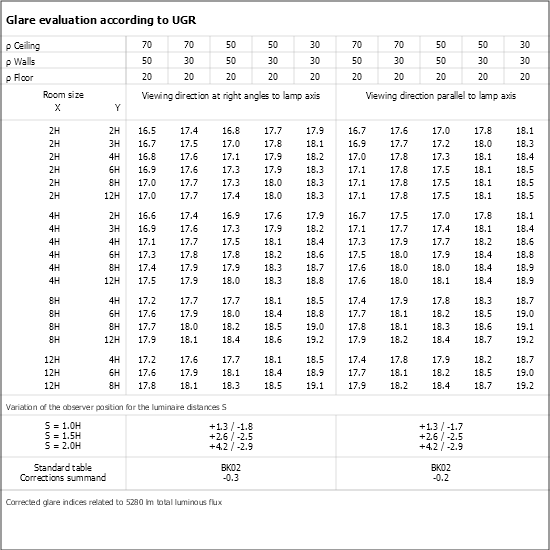

| UGR class | ≤ 19 |
| Rated luminous flux | 5280 lm |
| Luminaire efficiency | 155 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
