VL1GL1501-5FLWS865BE1500 | 1552017
Product Description
Gear tray VL1GL from the RIDI LINIA product family. Optical control via Lens, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 14770 lm in light colour 865. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Luminous flux in steps adjustable from 8590 - 14770 lm. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP21. Mounting: Simple clipping in for electrical contacting and mechanical fastening in the system-bound LINIA trunking system. With electronic electrical component xFlex. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Note LABS: These luminaries are suitable for use in paint processing operations outside the painting area or outside of solvent processing areas.
These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires.
They are suitable for use in sales, storage and administrative areas for packaged food.
Order Information
| Item number | 1552017 |
| GTIN | 4029299607482 |
| Delivery commitment | on demand |
General
| Product category | Gear tray |
| Product sub-category | VL1GL |
| Range of application | Industry | Food |
| Range of application HACCP | Packaged food |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1500 mm |
| Dimension B | 67 mm |
| Dimension H | 61 mm |
| Net weight | 2.429 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Trunking |
| Connection type | Power rail adapter |
| Number of poles | 5 |
| Adjustability | static |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP21 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–37 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA clear |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 84.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Lens |
| Glare control | Lens |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |

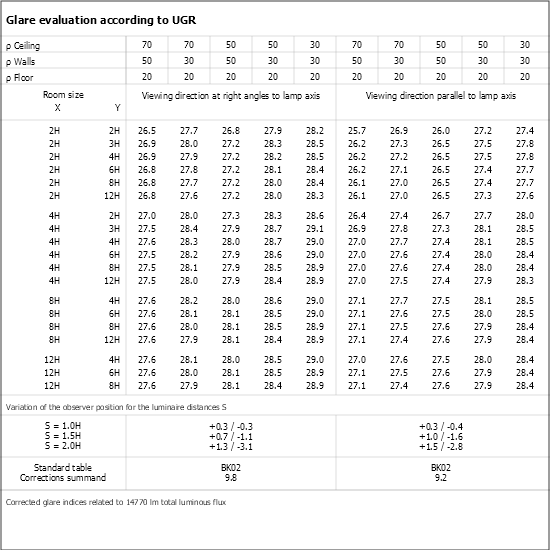

| UGR class | > 25 |
| Rated luminous flux | 14770 lm |
| Maximum rated luminous flux | 8590 - 14770 lm |
| Luminaire efficiency | 176 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Farbwiedergabeindex R9 | 0 |
| Colour temperature | 6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 95.000 h |
| Rated life L80B10 (tq = 25 °C) | 79.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
