VL1GW1500DAWS940M9P0700 / 1532581
Product Description
Gear tray VL1GW from the RIDI LINIA product family. Optical control via Lens, beam pattern symmetric, wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 6920 lm in light colour 940. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of . Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP20. Mounting: Simple clipping in for electrical contacting and mechanical fastening in the system-bound LINIA trunking system. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 1532581 |
| GTIN | 4029299572803 |
General
| Product category | Gear tray |
| Range of application | Industry |
Dimensions
| Dimension L | 1500 mm |
| Dimension B | 95 mm |
| Dimension H | 90 mm |
| Net weight | 3.225 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Trunking |
| Connection type | Power rail adapter |
| Number of poles | 7 |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–40 °C |
| Housing material | Aluminium |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 49.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Lens |
| Reflector | high gloss |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |

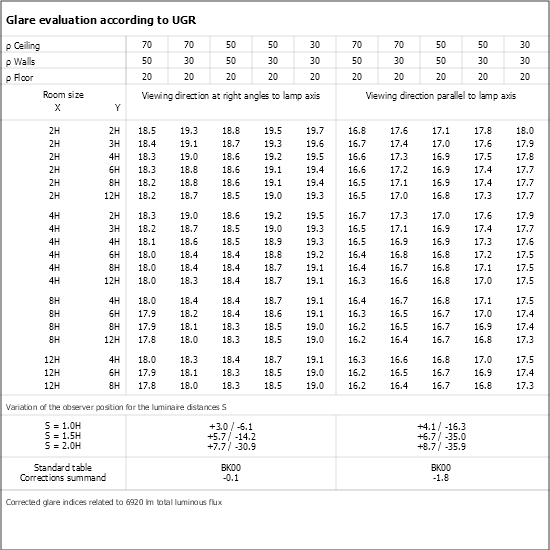

| UGR class | ≤ 19 |
| Rated luminous flux | 6920 lm |
| Luminaire efficiency | 141 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 90 |
| Farbwiedergabeindex R9 | 43 |
| Colour temperature | 4000 K |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 82.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
