VLGFL1991-7DAWS865E1100 / 1561395

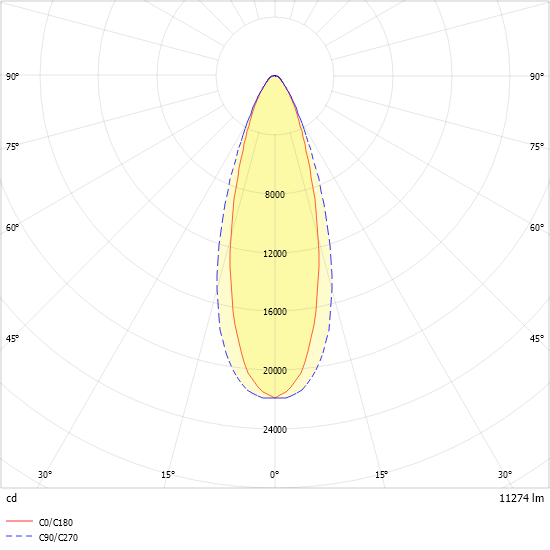

Gear tray VLGFL from the RIDI LINIA product family. Optical control via Lens, beam pattern symmetric, narrow beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 11270 lm in light colour 865. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP54. Mounting: Simple clipping in for electrical contacting and mechanical fastening in the system-bound LINIA trunking system. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.

Gear tray material: profiled, in galvanised coated steel

Note on harmful gas resistance: A special coating on the LEDs makes the product more resistant to harmful gases.

Note LABS: These luminaries are suitable for use in paint processing operations outside the painting area or outside of solvent processing areas.

Note regarding refurbishing: When replacing T16/T26 gear trays with LED gear trays, two safety clamps each are to be mounted to secure the gear tray in the trunking (see trunking accessories).

Note: Minimum operating temperature of 0°C.

Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. A possible restriction of the area of application in the food industry can be found in the food certificate.
