VLGFP-SN1501-5NDWS840O0700 / 1551318
Product Description
Gear tray VLGFP-SN from the RIDI LINIA product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 6700 lm in light colour 840. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP20 IP40 room side. Mounting: Simple clipping in for electrical contacting and mechanical fastening in the system-bound LINIA trunking system. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz. With light and motion detector. Transverse detection range Ø 6 m, detection field 28 m². Gear tray with light and motion sensor. Colour coding blue for mounting in VLTM-5, VLTM-7 or VLTM-11. The sensor activates the controller in the gear tray, i.e. no additional control lines are necessary. Each gear tray works independently, it is not possible to add slave gear trays. Factory setting: After the last detected movement, the light level remains at 100% for the follow-up time of 5 minutes. After that, dimming to 10%. After a further 30 seconds, the luminaire is switched off. Individual setting possible via app.
Note regarding refurbishing: When replacing T16/T26 gear trays with LED gear trays, two safety clamps each are to be mounted to secure the gear tray in the trunking (see trunking accessories).
Order Information
| Item number | 1551318 |
| GTIN | 4029299558555 |
General
| Product category | Gear tray |
| Range of application | Education | Office | Retail | Industry |
| Sensor | Light | Movement |
Dimensions
| Dimension L | 1500 mm |
| Dimension B | 67 mm |
| Dimension H | 66 mm |
| Net weight | 1.909 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Trunking |
| Connection type | Power rail adapter |
| Number of poles | 5 |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 | IP40 room side |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 52.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | diffuse beam |

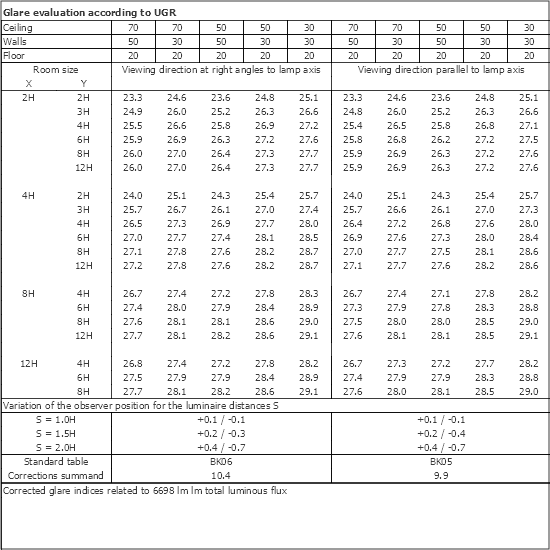

| UGR class | > 25 |
| Rated luminous flux | 6700 lm |
| Luminaire efficiency | 129 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Sensor technology
| Transverse detection range | Ø 6 m |
| Presence detection range | Ø 3 m |
| Angle of coverage | 360° |
| Capture field | 28 m² |
| Optimum mounting height | 2.5 m |
| Maximum mounting height | 4 m |
| Brightness setpoint | 10 - 1000 lx |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
Gear tray VLGFP-SN from the RIDI LINIA product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 6700 lm in light colour 840. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP20 IP40 room side. Mounting: Simple clipping in for electrical contacting and mechanical fastening in the system-bound LINIA trunking system. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz. With light and motion detector. Transverse detection range Ø 6 m, detection field 28 m². Gear tray with light and motion sensor. Colour coding blue for mounting in VLTM-5, VLTM-7 or VLTM-11. The sensor activates the controller in the gear tray, i.e. no additional control lines are necessary. Each gear tray works independently, it is not possible to add slave gear trays. Factory setting: After the last detected movement, the light level remains at 100% for the follow-up time of 5 minutes. After that, dimming to 10%. After a further 30 seconds, the luminaire is switched off. Individual setting possible via app.
Note regarding refurbishing: When replacing T16/T26 gear trays with LED gear trays, two safety clamps each are to be mounted to secure the gear tray in the trunking (see trunking accessories).
Order Information
| Item number | 1551318 |
| GTIN | 4029299558555 |
General
| Product category | Gear tray |
| Range of application | Education | Office | Retail | Industry |
| Sensor | Light | Movement |
Dimensions
| Dimension L | 1500 mm |
| Dimension B | 67 mm |
| Dimension H | 66 mm |
| Net weight | 1.909 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Trunking |
| Connection type | Power rail adapter |
| Number of poles | 5 |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 | IP40 room side |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 52.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | diffuse beam |
| UGR class | > 25 |
| Rated luminous flux | 6700 lm |
| Luminaire efficiency | 129 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Sensor technology
| Transverse detection range | Ø 6 m |
| Presence detection range | Ø 3 m |
| Angle of coverage | 360° |
| Capture field | 28 m² |
| Optimum mounting height | 2.5 m |
| Maximum mounting height | 4 m |
| Brightness setpoint | 10 - 1000 lx |
