VLGFP1501-5NDWS840B0800 / 1551008

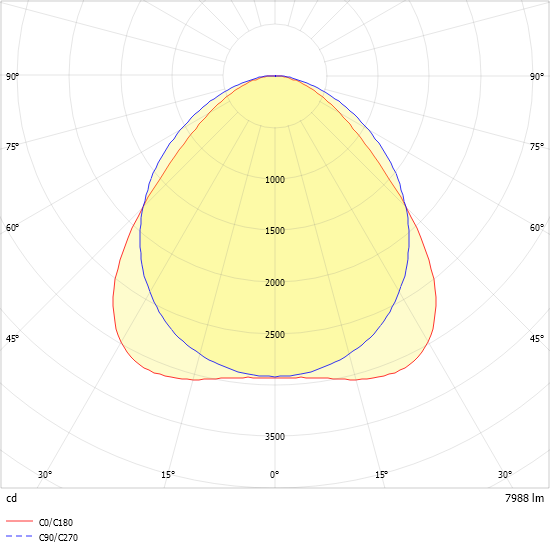

Gear tray VLGFP from the RIDI LINIA product family. Optical control via Cover longitudinal prismatic, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 7990 lm in light colour 840. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP54. Mounting: Simple clipping in for electrical contacting and mechanical fastening in the system-bound LINIA trunking system. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.

Gear tray material: profiled, in galvanised coated steel

Note on harmful gas resistance: A special coating on the LEDs makes the product more resistant to harmful gases.

Note LABS: These luminaries are suitable for use in paint processing operations outside the painting area or outside of solvent processing areas.

Note regarding refurbishing: When replacing T16/T26 gear trays with LED gear trays, two safety clamps each are to be mounted to secure the gear tray in the trunking (see trunking accessories).

Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. A possible restriction of the area of application in the food industry can be found in the food certificate.
