LYV4-A1407DAFSW840M4S0400 / 0637991SW
Product Description
Ceiling light of the RIDI LYV product family. RIDI LYV is designed for use in educational institutions and offices. Optical control by Lens, beam pattern symmetric, medium beam, light emission direct. Linear LED module, light colour 840, standard colour tolerance (SDCM) < 3 SDCM, lamp Replacement by specialist. Luminous flux adjustable stepless Rated service life L80B50 (tq = 25°C) 100.000 h . Housing made of Aluminium, black, similar to RAL 9005, protection rating IP20. Cover made of PMMA clear. With electronic electrical component. Replacement by specialist possible. Rated power 31.0 W, rated voltage 220 - 240 V AC/DC 50 - 60 Hz, protection class I.
Order Information
| Item number | 0637991SW |
| GTIN | 4071222019404 |
General
| Product category | Ceiling light |
| Range of application | Office |
| Guarantee | 5 years |

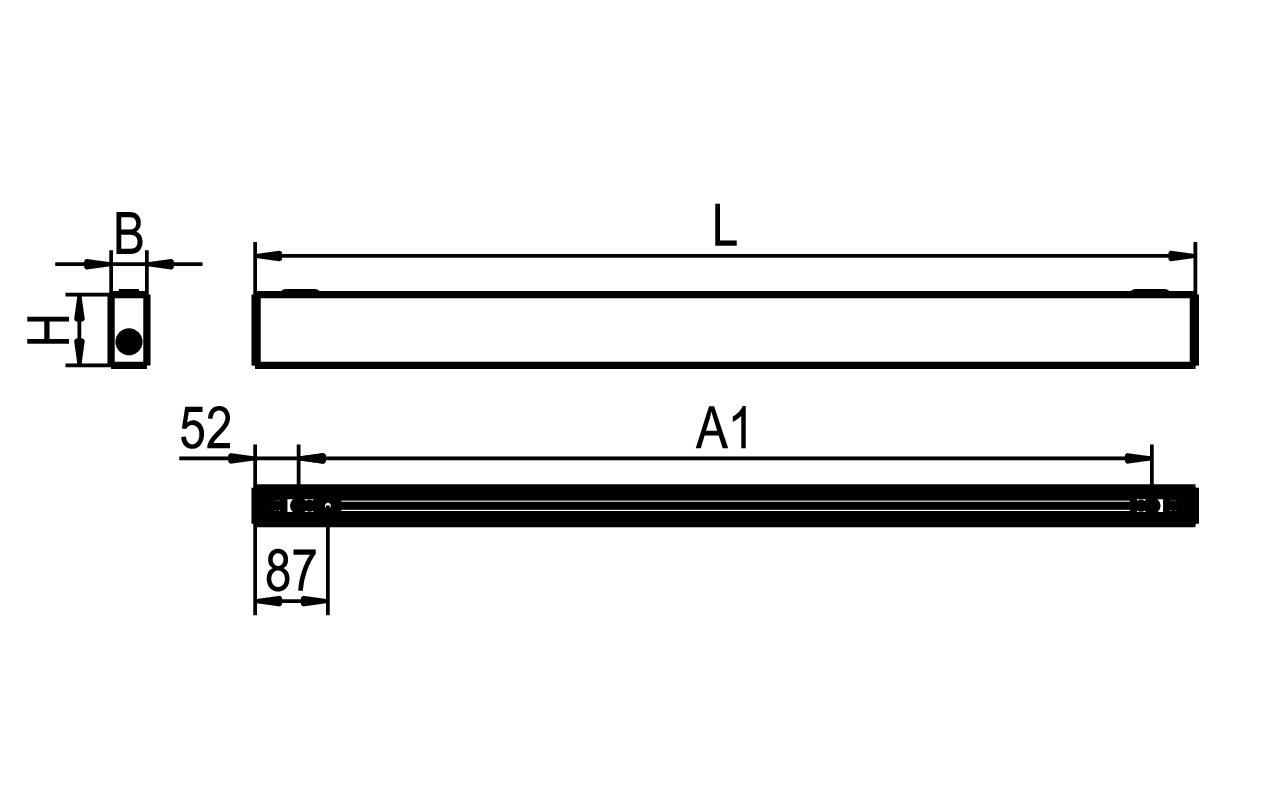

Dimensions
| Dimension L | 1407 mm |
| Dimension B | 43 mm |
| Dimension H | 85 mm |
| Net weight | 0.040 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 1.5–2.5 mm² |
| Adjustability | static |
Housing
| Colour | black, similar to RAL 9005 |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 31.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Lens |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | medium beam |
| UGR class | ≤ 16 |
| Rated luminous flux | 3920 lm |
| Luminaire efficiency | 126 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Farbwiedergabeindex R9 | 0 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 80.000 h |
