LYV4-A1418FLFSW840MPS0350 / 0627996SW
Product Description
Ceiling light of the RIDI LYV product family. RIDI LYV is designed for use in educational institutions and offices. Optical control by Cover microprismatic, beam pattern symmetric, wide beam, light emission direct. Linear LED module, light colour 840, standard colour tolerance (SDCM) < 3 SDCM, lamp Replacement by specialist. Luminous flux adjustable in steps Rated service life L80B50 (tq = 25°C) 100.000 h . Luminous flux in steps adjustable from 3380 - 5660 lm. Housing made of Aluminium, black, similar to RAL 9005, protection rating IP20. Cover made of PMMA clear. With electronic electrical component. Replacement by specialist possible. Rated power 24.0 W, rated voltage 220 - 240 V AC/DC 50 - 60 Hz, protection class I.
Order Information
| Item number | 0627996SW |
| GTIN | 4071222019695 |
General
| Product category | Ceiling light |
| Range of application | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1418 mm |
| Dimension B | 43 mm |
| Dimension H | 85 mm |
| Dimension A1 | 1313 mm |
| Net weight | 0.040 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 1.5–2.5 mm² |
| Adjustability | static |
Housing
| Colour | black, similar to RAL 9005 |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA clear |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 24.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Cover microprismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 3380 lm |
| Maximum rated luminous flux | 3380 - 5660 lm |
| Luminaire efficiency | 141 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Farbwiedergabeindex R9 | 0 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 80.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0204003 -
ZRO RAHMENÖFFNER
|
Tool for easy opening of the light frame |
|
|
Ceiling light of the RIDI LYV product family. RIDI LYV is designed for use in educational institutions and offices. Optical control by Cover microprismatic, beam pattern symmetric, wide beam, light emission direct. Linear LED module, light colour 840, standard colour tolerance (SDCM) < 3 SDCM, lamp Replacement by specialist. Luminous flux adjustable in steps Rated service life L80B50 (tq = 25°C) 100.000 h . Luminous flux in steps adjustable from 3380 - 5660 lm. Housing made of Aluminium, black, similar to RAL 9005, protection rating IP20. Cover made of PMMA clear. With electronic electrical component. Replacement by specialist possible. Rated power 24.0 W, rated voltage 220 - 240 V AC/DC 50 - 60 Hz, protection class I.
Order Information
| Item number | 0627996SW |
| GTIN | 4071222019695 |
General
| Product category | Ceiling light |
| Range of application | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1418 mm |
| Dimension B | 43 mm |
| Dimension H | 85 mm |
| Dimension A1 | 1313 mm |
| Net weight | 0.040 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 1.5–2.5 mm² |
| Adjustability | static |
Housing
| Colour | black, similar to RAL 9005 |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA clear |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 24.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Cover microprismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 3380 lm |
| Maximum rated luminous flux | 3380 - 5660 lm |
| Luminaire efficiency | 141 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 80.000 h |
Download Center

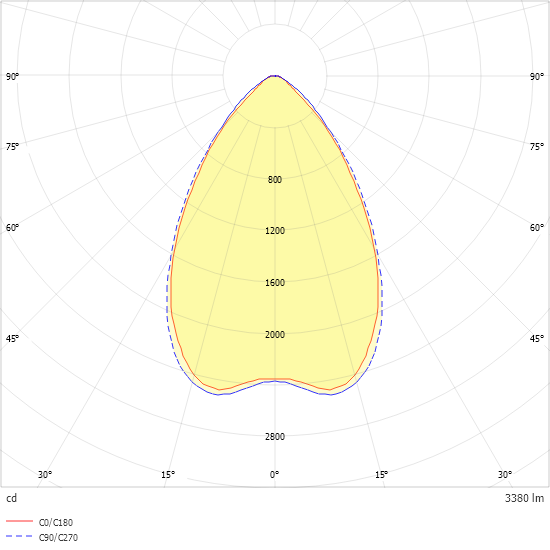

Light distribution curve
