LYV7-A2258DAFWS840O0800 / 0638019
Product Description
Ceiling light of the RIDI LYV product family. RIDI LYV is designed for use in educational institutions and offices. Optical control by Opal cover, beam pattern symmetric, wide beam, light emission direct. Linear LED module, light colour 840, standard colour tolerance (SDCM) < 3 SDCM, lamp Replacement by specialist. Luminous flux adjustable stepless Rated service life L80B50 (tq = 25°C) 100.000 h . Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP20. Cover made of PC opal. With electronic electrical component. Replacement by specialist possible. Rated power 66.0 W, rated voltage 220 - 240 V AC/DC 50 - 60 Hz, protection class I.
Order Information
| Item number | 0638019 |
| GTIN | 4071222020219 |
General
| Product category | Ceiling light |
| Range of application | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 2258 mm |
| Dimension B | 67 mm |
| Dimension H | 95 mm |
| Dimension A1 | 2154 mm |
| Net weight | 0.070 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 1.5–2.5 mm² |
| Adjustability | static |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PC opal |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 66.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |

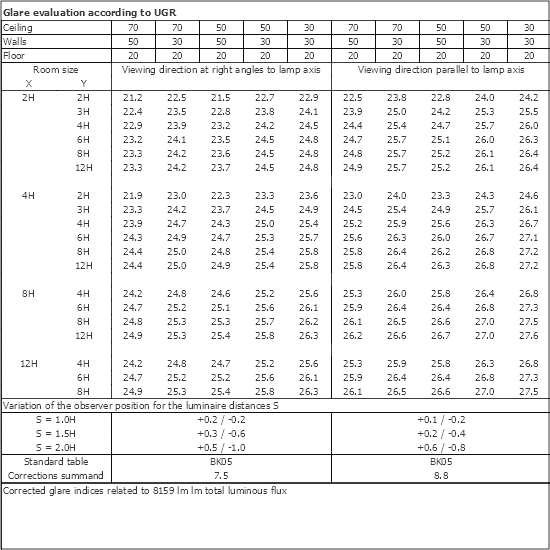

| UGR class | > 25 |
| Rated luminous flux | 8160 lm |
| Luminaire efficiency | 124 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Farbwiedergabeindex R9 | 0 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 80.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
