LYV7-PDI1138DAFSW840MPO0600 | 0638022SW
Product Description
Pendant luminaire of the RIDI LYV product family. {9836} Optical control by Microprismatic cover with an opal diffuser, beam pattern symmetric, wide beam, light emission direct/indirect. Linear LED module, light colour 840, standard colour tolerance (SDCM) < 3 SDCM, lamp Replacement by specialist. Luminous flux adjustable stepless Rated service life L80B50 (tq = 25°C) 100.000 h . Housing made of Aluminium, black, similar to RAL 9005, protection rating IP20. Cover made of PC clear (UV-stabilized). Mounting as a single luminaire. With electronic electrical component. Replacement by specialist possible. Rated power 45.0 W, rated voltage 220 - 240 V AC/DC 50 - 60 Hz, protection class I.
Scope of delivery: Luminaire including pre-fitted cable suspension, pre-fitted connection cable and canopy.
Order Information
| Item number | 0638022SW |
| GTIN | 4071222020233 |
| Delivery commitment | on demand |
General
| Product category | Pendant luminaire |
| Range of application | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1138 mm |
| Dimension B | 67 mm |
| Dimension H | 95 mm |
| Dimension A1 | 984 mm |
| Net weight | 3.390 kg |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 1.5–2.5 mm² |
| Adjustability | static |
Housing
| Colour | black, similar to RAL 9005 |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PC clear (UV-stabilized) |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 45.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Microprismatic cover with an opal diffuser |
| Light emission | direct/indirect |
| Light distribution | symmetric |
| Beam characteristics | wide beam |

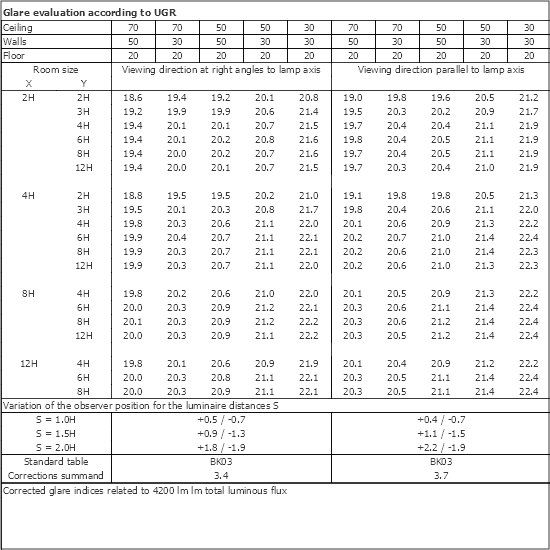

| UGR class | ≤ 22 |
| Rated luminous flux | 5850 lm |
| Luminaire efficiency | 130 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Farbwiedergabeindex R9 | 0 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 80.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
Tool
| Item number - Designation | Product Description | Download | Wishlist |
0204003 -
ZRO RAHMENÖFFNER
|
Tool for easily opening the light frame |
|
|
Pendant luminaire of the RIDI LYV product family. {9836} Optical control by Microprismatic cover with an opal diffuser, beam pattern symmetric, wide beam, light emission direct/indirect. Linear LED module, light colour 840, standard colour tolerance (SDCM) < 3 SDCM, lamp Replacement by specialist. Luminous flux adjustable stepless Rated service life L80B50 (tq = 25°C) 100.000 h . Housing made of Aluminium, black, similar to RAL 9005, protection rating IP20. Cover made of PC clear (UV-stabilized). Mounting as a single luminaire. With electronic electrical component. Replacement by specialist possible. Rated power 45.0 W, rated voltage 220 - 240 V AC/DC 50 - 60 Hz, protection class I.
Scope of delivery: Luminaire including pre-fitted cable suspension, pre-fitted connection cable and canopy.
Order Information
| Item number | 0638022SW |
| GTIN | 4071222020233 |
General
| Product category | Pendant luminaire |
| Range of application | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1138 mm |
| Dimension B | 67 mm |
| Dimension H | 95 mm |
| Dimension A1 | 984 mm |
| Net weight | 3.390 kg |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 1.5–2.5 mm² |
| Adjustability | static |
Housing
| Colour | black, similar to RAL 9005 |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PC clear (UV-stabilized) |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 45.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Microprismatic cover with an opal diffuser |
| Light emission | direct/indirect |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 22 |
| Rated luminous flux | 5850 lm |
| Luminaire efficiency | 130 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 80.000 h |
Download Center

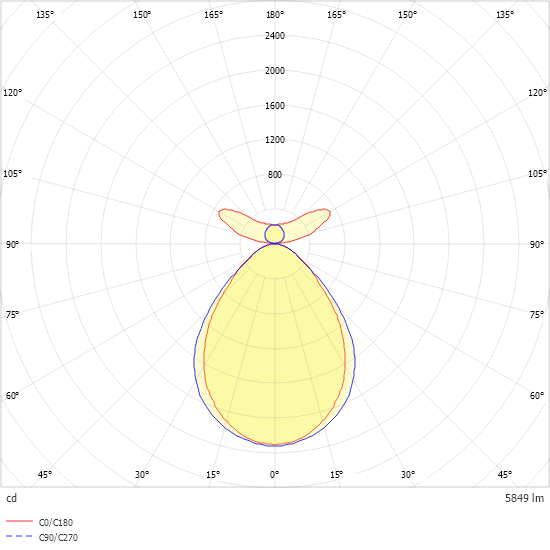

Light distribution curve
